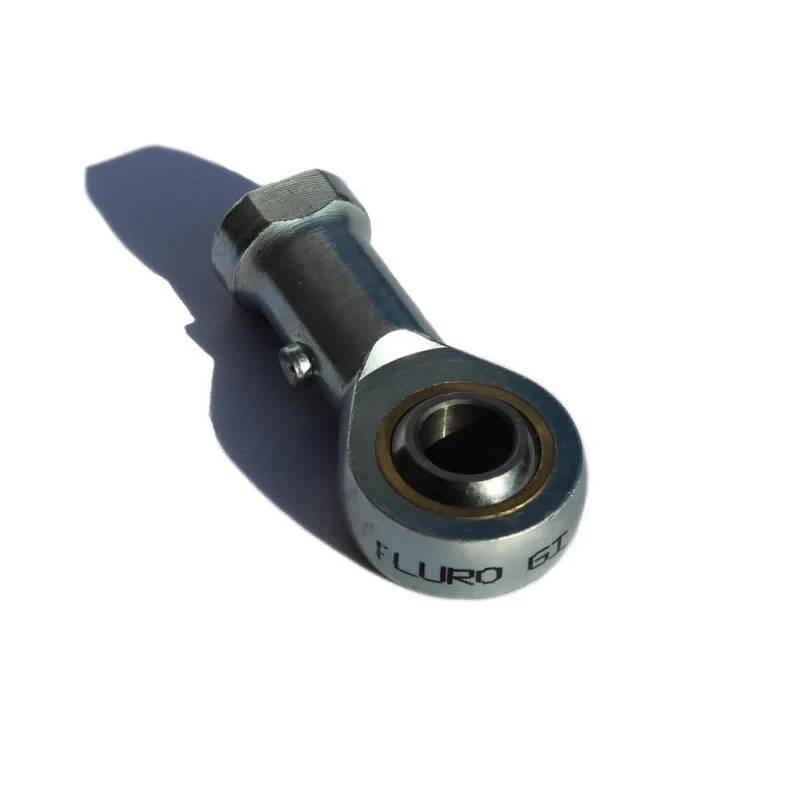

Fluro M24 x 2 Female Galvanised Steel Rod End, 25mm Bore Metric GIL25

Fluro GIL25 M24 x 2 Female Galvanised Steel Rod End features a precision-engineered 25mm bore suited for demanding mechanical and fluid power applications. The galvanised steel material provides excellent corrosion resistance and mechanical strength, making the rod end ideal for industrial, manufacturing, and HVAC machinery where durability is critical.

This rod end includes a metric M24 x 2 female connection thread with a left-hand thread direction, accommodating specific assembly needs. Its dynamic load rating of 35kN and static load rating of 68kN support both moving and stationary loads effectively. Operating temperature capabilities from -50°C to 200°C enable usage across various environmental conditions without mechanical failure.

The design incorporates a flush type grease fitting allowing regreasing directly through the housing for extended service life and maintenance ease. Measuring 124mm in overall width, this component ensures stability and compatibility with associated machinery parts.

Manufactured in Germany, the GIL25 model reflects high manufacturing standards and consistency. Although it lacks specific certifications or approvals, it adheres to metric thread standards relevant to the industry.

This rod end is commonly applied in construction machinery, agricultural equipment, automotive assemblies, and fluid power systems where reliable rotary bearing components are essential. Its versatility and high load ratings make it a dependable choice for both static and dynamic applications across industrial sectors.

Constructed from galvanised steel for corrosion resistance. Features a 25mm bore diameter suitable for various mechanical assemblies. Dynamic load rating of 35kN ensures reliable performance under stress. Static load rating of 68kN supports heavy-duty static loads.

Female M24 x 2 metric threaded connection with left-hand thread direction. Operating temperature range from -50°C to 200°C for diverse environmental conditions. Equipped with a flush type grease fitting for easy regreasing through the housing.

Overall width measures 124mm to accommodate rigorous industrial use. Manufactured in Germany ensuring quality and precision standards. No specific certifications or standards approvals included with the product. Explore more precision Rod Ends and rotary bearing components in the Industrial Tools & Equipment category on EnvMart.
