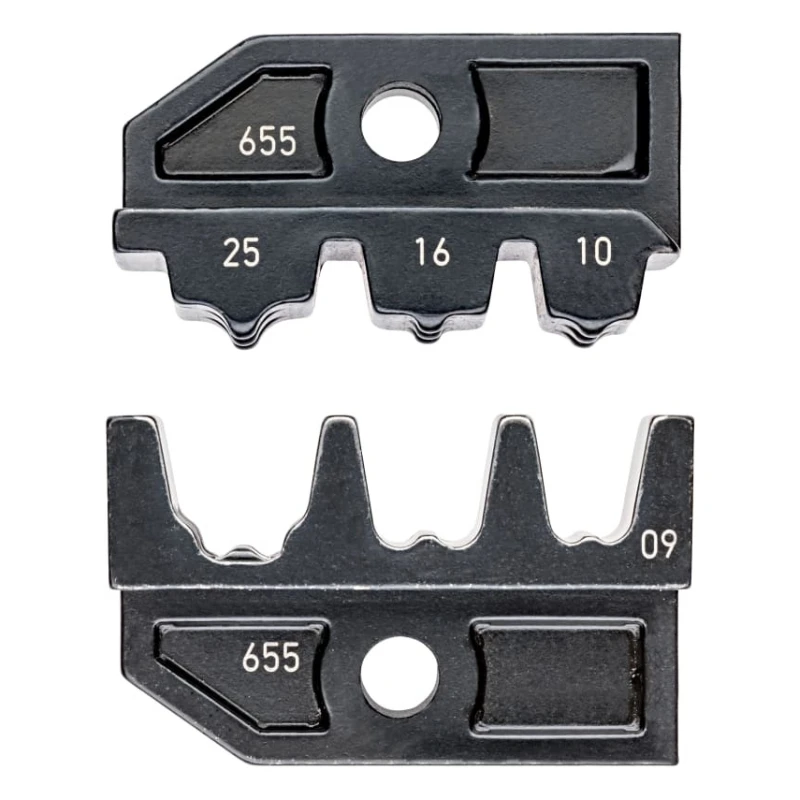

Knipex Coaxial Type Crimp Die Set Black 3-Port for Insulated and Non-Insulated Cable Ends 10/16/25 mm² 97 49 09

Knipex 97 49 09 Coaxial Type Crimp Die Set is a high-quality accessory designed for crimping insulated and non-insulated cable ends with wire sizes 10, 16, and 25 mm² (AWG 7, 5 and 3). Manufactured in Germany, this set is built using special oil-hardened vanadium chrome electric steel for excellent durability and resistance to wear.

They are secured firmly with screws, facilitating easy replacement and maintenance.

This die set is intended for use with the Knipex universal crimping tool model 97 43 200 (RS 336-8084), which supports interchangeable dies for a wide variety of crimping applications, providing users with a versatile and cost-effective solution. The crimping tool incorporates a virtually parallel crimping mechanism with factory-calibrated and adjustable crimping pressure, enabling consistently high crimp quality and reduced operator fatigue.

Weighing about 40 to 50 grams, the compact and lightweight design enhances ease of use. Proper maintenance involves regular lubrication of moving parts using a light non-mineral oil every 10,000 cycles, especially when the tool is exposed to dirt or contaminants, ensuring long service life and reliable performance.

Using a high-quality crimping die set like Knipex 97 49 09 ensures gas-tight and corrosion-resistant electrical connections by eliminating voids between wire strands and terminal lugs, thus preventing heat buildup and electrical failures. This product is well-suited for industrial, electrical, and mechanical workshop environments requiring reliable cable termination and maintenance.

The set includes 3 ports suitable for wire end ferrules of AWG 7, 5, and 3 gauge sizes. Dies are made of oil-hardened vanadium chrome electric steel ensuring durability and long service life. The dies are fixed with a screw and machined with engraved cable sections for easy identification.

Compatible with Knipex universal crimping tool model 97 43 200, supporting almost 1,000 different crimps. Offers a parallel crimping mechanism for consistently high crimp quality with adjustable calibrated crimping pressure.

Lightweight design with a total weight of approximately 40 to 50 grams for ease of handling. Maintenance requires regular lubrication with light non-mineral oil every 10,000 cycles or when exposed to contaminants. Explore more professional hand tool accessories and crimping solutions in EnvMart's Industrial Tools & Equipment - Hand Tools category.
