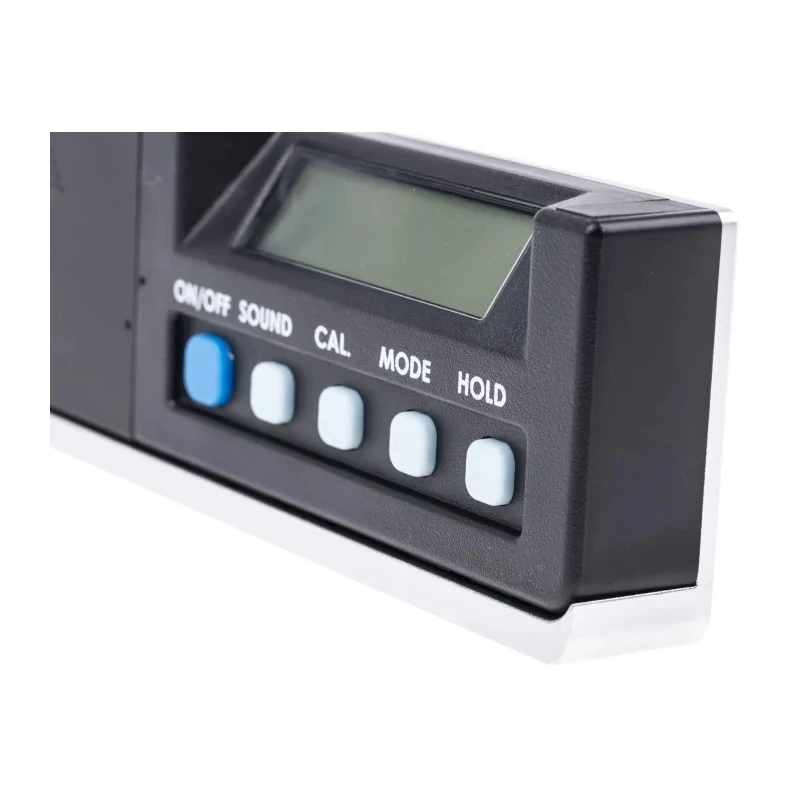

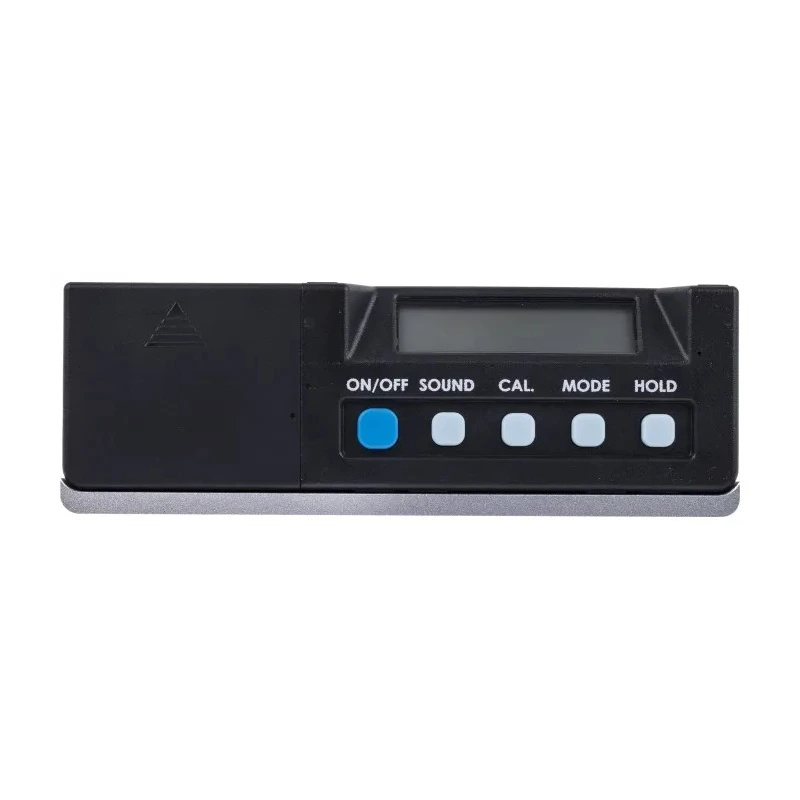

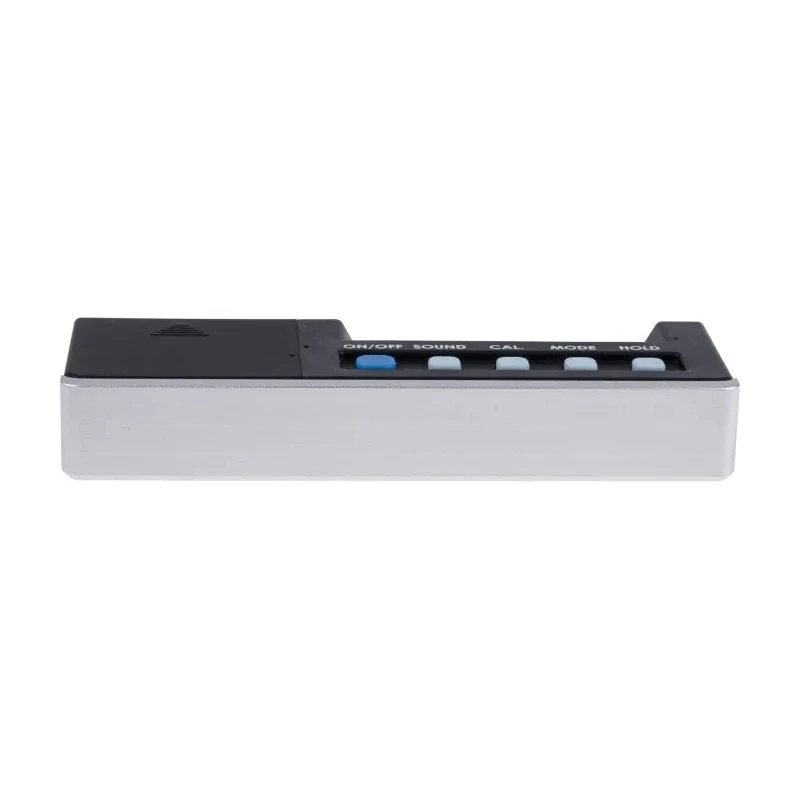

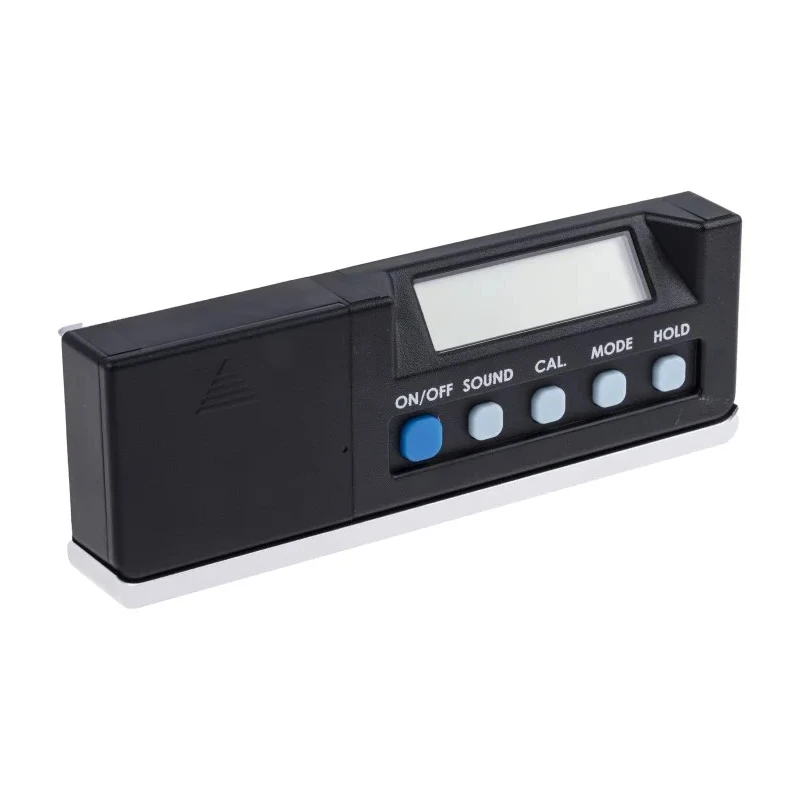

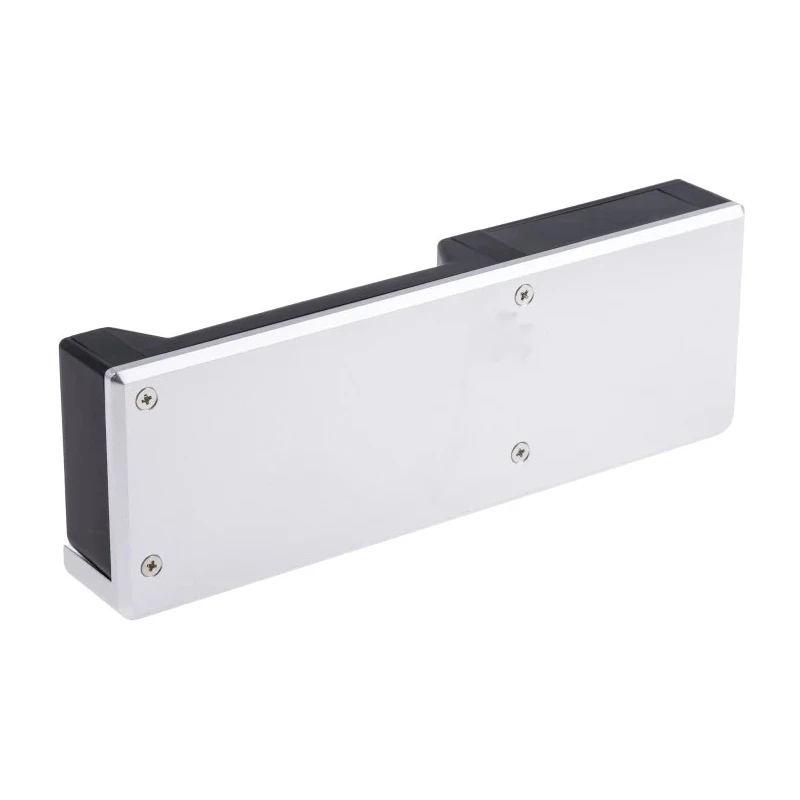

RS PRO 175 mm Digital LCD Inclinometer with ±0.2° Accuracy and Acoustic Signal 667-3916

RS PRO 667-3916 is a high-precision digital LCD inclinometer designed for measuring gradients and angles with excellent accuracy of ±0.2°. Ideal for ensuring both horizontal and vertical surfaces are level, it features a clear LCD for easy reading and acoustic signals to indicate when the device is perfectly level at 0° or 90°.

The instrument offers a hold function to freeze the displayed value, facilitating measurements in awkward or hard-to-reach places. Users can select measurement units including degrees (°), percentage (%), or inches/feet (in/ft) to suit diverse applications. Featuring alignment arrows, the inclinometer guides users to achieve correct leveling with visual prompts.

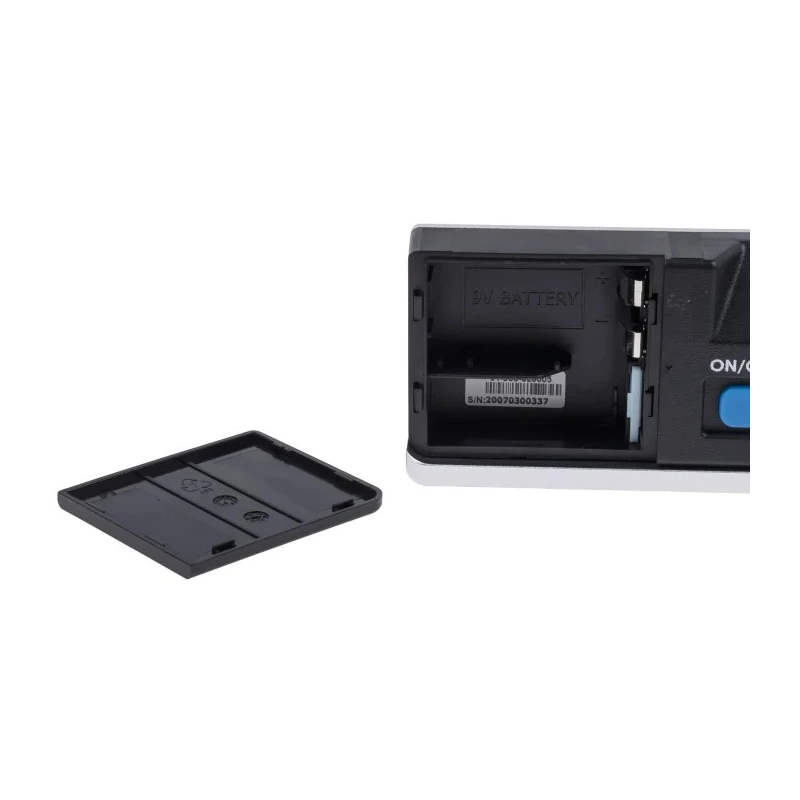

Measuring 175 mm in length with a slim profile (54 mm height and 21.4 mm width), the device is compact and portable. It operates on a standard 9V battery (not supplied), and includes a low battery indicator to alert users in advance. The device automatically switches off after six minutes of inactivity, preserving battery life.

This digital inclinometer covers a full 360° range divided into four 90° quadrants and provides a resolution of 0.1°. With an accuracy of ±0.1° at critical angles of 0° - 10° and 80° - 90°, and ±0.2° at all other angles, it is suitable for professional use in carpentry, stonemasonry, bricklaying, surveying, and DIY projects.

Typical industrial and commercial applications include precision levelling for installation of shelves, machinery setup, building construction walls, and surveying tasks. The device complies with RoHS standards and is manufactured in Taiwan, Province Of China.

RS PRO inclinometers are valued for their reliability and ease of use in mechanical, fluid power, hand tools, and measurement segments. This model ensures efficient, accurate, and user-friendly levelling in a wide range of technical and construction tasks.

Measures gradients and angles quickly and accurately. Shows alignment arrows to indicate leveling direction. Hold function to freeze current reading on the display. Selectable units: degrees, percentage, or inches/feet. Automatic shutdown after six minutes of inactivity.

Length of 175 mm for convenient handling. Operates on a 9V battery (not included). Low battery indicator for timely battery replacement. Wide 360° measurement range in four 90° quadrants. Compact size: 175 mm length, 54 mm height, 21.4 mm width.
