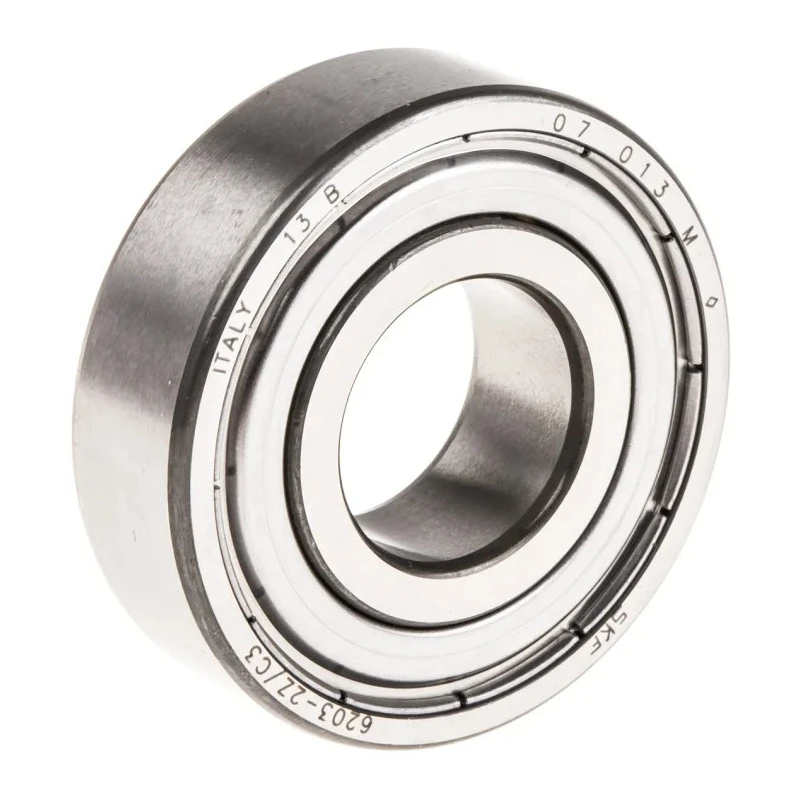

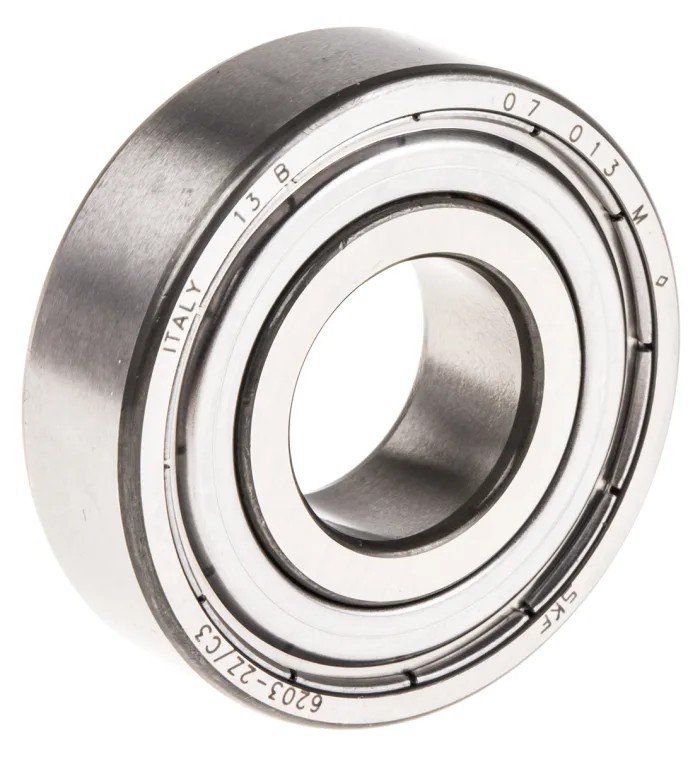

SKF Single Row Deep Groove Ball Bearing 17 mm ID, 40 mm OD, 12 mm Width, Shielded C3 Clearance 6203-2Z/C3

The SKF 6203-2Z/C3 is a high-quality single row deep groove Ball Bearing engineered for versatile industrial use with a 17 mm inside diameter and 40 mm outside diameter geometry, accompanied by a 12 mm race width. This shielded bearing is designed to prevent ingress of dust and retain lubrication, thereby extending operational life and reducing maintenance.

It features a C3 internal clearance greater than standard, which accommodates shaft expansions in high temperature conditions up to 350°C without compromising performance. The bearing's sheet metal cage and steel balls offer excellent resistance to corrosion and mechanical stress, making it suitable for demanding environments.

With a static load rating of 4.75 kN and dynamic load rating of 9.95 kN, the bearing supports heavy radial and axial loads for applications ranging from medical technology devices to household appliances and industrial assembly lines.

The limiting speed of 38,000 RPM allows for use in high-speed machinery, making it ideal for various rotational equipment and electric motors.

This bearing has a parallel bore type and plain race type, enhancing its adaptability in mechanical assemblies where precision and reliability are critical. It is manufactured in Italy, assuring quality and manufacturing standards compliance.

This bearing features a 12 mm race width and is shielded for dust protection and lubricant retention. Equipped with a C3 internal clearance allowing for thermal expansion during high temperature operations up to +350°C. Constructed with steel balls and a sheet metal cage providing robust corrosion resistance and durability.

Static load rating of 4.75 kN and dynamic load rating of 9.95 kN support both stationary and rotating heavy loads effectively. Suitable for industrial, medical technology, household appliance, and assembly line applications.

Limit speed capacity of up to 38,000 RPM ensures high speed performance.

The SKF 6203-2Z/C3 bearing is an essential component for industrial, laboratory, HVAC, manufacturing, and commercial applications requiring high reliability and performance. Browse EnvMart's extensive selection of bearings and rotary components for your engineering needs.
