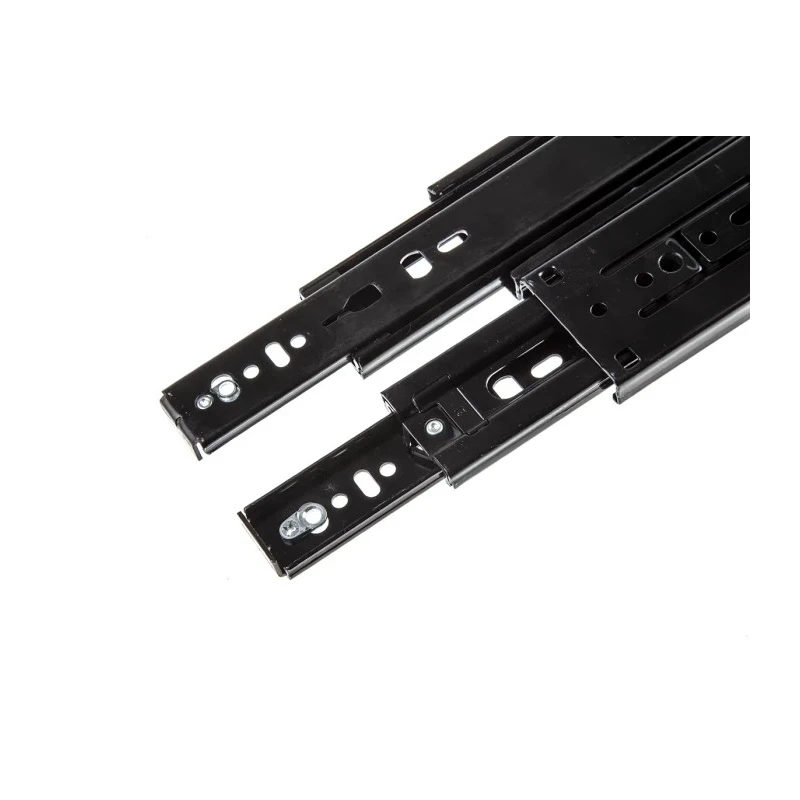

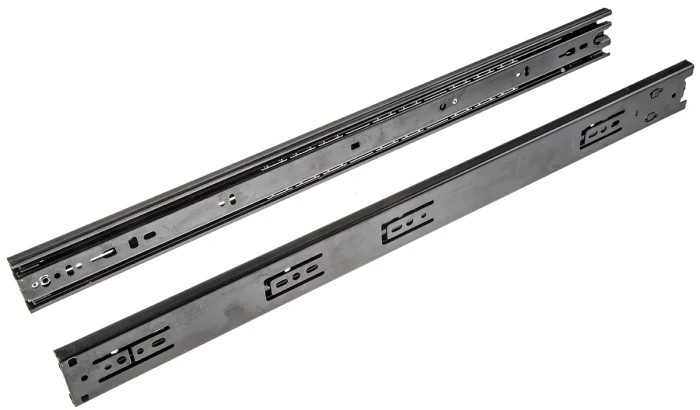

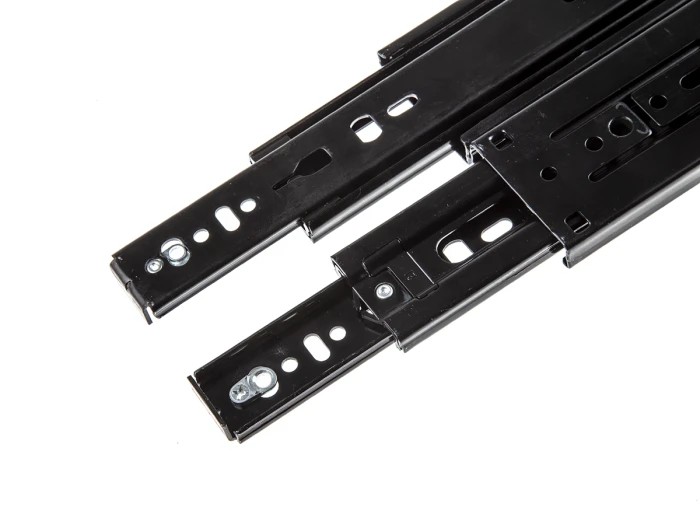

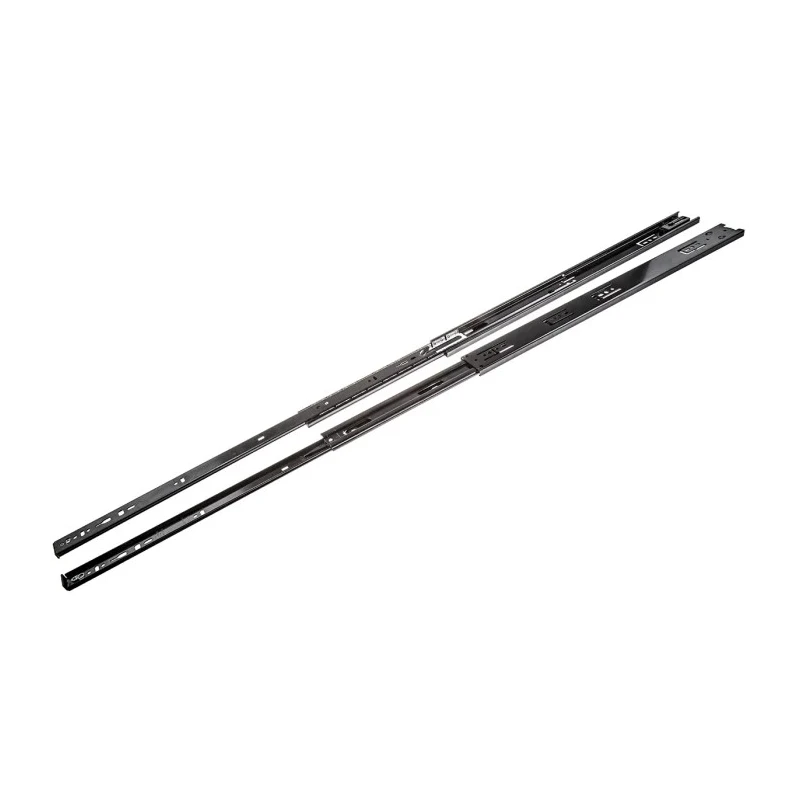

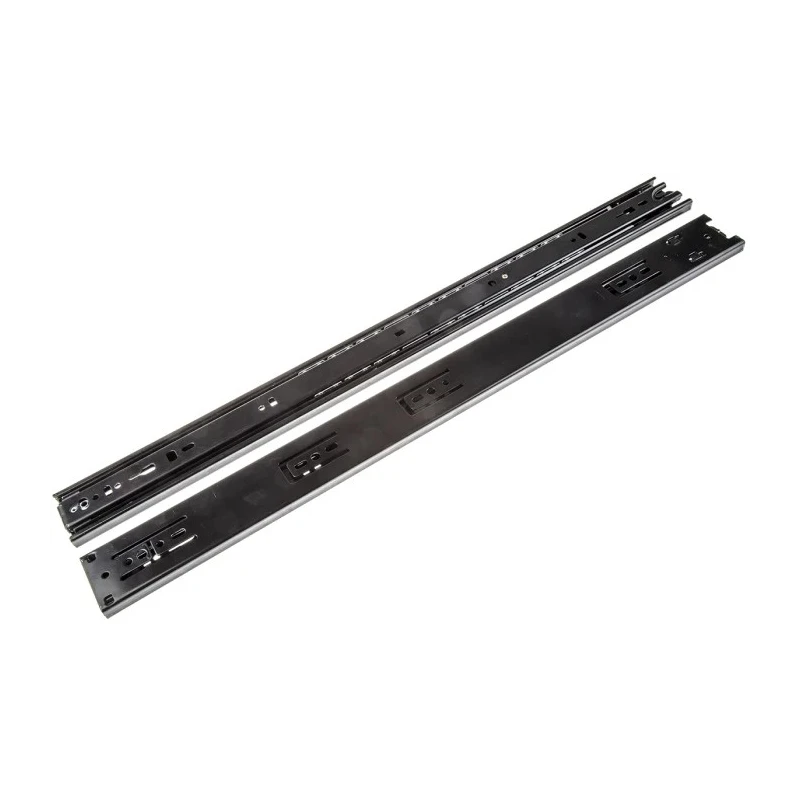

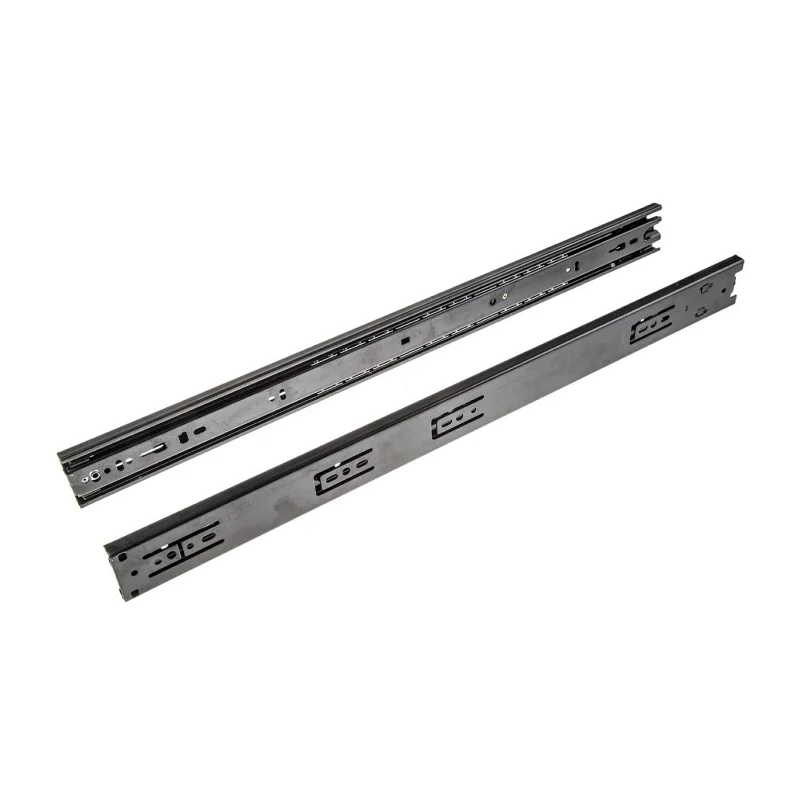

Accuride Self-Closing Steel Drawer Slide Zinc Plated 50kg Load 550mm DB 3832-0055SC
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Accuride |
| Material | Steel |
| Model | DB 3832-0055SC |
| Finish | Zinc Plated |
| Series | DB3832 |
| Maximum Load | 50kg |
| Closing Type | Self-Closing |
| Overall height | 45.7mm |
| Closed Length | 550mm |
| Travel Length | 559mm |
Key Features
- Self-closing mechanism ensures secure drawer closure.
- Smooth and quiet ball bearing action for reliable operation.
- Full 100% extension with 559mm travel length.
- Durable zinc plated steel material with corrosion resistance.
- Hold-in detent feature keeps drawer firmly closed.
- Front disconnect lever allows easy drawer removal.
- Cam adjuster provides 3.2 mm adjustment for precise alignment.
- Designed for general indoor storage cabinet applications.
Product Description
Accuride DB 3832-0055SC self-closing steel drawer slide features high-quality zinc plated steel construction designed for light-duty indoor applications. With a maximum load rating of 50 kg, this drawer slide offers durable and smooth operation for cabinetry and general-purpose storage drawers.
The DB 3832 series provides a full 100% extension capability with a travel length of 559 mm and a closed length of 550 mm. The smooth ball bearing mechanism ensures quiet and reliable functionality, aided by a self-cleaning ball retainer that protects the raceways from debris and extends service life.
The self-closing spring attachment returns the drawer securely into the cabinet, preventing bouncing and ensuring safety. A hold-in detent feature keeps the drawer firmly closed until additional pressure is applied, avoiding accidental openings. The front disconnect lever allows easy removal of the drawer from the main assembly without disassembly.
For fine adjustments, a cam adjuster on the front allows a 3.2 mm alignment correction on the drawer front, providing precise installation flexibility. These slides can be fitted with M4 screws, 4 mm wood screws, or 6 mm Euro screws (fittings not included).
This product is engineered for long-term use with tested durability through 10000 opening and closing cycles at full load. It is suitable for industrial, commercial, and residential cabinetry applications where reliable and smooth drawer movement is essential.
Self-closing with minimal closing and opening force. Durable steel with zinc plating for corrosion protection. 100% extension capability for full drawer access. Self-cleaning ball retainer maintains smooth action. Hold-in detent for secure drawer closure.
Front disconnect for easy drawer removal. Cam adjustment for drawer front alignment. Rated for 50 kg maximum load at 10000 cycles. Designed for indoor storage cabinet applications. Manufactured in Mexico ensuring quality standards.
Explore more industrial-grade Drawer Slides and material handling equipment with EnvMart's comprehensive product portfolio.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load capacity of this model is 50 kg.
This drawer slide offers a travel length of 559 mm, allowing for full extension.
It features a self-closing mechanism that ensures the drawer returns securely into the cabinet after use.
The drawer slide is made of steel with a zinc plated finish for corrosion resistance.
The closed length is 550 mm and the overall height is 45.7 mm.
The hold-in detent feature keeps the drawer firmly closed until additional pressure is applied, preventing accidental openings.
Yes, it includes a front disconnect lever that allows for easy removal of the drawer without disassembly.
This model includes a cam adjuster that allows for a 3.2 mm adjustment for precise alignment during installation.
It is tested for durability through 10,000 opening and closing cycles at full load.
This drawer slide is manufactured in Mexico, ensuring adherence to quality standards.
It can be fitted with M4 screws, 4 mm wood screws, or 6 mm Euro screws, although fittings are not included.
It is designed for general indoor storage cabinet applications, suitable for industrial, commercial, and residential use.
