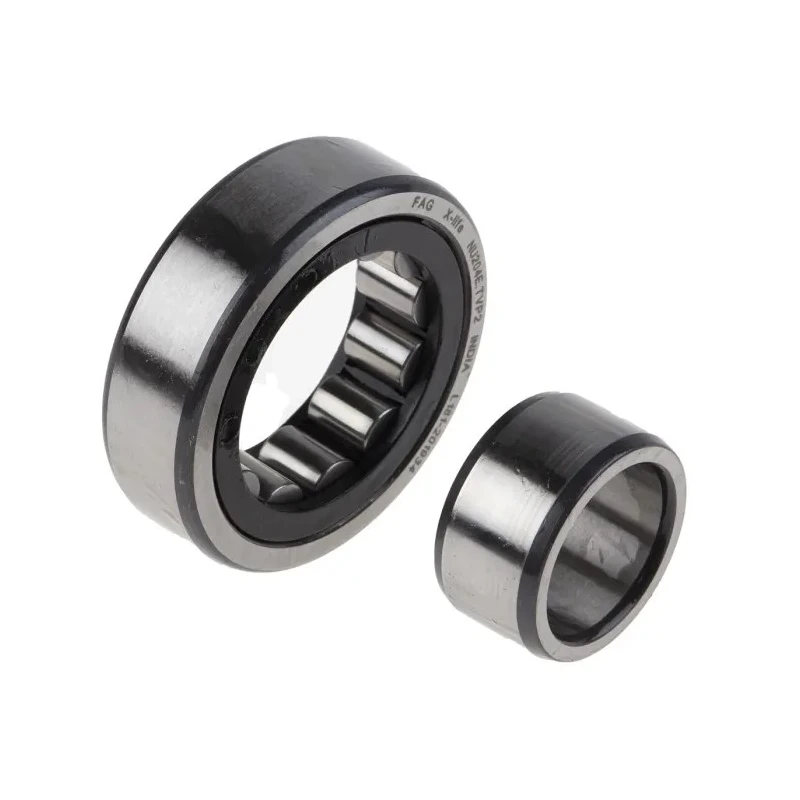

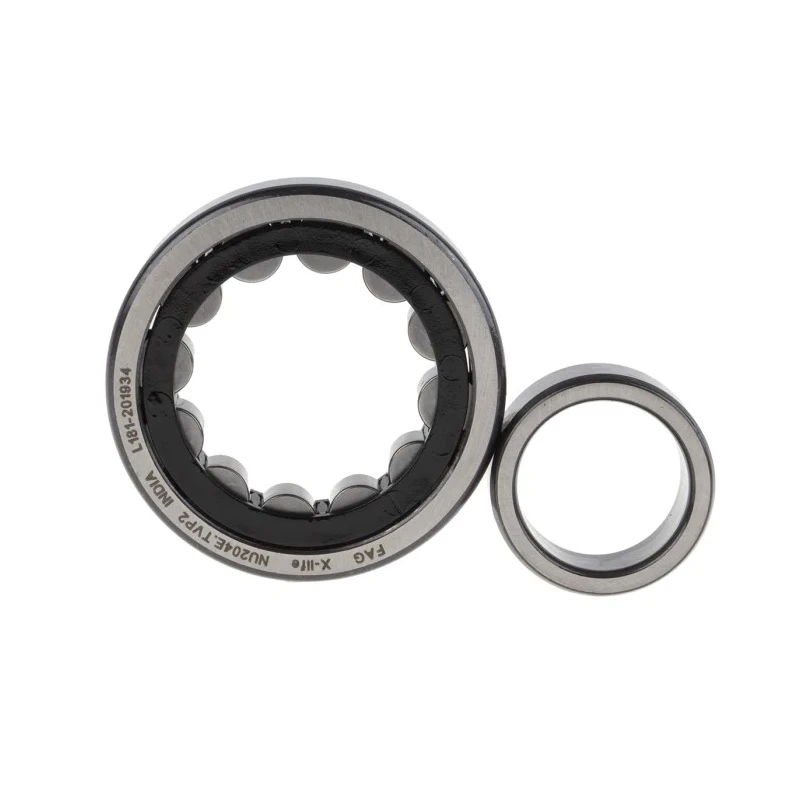

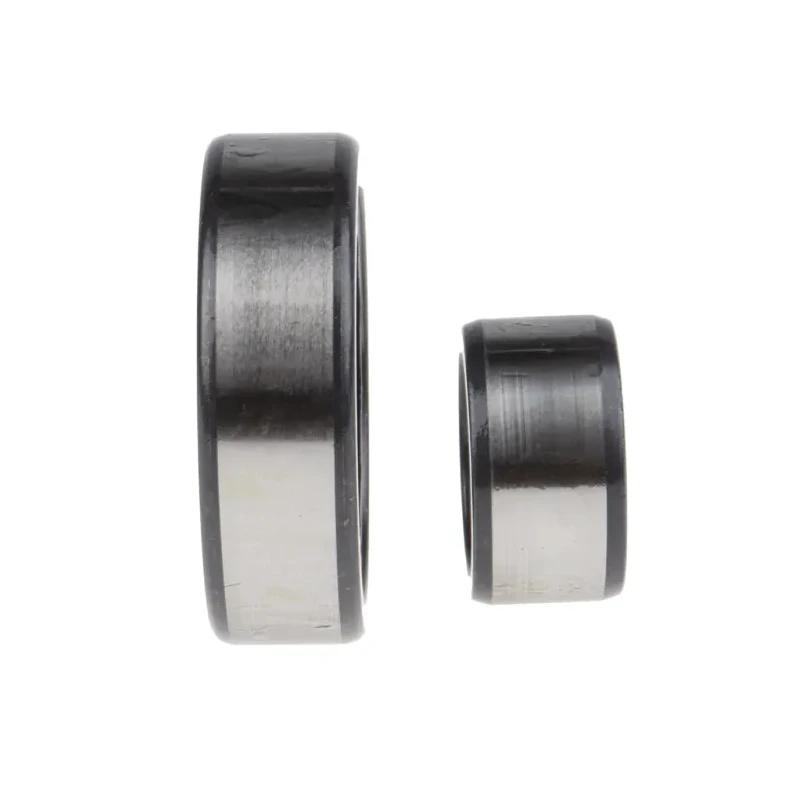

FAG Cylindrical Roller Bearing 20 mm ID, 47 mm OD, Race Width 14 mm, Open End Type NU204-E-XL-TVP2

FAG NU204-E-XL-TVP2 cylindrical roller bearing features a 20 mm inside diameter and a 47 mm outside diameter, with a race width of 14 mm. It is designed specifically to support high radial loads without supporting axial loads, making it ideal for heavy-duty industrial machinery. The bearing incorporates a glass fibre reinforced polyamide cage (PA66) which prevents contact between rollers, reducing friction, vibrations, and noise while contributing to lighter weight and quieter operation compared to traditional brass cages.

The bearing's press fit inner and outer rings enable it to withstand significant temperature differentials, and the C3 radial internal clearance allows for thermal expansion during operation. It is constructed from low-alloy, through-hardened chromium steel, enhancing durability, heat tolerance, and resistance to deformation under heavy load conditions.

The non-locating design with two ribs on the outer ring and no ribs on the inner ring permits axial displacement of the rings from the central position, accommodating shaft movement without undue stress. The open end of the bearing and the removable inner ring simplify lubrication maintenance, improving serviceability.

This cylindrical roller bearing is capable of operating at speeds up to 19200 rpm and temperatures up to 120°C, making it suitable for industrial, manufacturing, HVAC, and mechanical machinery applications that demand high load capacity and reliability. The bearing's design enhances operational safety and extends equipment lifetime while saving energy due to low friction.

Designed for high radial loads with cylindrical rollers to reduce friction. Glass fibre reinforced polyamide cage reduces vibration and noise. Press fit inner and outer rings accommodate thermal expansion. Maximum operating temperature of 120°C for durability under heat.

Non-locating bearing with removable inner ring for easy lubrication. C3 radial clearance designation for increased radial slack. Made of low-alloy, through-hardened chromium steel for strength. Suitable for industrial applications requiring extended product life and energy efficiency.

High limiting speed of 19200 rpm for high-speed operations. Explore the FAG bearing range and other high-performance Roller Bearings on EnvMart for your mechanical machinery and equipment needs.
