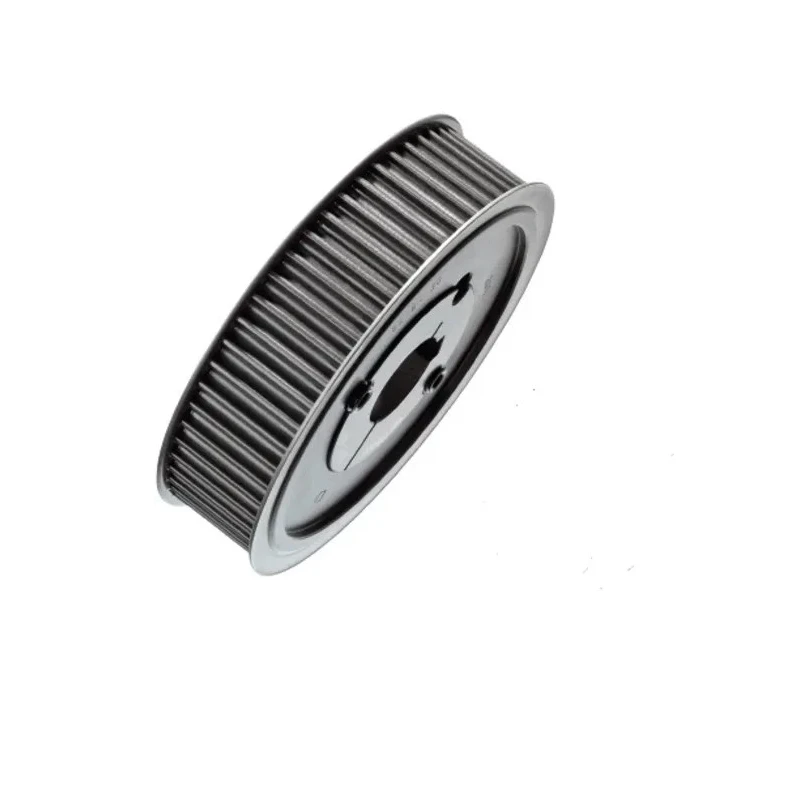

OPTIBELT Timing Belt Pulley Steel 20 mm 8 mm Pitch, 22 Tooth TB 22 8M 20

OPTIBELT TB 22 8M 20 Timing Belt Pulley is engineered for precision mechanical power transmission, featuring a robust steel construction that offers durability and resistance under demanding industrial conditions.

This timing belt pulley features 22 teeth with an 8 mm pitch, designed to engage seamlessly with timing belts that match these specifications. The pulley accepts belts up to 20 mm in width, ensuring secure belt seating and optimized power transfer.

The pulley includes a flange with a diameter of 60 mm to retain the belt during operation and prevent slippage. The tapered bore design utilizes a 5F taper bushing type 1008, enabling precise mounting and alignment on shafts, facilitating maintenance and replacement.

The outside diameter of the pulley is 54.65 mm, while the pitch circle diameter stands at 56.02 mm, adhering to strict manufacturing tolerances to guarantee compatibility and consistent performance within mechanical systems.

This product complies with RoHS standards, reflecting adherence to environmental safety and manufacturing quality requirements.

The OPTIBELT TB 22 8M 20 timing belt pulley is suitable for use in industrial machinery, manufacturing equipment, HVAC systems, conveyor applications, and various mechanical power transmission scenarios where precision and durability are paramount.

Constructed from durable steel material for longevity and strength. Equipped with 22 teeth and an 8 mm pitch to fit compatible timing belts. Acceptable belt width is 20 mm, ensuring optimal belt engagement. Flanged design with 60 mm flange diameter for secure belt retention.

Tapered bore type with 5F taper bushing 1008 for easy installation and alignment. Outside diameter measures 54.65 mm with pitch circle diameter of 56.02 mm for accurate fitment. Meets RoHS standards, ensuring compliance with environmental and safety regulations.

This pulley is a dependable component for mechanical power transmission assemblies, optimized for industrial and manufacturing operations requiring high precision and reliable torque transfer.
