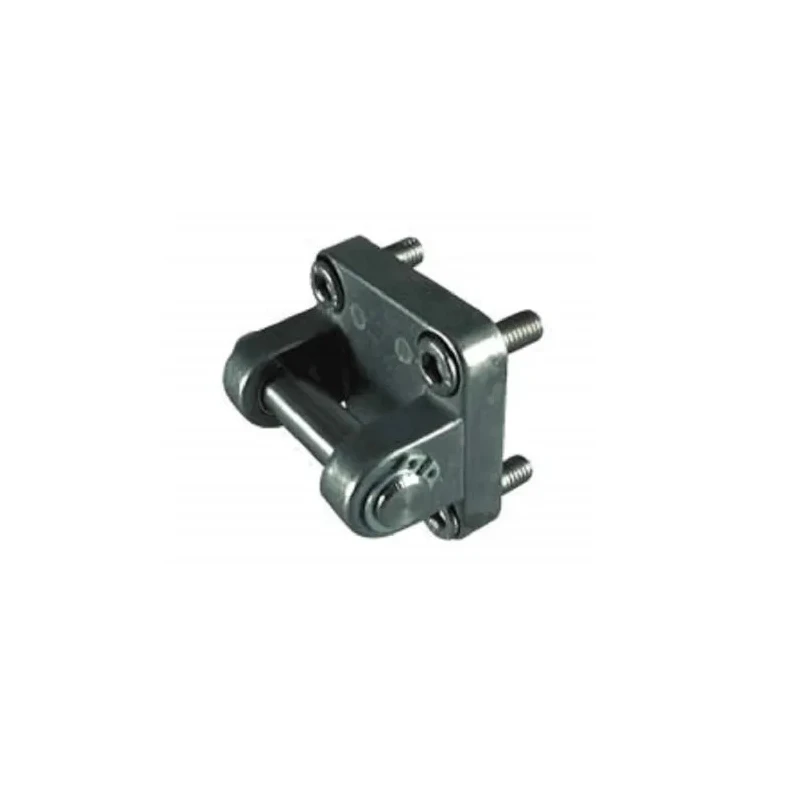

Norgren Rear Hinge for Pneumatic Cylinders 100mm Bore Size, 1-16 Bar, QA/8100/24

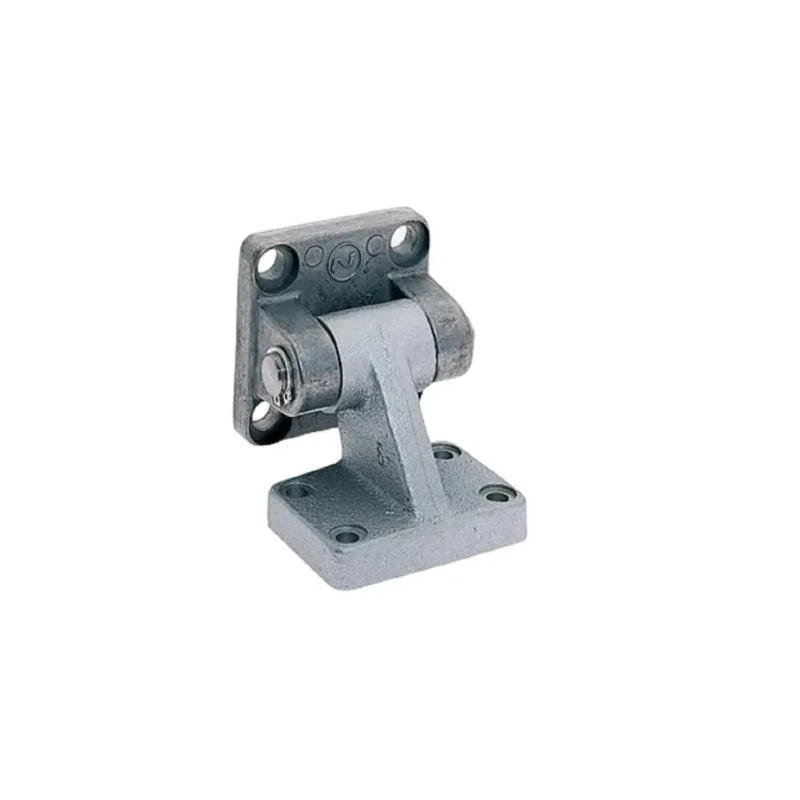

Norgren QA/8100/24 rear hinge is a robust pneumatic cylinder accessory compatible with 100mm bore size QA series cylinders, designed for operating pressures from 1 to 16 bar. It facilitates flexible positioning by allowing the attached cylinder to rotate up and down via a hinged bracket. The rear hinge supports reliable operation within a temperature range of -20°C to +80°C, making it suitable for diverse industrial environments.

This rear hinge includes a piston rod locknut and features four pre-drilled, countersunk holes ensuring easy and secure mounting without interference with movement.

The product is particularly beneficial for pneumatic systems in conveyor setups, food and beverage processing lines, laboratory equipment, printing presses, and automotive manufacturing where controlled cylinder movement and stable mounting are critical.

Compatible with QA series pneumatic cylinders with 100mm bore. Range of operating pressure from 1 to 16 bar. Flexible hinged bracket for controlled cylinder rotation. Four countersunk pre-drilled holes for mounting. Temperature operating range from -20°C to +80°C.

Conforms to VDMA 24562, NFE 49-003-1, and ISO 6431 standards. Includes a piston rod locknut in the kit. Origin: Germany.

This rear hinge ensures that pneumatic components are securely attached within industrial applications, preventing unwanted movement and enabling precise operational control. It is a vital accessory in pneumatic cylinder assemblies and actuator sets used across various manufacturing and processing industries.
