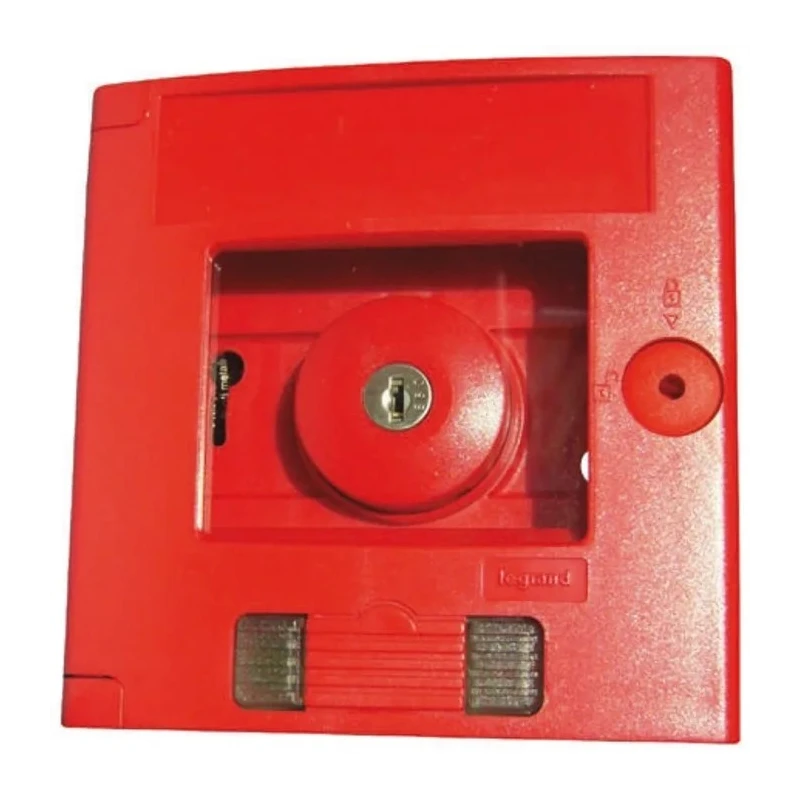

Legrand Red Break Glass Call Point Snatch-off Plastic Window Operated Mains-Powered 0 380 09

Legrand 0 380 09 Break Glass Call Point is a mains-powered safety device used for emergency fire alarm activation in industrial, commercial, and residential settings. The bright red polycarbonate box houses a robust glass element behind a snatch-off plastic window, ensuring ease of use and immediate accessibility in fire emergencies.

This call point features a hinged glass door that can be securely locked with key no. 850 to prevent unauthorized access or accidental activation, promoting site safety and security.

It allows flexible cable management with three cable entries compliant with PE ISO 20 standards that can be accessed from above or below due to its reversible base. Additional entries include two 20 mm diameter rear ports and two side entries designed for mouldings 20 x 12.5 mm and 32 x 12.5 mm.

The electrical integrity is supported by one normally closed (N/C) and one normally open (N/O) contact, referenced 248 32 and 248 31 respectively, suitable for various voltage operations.

With an IP44 ingress protection rating, this unit withstands dusty and splashing water conditions, making it ideal for diverse environmental applications. The product dimensions measure 125 x 125 x 71 mm.

Indicator lights include green and red LEDs with long operational lifespans, providing clear visual feedback regarding system status. The device complies with NF C 15-100 standards, ensuring adherence to stringent fire safety regulations in France.

Electrical ratings include 230 Vac at 6 A, 400 Vac at 4.5 A, 48 Vdc at 1 A, and 24 Vdc at 1.5 A, with Class II double insulation and an IK07 rating for mechanical impact resistance, guaranteeing safety and durability under operational stresses.

Designed and manufactured in France, this product combines quality engineering with reliable performance for fire prevention safety systems. The unit is housed in a red polycarbonate box with a glass element for break activation.

Includes hinged glass door capable of being locked with key no. 850 for safety and security. Supports multiple cable entries including three for PE ISO 20 and two rear entries of 20 mm diameter. Equipped with 1 N/C contact ref. 248 32 and 1 N/O contact ref. 248 31 for electrical connection.

IP44 rated with dimensions of 125 x 125 x 71 mm, suitable for rugged environmental conditions. Indicator lights comprising green and red long-life LEDs provide clear status signaling. Conforms to standard NF C 15-100 ensuring compliance with French fire safety regulations.

Operates at 230 Vac (6 A), 400 Vac (4.5 A), 48 Vdc (1 A), and 24 Vdc (1.5 A) with Class II double insulation and IK07 impact resistance. Designed and manufactured in France assuring high quality build and reliability. Explore the comprehensive range of Fire Alarm Call Points and safety equipment available for industrial, commercial, and residential fire prevention solutions on EnvMart.
