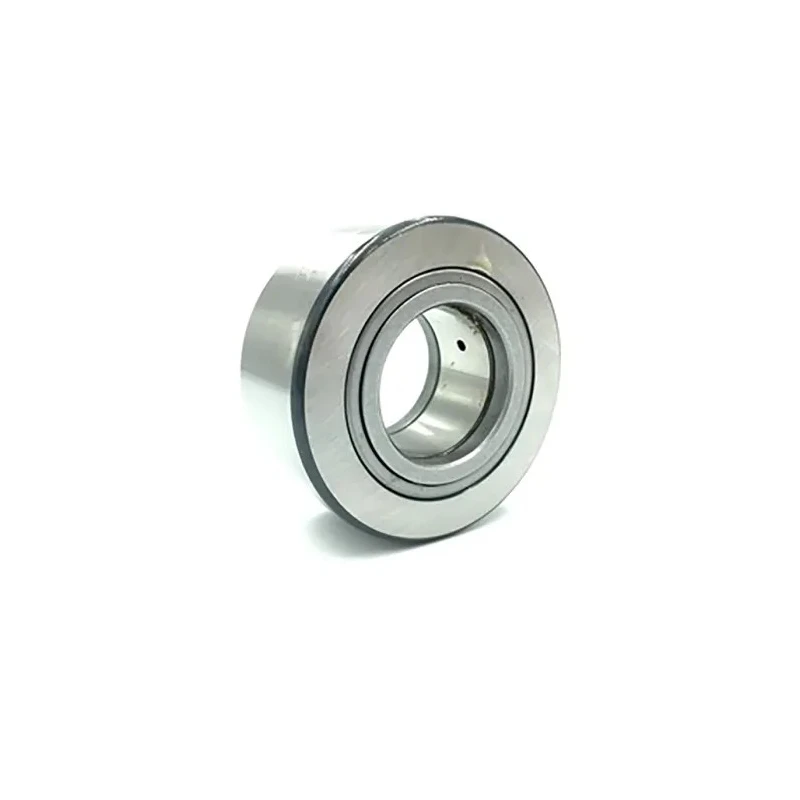

INA Yoke Cam Follower Bearing 15mm Bore Diameter, 35mm Roller Diameter, Static Load Rating 18.7kN, Dynamic Load NUTR15-X-A

INA NUTR15-X-A is a yoke type cam follower bearing featuring a bore diameter of 15mm and a roller diameter of 35mm. This bearing is engineered to handle high radial loads with a static load rating of 18.7kN and a dynamic load rating of 15.3kN. Suitable for industrial applications requiring robust rotary bearing solutions, it is designed as a ready-to-fit needle or cylindrical roller bearing available in single or double row designs.

The yoke cam follower is mounted on shafts or studs and includes a thick-walled outer ring with a crowned outside surface to enhance durability and load distribution. It tolerates axial loads resulting from minor misalignment, skewed running, or temporary impact during operation. Depending on the application, this bearing can be supplied with or without an inner ring, with stud type versions always including axial guidance of the outer ring.

This bearing can be either open or sealed on both sides, providing flexibility depending on environmental requirements. It does not mount into a housing bore; instead, it operates on a flat mating track surface. The design allows adjustment with an eccentric collar, which supports the use of larger manufacturing tolerances in adjacent constructions.

The INA NUTR15-X-A yoke cam follower is widely used in mechanical, fluid power, and industrial machinery sectors, including manufacturing equipment, assembly lines, and automation assemblies requiring durable and high-performance bearing solutions.

Ready-to-fit needle or cylindrical roller bearing available in single or double row designs. Mountable on shafts or studs with heavy-section roller stud options. Features thick-walled outer rings with crowned outside surface for durability.

Supports high radial loads and tolerates axial loads from misalignment or impact. Available with or without inner ring; stud type includes axial guidance. Can be open or sealed on both sides according to operational needs.

Operates on flat mating track, not mounted in housing bore. Adjustable eccentric collar permits greater manufacturing tolerance.

This cam follower bearing is essential for industrial, mechanical, and fluid power applications, providing reliable rotary support and axial load tolerance. For extensive selection, explore EnvMart’s wide range of rotary bearings and housing units.
