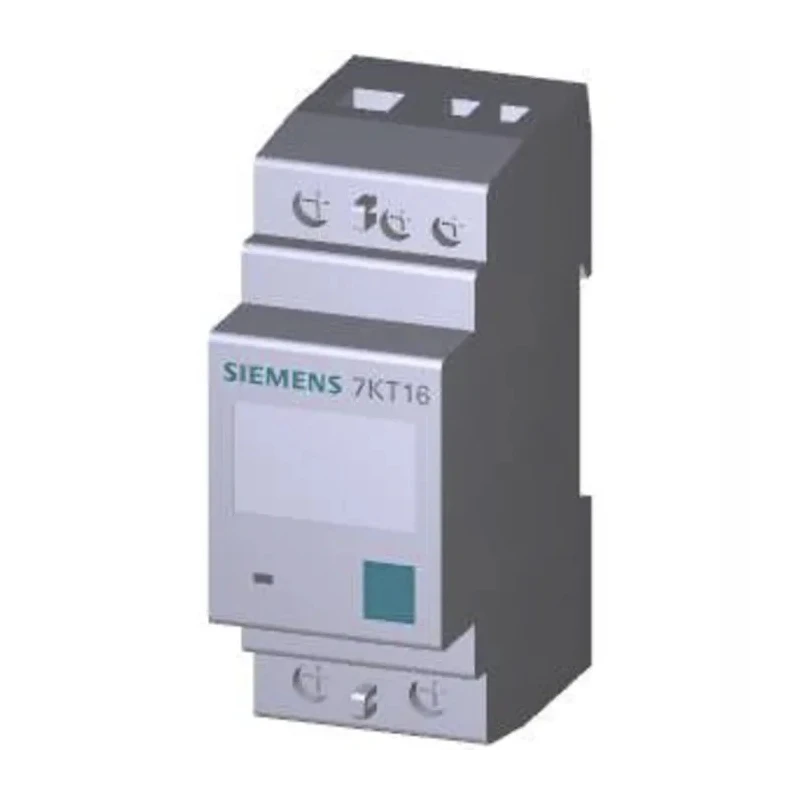

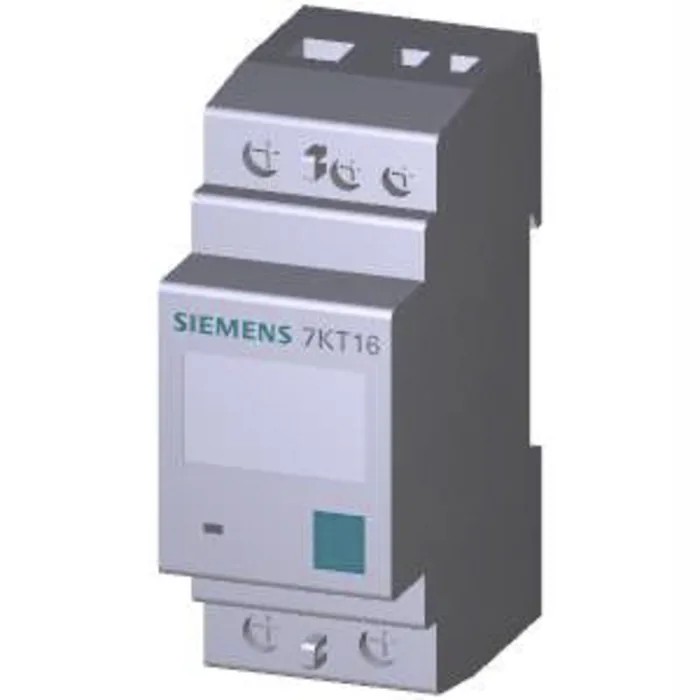

Siemens 1 Phase Digital LCD Energy Meter 7KT1656 with 230 V L-N, 65 A, Pulse Output

Free Delivery in India | Lowest Global Shipping Charges

Siemens 1 Phase Digital LCD Energy Meter 7KT1656 with 230 V L-N, 65 A, Pulse Output

Name: Siemens 1 Phase Digital LCD Energy Meter 7KT1656 with 230 V L-N, 65 A, Pulse Output
Brand: Siemens
SKU: 333897
Price: 238.53 USD
Availability: InStock



Category Energy Meter Brand Siemens Condition New

Specifications

Country of Origin	Italy
Display Type	LCD
Brand	Siemens
Model	7KT1656
Depth	63mm
Series	7KT PAC1600
Maximum Operating Temperature	55°C
Meter Type	Digital
Minimum Operating Temperature	-25°C
Digit height	85mm
Number of outputs	1
Number of Phases	1
Standards/Approvals	CE
Cutout Height	90mm
Cutout Width	36mm
SENTRON, measuring device, 7KT PAC1600, LCD, L-N	230 V, 65 A, strd rail instr., sing.-ph., S0 + MID, apparent/active/ reactive energy, self-powered, screw terminals

Key Features

This energy meter supports 1 phase with an operating voltage of 230 V L-N.
It has a maximum current rating of 65 A suitable for standard electrical installations.
The LCD display features 85 mm digit height ensuring clear readability.
The meter supports a single pulse output with 1 output channel for energy data transfer.
Operating temperature range is from -25°C to 55°C, providing reliable performance in varied environments.
Compact dimensions include a cutout height of 90 mm, width of 36 mm, and depth of 63 mm for easy panel mounting.
The device complies with CE standards ensuring safety and regulatory conformance.
Self-powered with screw terminals facilitates straightforward installation and maintenance.

Product Description

Siemens 7KT1656 is a high-precision 1 phase digital LCD energy meter designed for industrial and automation applications. It operates at a voltage of 230 V L-N and supports a current of up to 65 A, delivering accurate measurements of apparent, active, and reactive energy. The meter features a 7KT PAC1600 series device with an easy-to-read LCD display that has 85 mm digit height.

The energy meter is equipped with a single pulse output (S0+ MID) and includes screw terminals for secure wiring. Its compact dimensions (90 mm cutout height by 36 mm width and 63 mm depth) allow easy installation on standard rails. The meter is self-powered and suitable for use in harsh environments within an operating temperature range of -25°C to 55°C.

Certified to meet CE standards, this Siemens energy meter offers reliable performance for measuring and monitoring electrical energy consumption in industrial, commercial, and process control systems. Originating from Italy, it ensures quality and compliance with international safety norms.

This meter supports 1 phase operation with a pulse output. LCD digit height of 85 mm enhances display clarity. Operating temperature range from -25°C to 55°C ensures durability in varying environments. Compact form factor with 90 mm cutout height and 36 mm width for installation versatility.

CE-certified meter type with self-powered design for efficient energy measurement.

This Siemens 7KT1656 Energy Meter is ideal for electrical monitoring in industrial automation, energy management, renewable energy systems, and process control applications. Explore more Siemens measuring devices on EnvMart to suit your specific industrial instrumentation needs.
