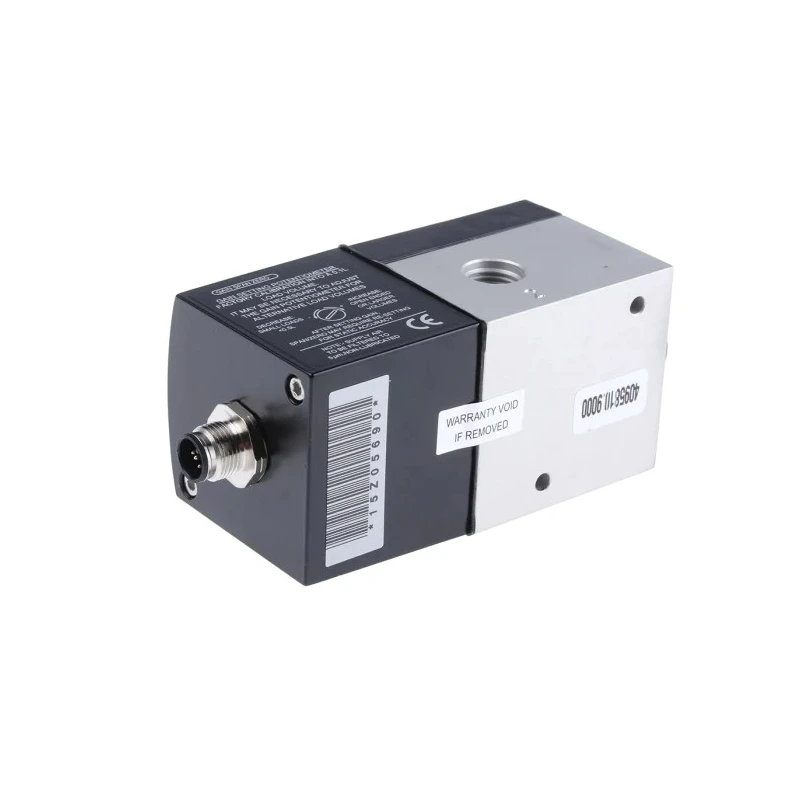

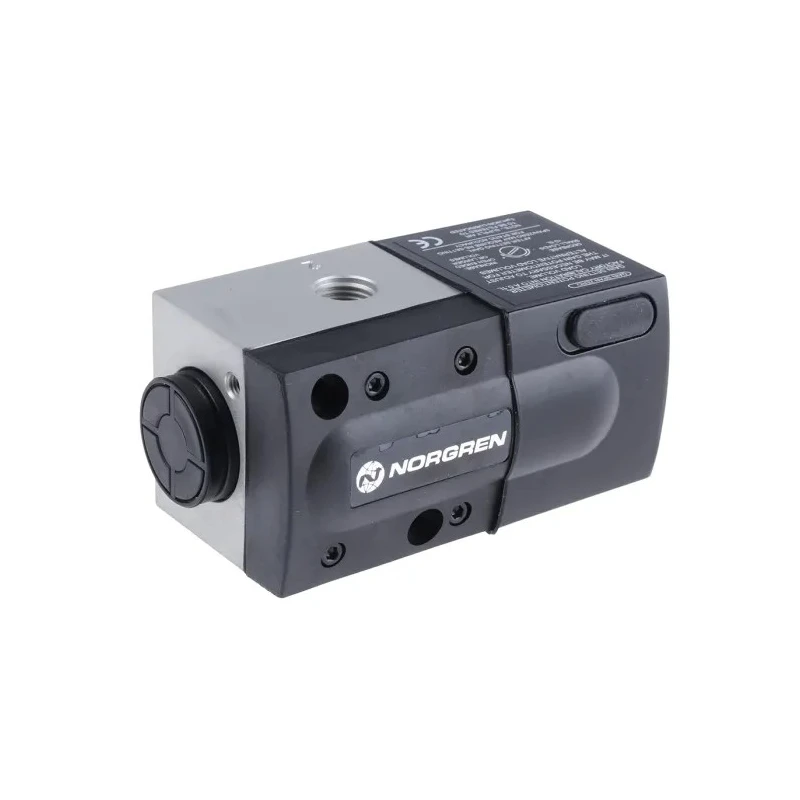

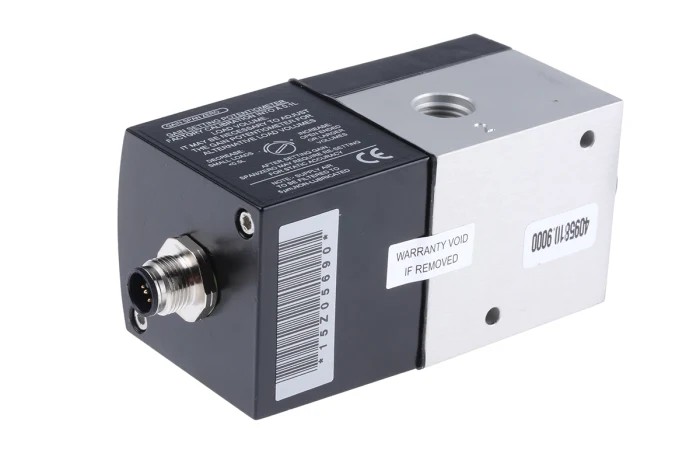

Norgren Pneumatic Solenoid Valve 3/2 NC Solenoid/Spring Manifold Mount Aluminium Body 24V DC VP50 Series
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 24V dc |
| Brand | Norgren |
| Body Material | Aluminium |
| Maximum Operating Pressure | 10 bar |
| Height | 55mm |
| Length | 102mm |
| Model | VP50 |
| Width | 50mm |
| Mount Type | Manifold |
| Series | VP50 |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 50°C |
| Number of Positions | 2 |
| Port Size | 1/4 in |
| Minimum Operating Temperature | 0°C |
| Actuation Type | Solenoid/Spring |
| Maximum Flow Rate | 1400NL/min |
| Connection Thread Standard | G |
| Minimum Pilot Pressure | 0bar |
| Valve Function | 3/2 NC |
| Electrical Connection Type | 5 Pin, M12X1 |
| Solenoid Power Consumption | 1W |
| Norgren Pneumatic Solenoid Valve - Pilot/Spring ISO G or NPT VP50 SeriesBrand | Norgren |
Key Features
- The valve has a 3 port, 2 position configuration with 3/2 NC function and manifold mount type.
- Operates at 24V DC voltage with a solenoid power consumption of 1 watt.
- Maximum operating pressure is 10 bar with flow rate capacity up to 1400 NL/min.
- Robust aluminium body ensures resistance to impact and corrosion.
- Operating temperature range from 0°C to 50°C, suitable for industrial environments.
- Electrical connection via 5 Pin, M12X1 connector enables secure connections.
- Designed for use in pharmaceutical, medical, and cooling system applications.
Product Description
Norgren VP5010BJ111H00 pneumatic solenoid valve offers reliable control of air, gases, or liquids within pneumatic systems. This 3/2 NC valve with solenoid and spring actuation operates at a 24V DC voltage and is designed for manifold mounting. Crafted with a durable aluminium body, it resists impact and corrosion, ensuring longevity in demanding industrial settings.
The valve features three ports and two positions, providing smooth operation and fast response times. Its spring return mechanism allows a single signal to trigger shutoff, providing safety during power or air supply loss. The maximum operating pressure rating is 10 bar, with a flow rate up to 1400 NL/min, accommodating various pneumatic applications.
Compact and lightweight at only 550 grams, it features dimensions of 102mm in length, 55mm in height, and 50mm in width, making installation straightforward. The electrical connection uses a 5 Pin, M12X1 type for secure and reliable connectivity. It operates efficiently within a temperature range of 0°C to 50°C.
Commonly deployed in pharmaceutical industries, cooling systems, and medical equipment, this valve supports both low and high-pressure environments with a maximum pilot pressure of 10 bar and minimum 0 bar. Its G1/4 threaded ports ensure vibration-resistant installation.
With no hazardous area certification and no specific approvals listed, this valve focuses on robust industrial performance for pneumatic control. The valve has a 3 port, 2 position configuration with 3/2 NC function and manifold mount type.
Operates at 24V DC voltage with a solenoid power consumption of 1 watt. Maximum operating pressure is 10 bar with flow rate capacity up to 1400 NL/min. Robust aluminium body ensures resistance to impact and corrosion. Operating temperature range from 0°C to 50°C, suitable for industrial environments.
Electrical connection via 5 Pin, M12X1 connector enables secure connections. Compact dimensions: 102mm length, 55mm height, 50mm width, and lightweight at 550 grams. Designed for use in pharmaceutical, medical, and cooling system applications.
Explore our comprehensive range of industrial Pneumatic Solenoid Valves at EnvMart for advanced fluid power control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 10 bar.
This model operates at a voltage of 24V DC.
It has a flow rate capacity of up to 1400 NL/min.
The valve measures 102mm in length, 55mm in height, and 50mm in width.
It weighs 550 grams.
This valve uses solenoid/spring actuation.
The operating temperature range is from 0°C to 50°C.
The electrical connection is made via a 5 Pin, M12X1 connector.
The port size is 1/4 inch.
It is commonly used in pharmaceutical, medical, and cooling system applications.
The valve function is 3/2 NC (normally closed).
The body of the valve is made from aluminium, providing resistance to impact and corrosion.
