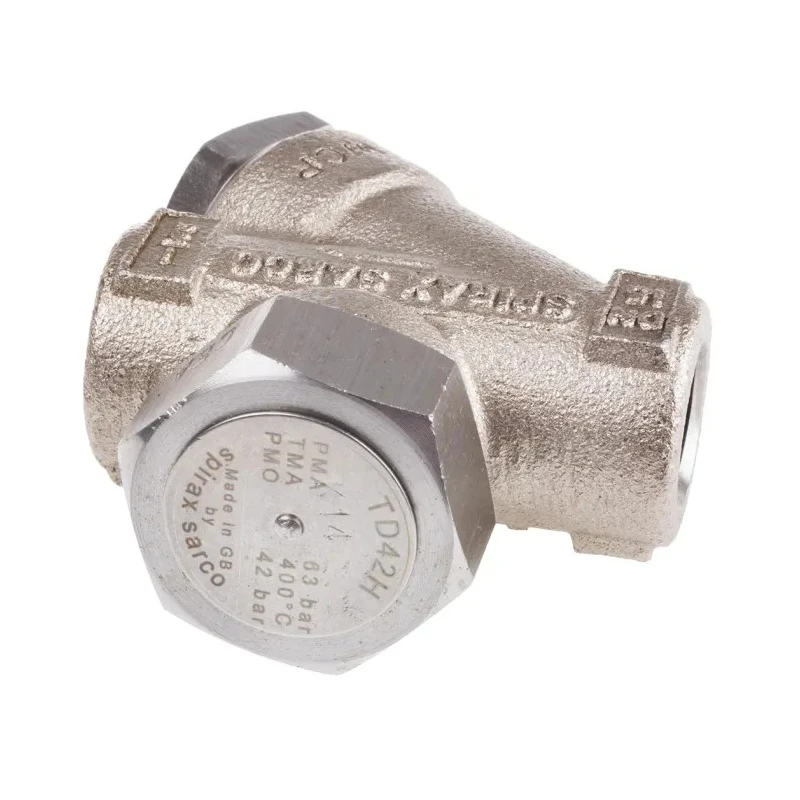

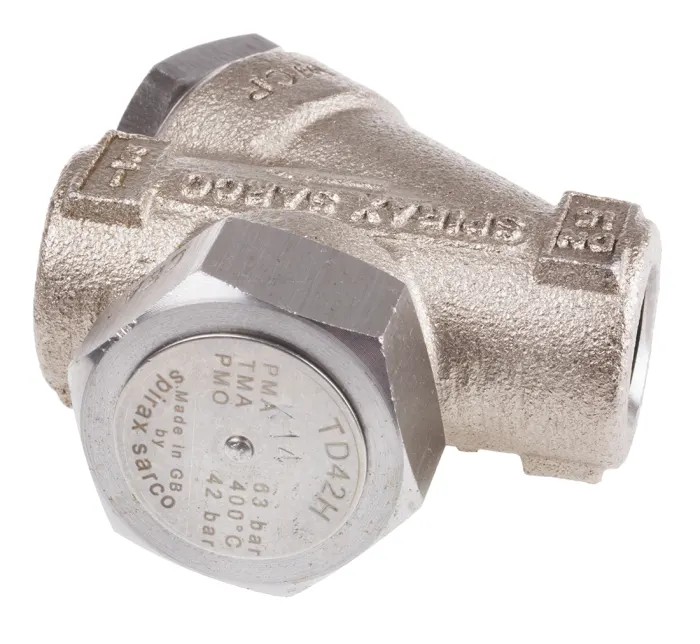

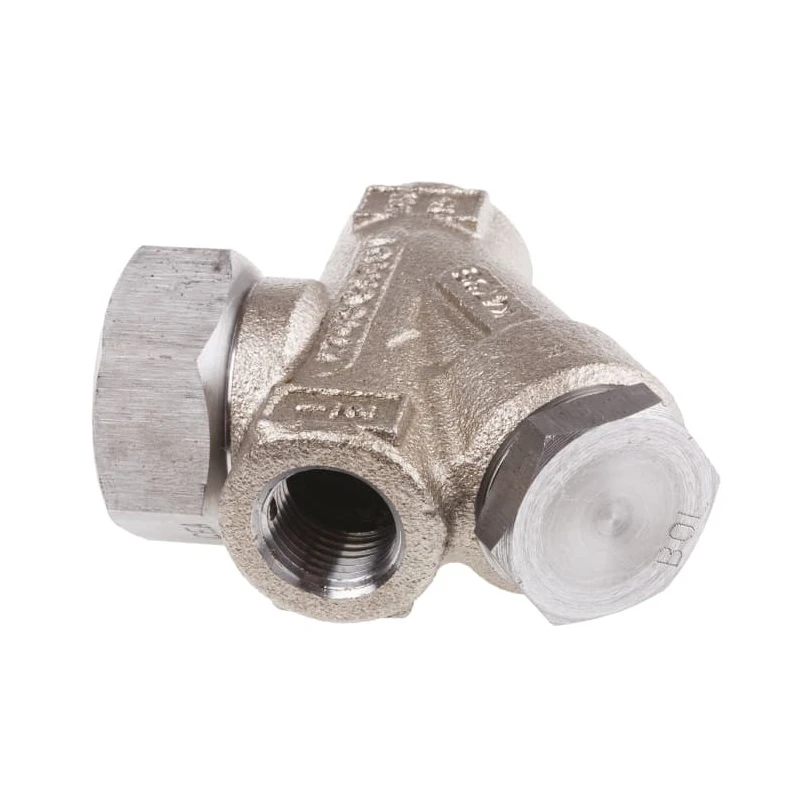

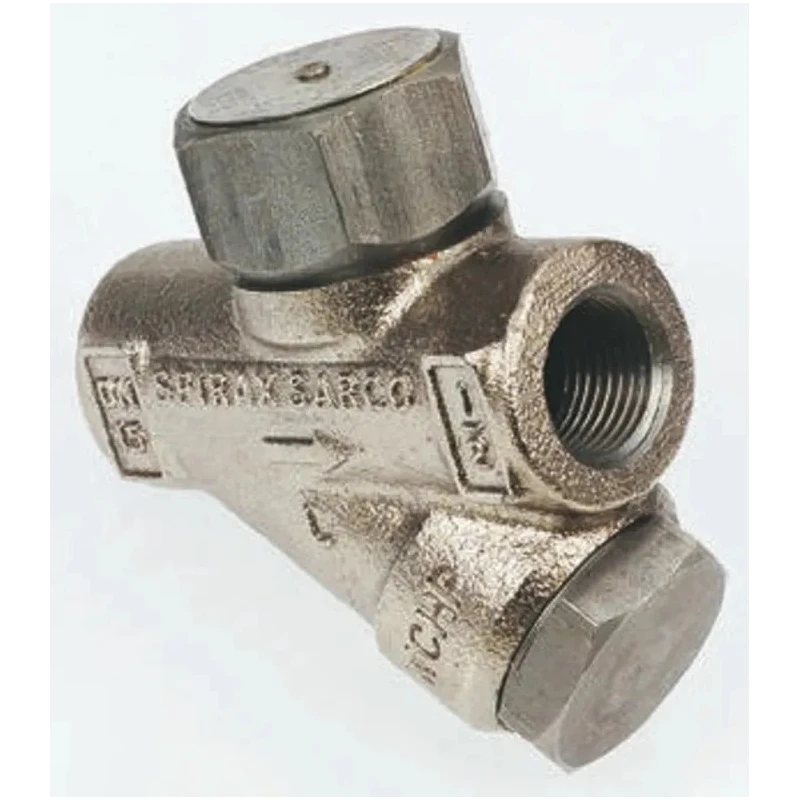

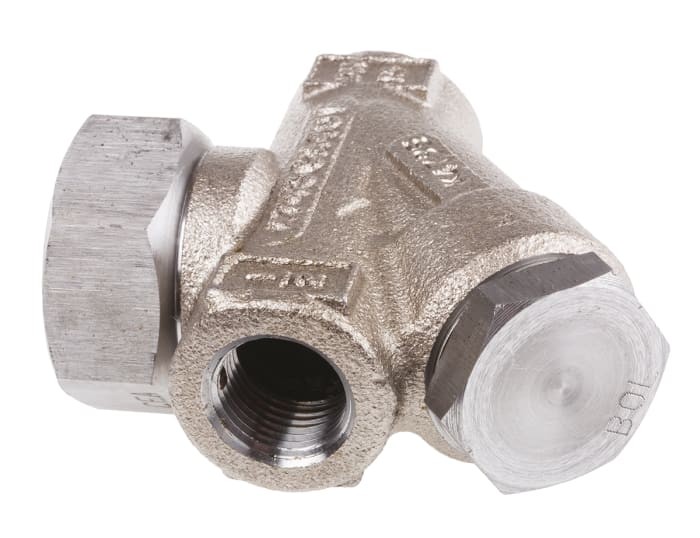

Spirax Sarco Stainless Steel Thermodynamic Steam Trap 42 bar 400°C 1534197

Spirax Sarco 1534197 Thermodynamic Steam Trap is engineered for demanding industrial steam applications where reliable condensate discharge is essential. Built with stainless steel body and graphite gasket, this steam trap ensures exceptional durability and sealing performance, suitable for operating pressures up to 42 bar and temperatures reaching 400°C. The trap is designed for horizontal orientation with 3/4 inch BSP female connections, making it compatible with standard industrial piping systems.

This compact and lightweight trap incorporates an in-built strainer to protect against dirt and debris, thus reducing maintenance needs and prolonging service life. The thermodynamic design guarantees positive discharge and clean tight shut-off, eliminating condensate back-up, reducing water hammer risk, and improving overall plant efficiency. It is ideal for small condensate loads such as mains drainage with the TD42L variant and process loads with the TD42H variant.

With robust construction, this steam trap is resistant to superheat, vibration, and freezing conditions, ensuring long operational life even under challenging industrial conditions. It can be installed in both horizontal and vertical positions, providing installation versatility across a range of mechanical, fluid power, and HVAC systems. Typical applications include steam distribution, heating, and process systems in manufacturing, chemical, and processing industries.

Constructed from durable stainless steel for long service life. Graphite gasket material ensures tight and reliable sealing. Horizontal orientation with BSP 3/4 inch female connections. Suitable for maximum operating pressure of 42 bar and temperature of 400°C.

Built-in strainer prevents debris ingress and system contamination. Compact design reduces installation costs and footprint. Positive discharge with tight shut-off enhances energy efficiency. Robust against superheat, freezing, and water hammer effects.

Installable in horizontal and vertical positions for flexibility. Applicable across mechanical, fluid power, industrial and HVAC systems.

Spirax Sarco Steam Traps are vital for efficient steam system operation, ensuring condensate removal without steam loss, thus optimizing energy use and system reliability. Explore more related mechanical and fluid power products at EnvMart for your industrial requirements.
