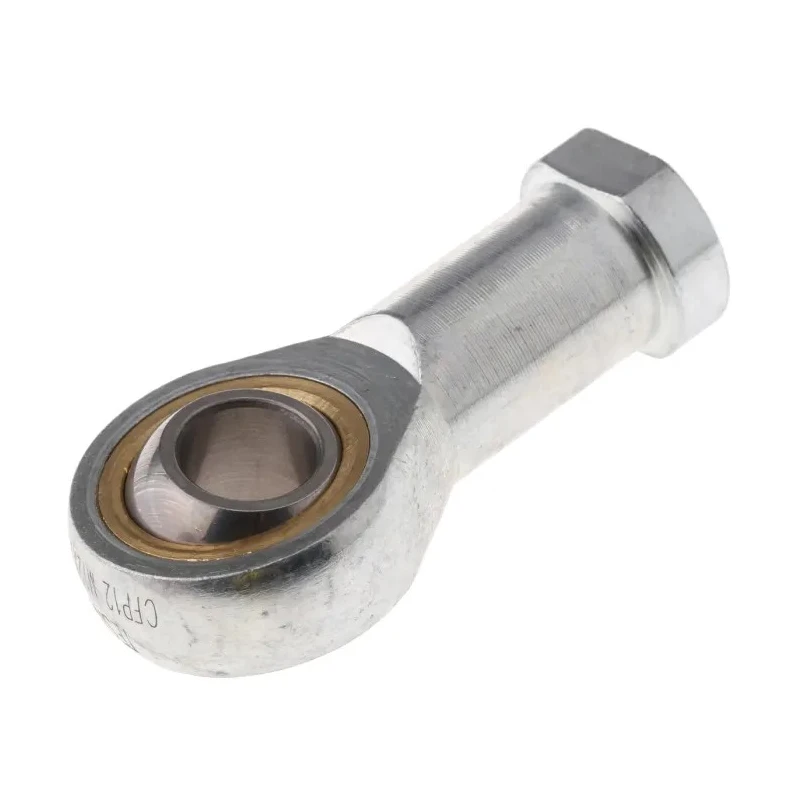

SMC Steel Piston Rod Ball Joint M12 x 1.25 Female Thread, 12mm Bore, 32mm Outer Diameter, 22mm Width, Operating KJ12D

Free Delivery in India | Lowest Global Shipping Charges

SMC Steel Piston Rod Ball Joint M12 x 1.25 Female Thread, 12mm Bore, 32mm Outer Diameter, 22mm Width, Operating KJ12D



Category Rod Ends Brand SMC Condition New

Specifications

Country of Origin	China
Brand	SMC
Material	Steel
Model	KJ12D
Overall Width	22mm
Outside diameter	32mm
Maximum Operating Temperature	80°C
Connection Size	M12 x 1.25 Female
Minimum Operating Temperature	-20°C
Bore Diameter	12mm
Thread Standard	Metric

Key Features

Features an M12 x 1.25 female metric thread for secure rod attachment.
12mm bore diameter suitable for compact rod integration.
Constructed from high-strength steel for excellent wear resistance.
Outer diameter of 32mm and overall width of 22mm for stable bearing support.
Operates in temperature range from -20°C up to 80°C for diverse industrial environments.
Designed to accommodate angular misalignment while transmitting linear motion.
Ideal for pneumatic and hydraulic cylinder rod-end connections.
Suitable for robotics, gantry systems, and agricultural machinery linkages.

Product Description

SMC KJ12D Steel Piston Rod Ball Joint is engineered for demanding industrial applications requiring precise articulation and robust connection of piston rods. The ball joint features an M12 x 1.25 female metric thread and a 12mm bore diameter, making it suitable for integration with standard metric threaded piston rods in automation and machinery.

Manufactured from durable steel, it delivers high load capacity and excellent resistance to mechanical wear, enhancing operational reliability and reducing maintenance frequency. The joint's outside diameter of 32mm combined with an overall width of 22mm provides a stable lateral bearing surface and mechanical support.

This rod end ball joint operates effectively across a broad temperature spectrum, from -20°C to +80°C, accommodating various environmental conditions in industrial, manufacturing, and agricultural settings. The spherical joint design allows for angular compensation in linkages while transmitting smooth linear motion.

Typical applications include pneumatic cylinder rod-end connections, hydraulic actuator linkages, robotic arm pivot points, gantry positioning systems, and load-bearing joints in agricultural machinery. The product's metric female thread enables seamless compatibility with threaded rods adhering to metric standards.

Features an M12 x 1.25 female metric thread for secure rod attachment. Exceptional steel construction for durability and wear resistance. 12mm bore diameter for compact and precise rod interfacing. 32mm outside diameter provides robust bearing surface.

22mm overall width ensures stable lateral support. Operates within -20°C to 80°C temperature range for industrial environments. Accommodates angular misalignment while transmitting linear force. Ideal for pneumatic, hydraulic, robotic, and agricultural machinery applications.

Manufactured in China to quality control standards.

This SMC KJ12D piston rod ball joint is a vital component in mechanical, fluid power, and automation industries, supporting reliable motion transfer and articulation under load. Explore more Rod Ends and related bearing solutions in the EnvMart catalog for your industrial equipment needs.
