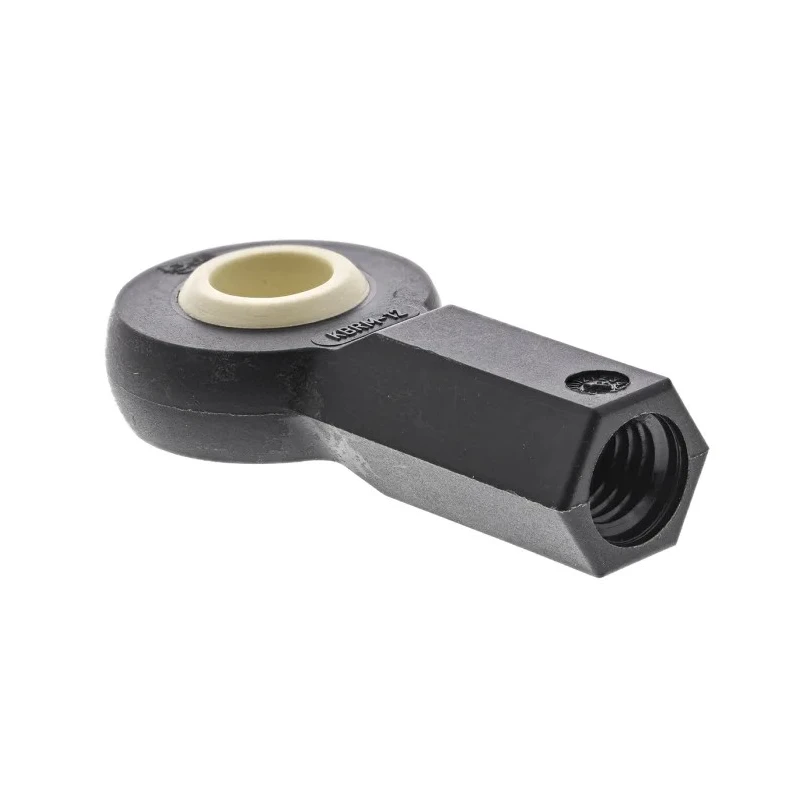

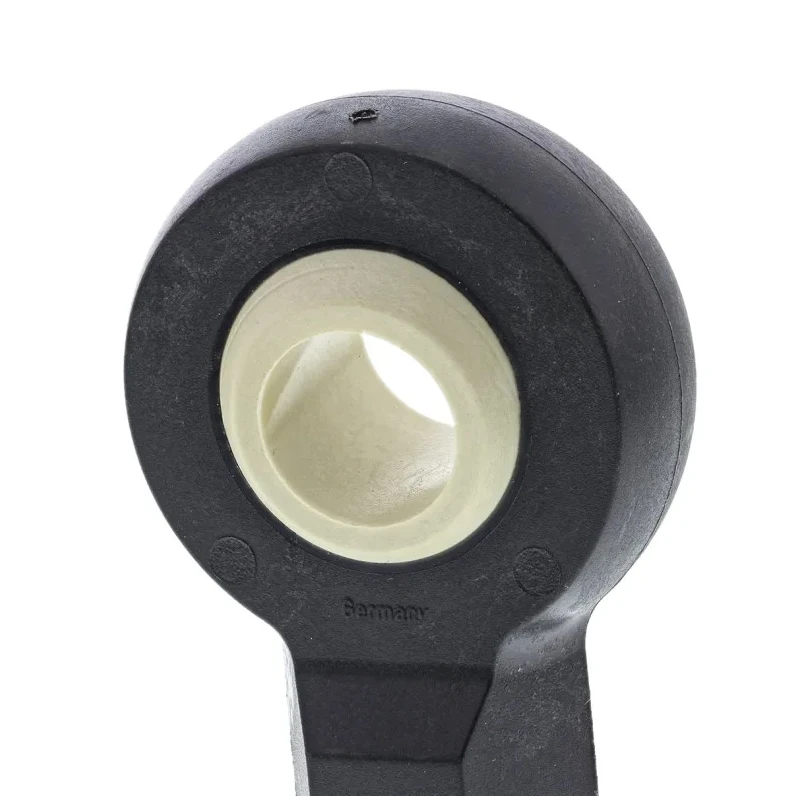

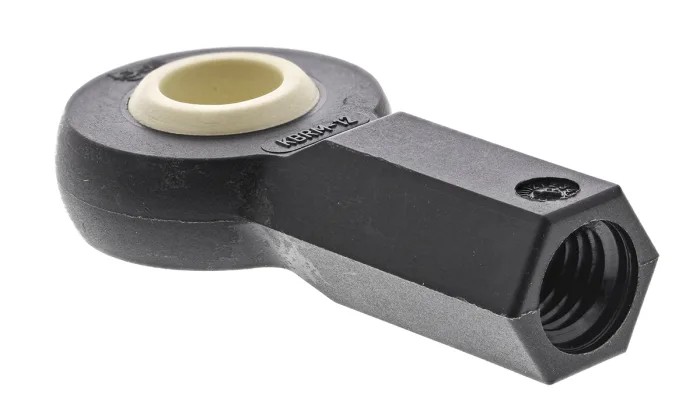

Igus M12 Female Igumid G Rod End, 12mm Bore Metric KBRM-12

Igus KBRM-12 M12 Female Igumid G Rod End features a 12mm bore size with female metric threading, designed for demanding industrial applications requiring maintenance-free and self-lubricating components. The rod end is manufactured using Igumid G material, known for its excellent corrosion resistance and chemical stability, enabling it to perform reliably in harsh environments.

This rod end is designed to operate without lubrication, making it ideal for industries and environments where dirt and dust contamination are common. It boasts a static load rating of 1800N and an overall width of 67mm, providing high rigidity and strength while remaining lightweight - about 20% of the weight of similar steel components.

The operating temperature range of -30°C to +80°C makes it suitable for a variety of industrial, mechanical, fluid power, and manufacturing applications. Its female M12 metric thread standard ensures easy mounting and compatibility with standard fittings. The Igus KBRM-12 rod end excels in sustaining high fatigue strength under dynamic load changes and vibration resistance, making it highly reliable for use in automated machinery and rotating components.

IGUBAL® bearings technology enables the rod end to maintain performance with a small clearance between shaft and ball, preventing ball rotation inside the housing and extending component life. This product is a prime choice for applications in industries such as automotive, robotics, industrial machines, construction, and agricultural equipment.

Constructed of Igumid G material for high corrosion resistance and chemical stability. Maintenance-free, self-lubricating design eliminates the need for additional lubrication. Static load rating of 1800N provides durability in demanding applications.

Wide operating temperature range from -30°C to +80°C ensures versatility. Female M12 metric threaded connection for compatibility with standard components. Overall width of 67mm for optimal fit and integration. Suitable for use in abrasive and dusty environments due to high tolerance to dirt and dust.

Lightweight design, approximately 20% the weight of equivalent steel parts, reduces system load. Manufactured in Germany, guaranteeing premium build quality and reliability.

Choose the Igus KBRM-12 rod end for a reliable, low-maintenance solution in rotary bearings and housing units, perfectly suited for industrial automation, laboratory equipment, fluid power systems, and mechanical assemblies. Explore more quality products in the Rod Ends category at EnvMart for your application needs.
