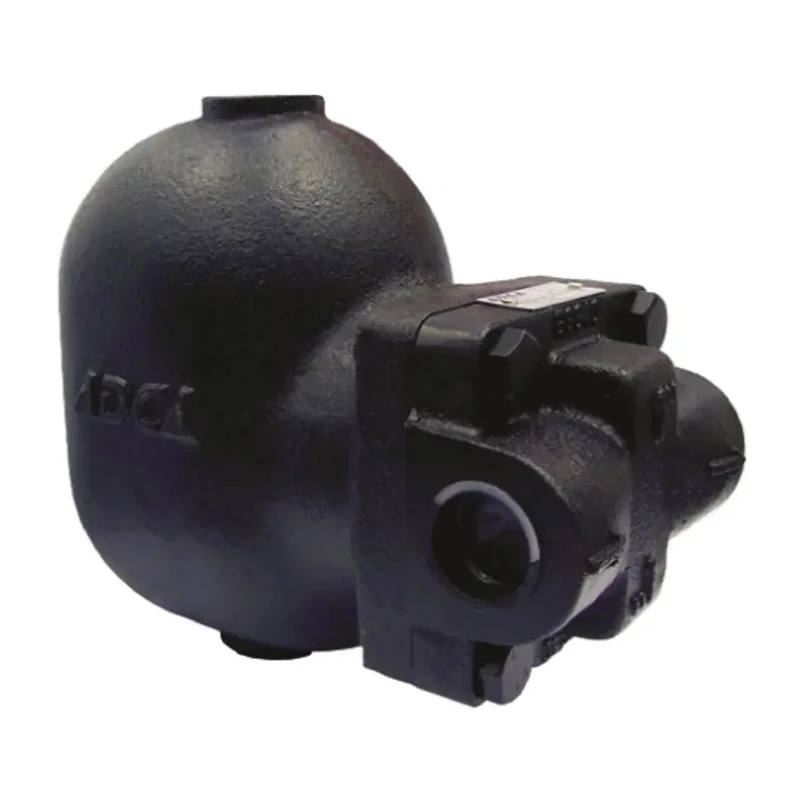

RS PRO 14 bar SG Iron Float and Thermostatic Steam Trap Female 1 in Connection 198°C 720-9235

RS PRO 720-9235 steam trap is a high-quality float and thermostatic steam trap designed to efficiently remove condensate from steam systems. Featuring a robust SG iron body combined with stainless steel internals, it ensures durability and longevity even under demanding industrial conditions. This steam trap is optimized for operating pressures up to 14 bar and temperatures reaching 198°C, making it suitable for a broad range of steam heating and process equipment applications.

The float mechanism within the trap manages condensate by allowing denser condensed steam to enter, causing the float to raise and open a valve to discharge the condensate promptly. This action prevents potential damages from water hammer and maintains optimum steam system performance. The thermostatic element effectively vents air and non-condensable gases by responding to temperature changes, thus improving heat transfer efficiency.

The trap is equipped with a female 1-inch screwed connection enabling straightforward integration into existing piping systems. It features modulating discharge characteristics and an integral air vent that facilitates excellent air discharge. Its design remains unaffected by sudden or wide load and pressure fluctuations, ensuring consistent and reliable operation.

Typical industrial applications include plumbing systems, unit heaters, heat exchangers, dryers, and jacketed vessels requiring continuous condensate drainage. All units comply with PN16 pressure ratings, use reinforced exfoliated graphite gaskets, and have cover bolts made from BS 3692 Gr.10 steel for enhanced mechanical strength.

The RS PRO 720-9235 steam trap is manufactured in Portugal and supplied new without specific certifications or standards. It provides a reliable solution for industrial, HVAC, and manufacturing steam systems to enhance efficiency and equipment longevity.

Constructed from durable spheroidal graphite iron with stainless steel internal parts. Supports a maximum operating temperature of 198°C ensuring high thermal stability. Female screwed connection size is 1 inch for easy installation.

Incorporates integral air vent and modulating discharge for optimal condensate removal. Effective float and thermostatic mechanisms prevent water hammer and maintain system efficiency. Ideal for steam heating, unit heaters, heat exchangers, dryers, and jacketed vessels.

Resistant to sudden and wide pressure or load changes without performance loss. Manufactured in Portugal and supplied new with no specific approvals. Explore the complete range of industrial valves and Steam Traps at EnvMart for all your steam system needs.
