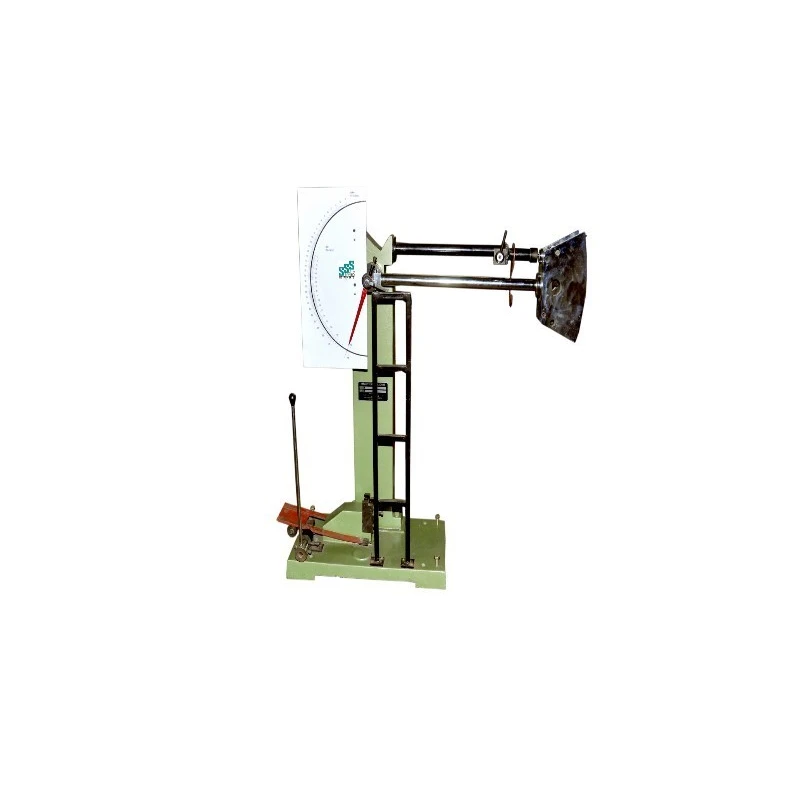

Pendulum Impact Testing Machine Model SSS-IT-300 Charpy Test
Specifications
| Model | SSS-IT-300 Charpy Test |
|---|---|
| Pendulum drop angle | 140 |
| Striking Velocity Of Pendulum | 5.3466 M/SEC. |
| Pendulum Effective wt. | 21.400 KG |
| Pendulum Impact Energy | 300 J |
| Min. Scale Graduation | 2 J |
| Max. Permissible Loss By Friction & Windage etc. | 0.50 % of Impact Energy |
Key Features
- Easy to use
- High efficiency
Product Description
Pendulum Impact Testing Machine (Model SSS-IT-300 Charpy Test) is used to determine the impact strength or toughness of a material under impact loading by measuring the amount of energy the material is able to absorb. The base components of a Charpy tester are the machine frame, a weighted pendulum rod with hammer, a dial gauge, specimen supports, and a safety shield/device.Complete pendulum impact systems can also include PC equipment and temperature conditioning devices. The Charpy impact test, also known as the Charpy V-notch test, is a high strain-rate test that involves striking a standard notched specimen with a controlled weight pendulum swung from a set height. The impact test helps measure the amount of energy absorbed by the specimen during fracture.
- High durability
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum pendulum impact energy of the SSS-IT-300 is 300 J.
The striking velocity of the pendulum in this model is 5.3466 m/sec.
The pendulum effective weight for this testing machine is 21.400 kg.
The minimum scale graduation for measuring impact energy is 2 J.
The pendulum drop angle for the SSS-IT-300 is 140 degrees.
The maximum permissible loss by friction and windage is 0.50% of the impact energy.
The base components include the machine frame, a weighted pendulum rod with hammer, a dial gauge, specimen supports, and a safety shield/device.
This model performs the Charpy impact test, which measures the toughness of materials under impact loading.
Yes, complete pendulum impact systems can include PC equipment and temperature conditioning devices.
The Charpy impact test determines the impact strength or toughness of a material by measuring the energy absorbed during fracture.
This model is suitable for material testing, specifically to evaluate the impact strength of various materials.
