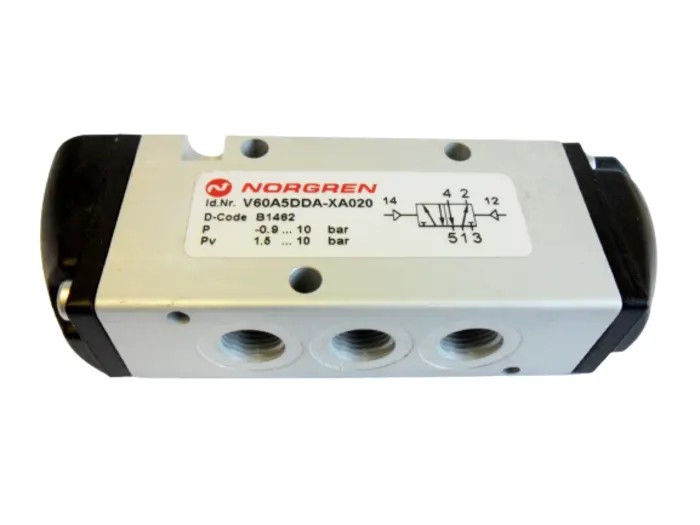

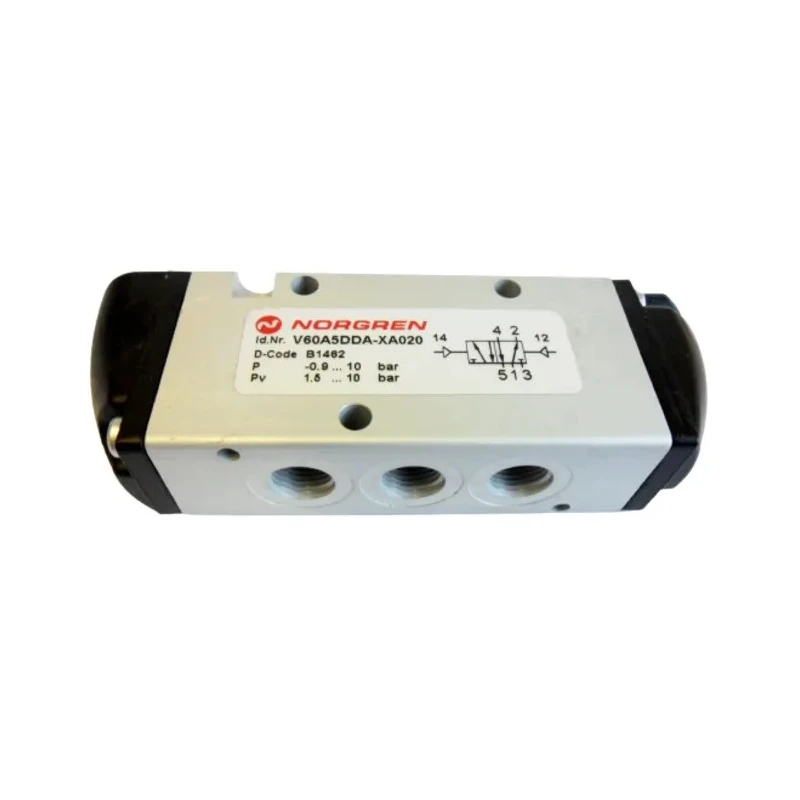

Norgren Solenoid Pilot Valve Aluminium Body Pilot G 1/8 Port Size 5 Ports 10 bar Max Pressure V60A5DDA-XA020

Norgren V60A5DDA-XA020 Solenoid Pilot Valve is designed for precise control of compressed air flow in pneumatic systems with excellent durability and reliability. The valve features a pilot G 1/8 threaded connection and an aluminium die-cast body ensuring corrosion resistance and impact strength, suitable for rigorous industrial environments.

This inline mounted valve operates at a maximum pressure of 10 bar with a temperature range from -10°C to 50°C, accommodating various operating conditions. Its compact size (32 mm height, 140 mm length, and 50 mm width) supports installation in confined spaces, while the manifold system facilitates rapid assembly in multi-valve setups.

The valve is optimized for a maximum flow rate of 750 L/min and functions as a 5/2 directional control valve with 5 ports and 2 positions. It incorporates a 4 x 90° rotatable solenoid for versatile installation, combined with a 100% continuous duty rating making it ideal for continuous industrial automation processes.

Applications extend across food production, agricultural machinery, and industrial automation sectors where reliable and durable pneumatic control is essential. This valve offers an IP65 rating when installed with a sealed plug, ensuring protection against low-pressure water jets and harsh environmental conditions.

Features a pilot G 1/8 connection thread standard for seamless integration. Supports a maximum operating pressure of 10 bar for demanding pneumatic systems. Engineered with 5 ports and 2 positions for 5/2 valve function control.

Constructed from durable aluminium material to withstand corrosion and impacts. Operates efficiently within a temperature range from -10°C to 50°C. Delivers a maximum flow rate of 750 L/min suitable for various pneumatic uses.

Compact inline mount design with dimensions 32 mm (H) × 140 mm (L) × 50 mm (W). Equipped with a 100% continuous duty rating for sustained industrial performance. Manifold system compatible for rapid assembly and space-saving installation.

Ideal for applications such as food production, industrial automation, and agricultural machinery.

Choose the Norgren V60A5DDA-XA020 Solenoid Pilot Valve for industrial, laboratory, construction, HVAC, manufacturing, water treatment, and agricultural pneumatic control applications. Browse EnvMart’s broad selection of Pneumatic Solenoid Valves and related accessories for reliable system integration.
