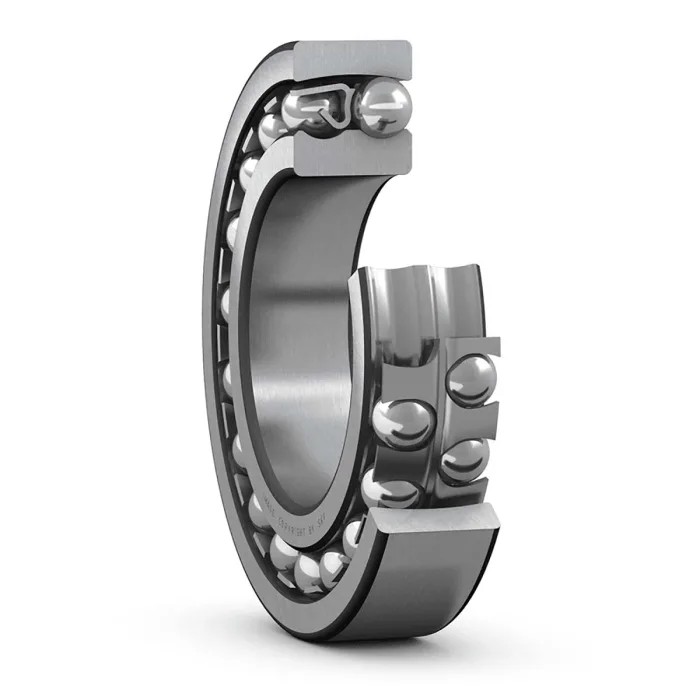

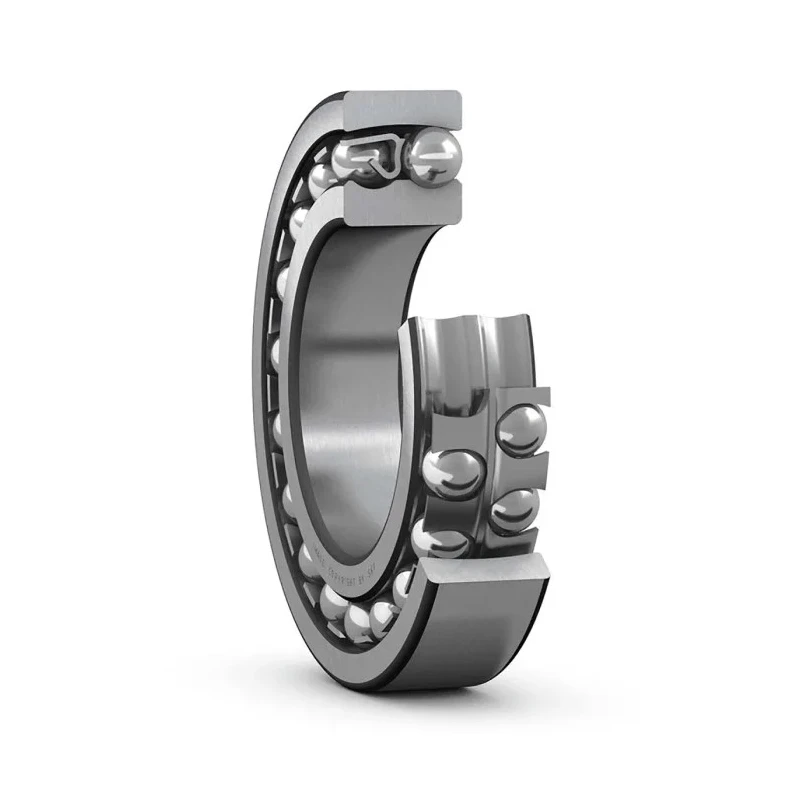

SKF Self-Aligning 2 Row Ball Bearing 90 mm ID 160 mm OD Sheet Metal Cage Steel Balls Open End 1218
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | SKF |
| Model | 1218 |
| Series | Self-aligning ball bearings |
| Outside diameter | 160mm |
| Inside Diameter | 90mm |
| Number of Rows | 2 |
| Ball Material | Steel |
| Limiting Speed | 5300rpm |
| Internal Clearance | CN |
| End Type | Open |
| Bore Type | Parallel |
| Bearing Type | Self-Aligning |
| Cage Material | Sheet Metal |
| Race Width | 30mm |
| Static Load Rating | 23.6kN |
| Dynamic Load Rating | 57.2kN |
Key Features
- The bearing has two rows of steel balls for enhanced load capacity.
- It features a sheet metal cage and an open end type for easy installation and maintenance.
- Race width measures 30 mm ensuring robust mechanical stability.
- It is suitable for angular misalignment caused by shaft deflection.
- Limiting speed of the bearing is rated at 5300 rpm for efficient operation.
- The dynamic load rating is 57.2 kN and static load rating is 23.6 kN for durability.
- The bearing bore is parallel and equipped with CN internal clearance for optimum performance.
- Manufactured in Malaysia following SKF's series of self-aligning ball bearings.
Product Description
The SKF 1218 model is a self-aligning Ball Bearing featuring two rows of steel balls with a bore diameter of 90 mm and an outer diameter of 160 mm. This bearing includes a common sphered raceway in the outer ring combined with two deep uninterrupted raceway grooves in the inner ring.
Designed to be insensitive to angular misalignment between the shaft and the housing, the SKF 1218 bearing effectively compensates for shaft deflection, making it ideal for demanding industrial rotary machinery and equipment.
The bearing is built with a sheet metal cage and an open end type design, offering ease in assembly and reliable retention of the balls. Its race width of 30 mm provides robust support to the bearing structure during heavy load operations.
The parallel bore and CN internal clearance maintain optimum fitting and operational smoothness. This bearing supports a limiting speed of 5300 rpm and offers high dynamic and static load capacities with 57.2 kN and 23.6 kN respectively, ensuring long service life even under strenuous conditions.
Manufactured in Malaysia by SKF, a renowned leader in bearing technology, the 1218 model is well suited for various industrial applications including machinery, manufacturing plants, and heavy equipment operations requiring reliable and efficient rotary bearings.
The bearing includes two rows of steel balls for exceptional load handling capability. Sheet metal cage design enhances mechanical reliability and durability. Open end type facilitates easy maintenance and installation. Self-aligning design compensates for angular misalignment.
High dynamic and static load ratings ensure long operational life. Suitable for high speed operations with a 5300 rpm limiting speed. Parallel bore and CN internal clearance optimize bearing performance. Manufactured to SKF's quality standards in Malaysia.
For industrial and manufacturing sectors searching for high-quality self-aligning bearings, SKF 1218 offers trusted performance and durability. Explore the full catalogue of SKF rotary bearings and enhance your machinery reliability with proven products from EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SKF 1218 bearing has an inside diameter of 90 mm, an outside diameter of 160 mm, and a race width of 30 mm.
The SKF 1218 bearing has a limiting speed rated at 5300 rpm.
The dynamic load rating for the SKF 1218 bearing is 57.2 kN.
This model features a sheet metal cage design, which enhances mechanical reliability and durability.
Yes, the self-aligning design of the SKF 1218 allows it to compensate for angular misalignment caused by shaft deflection.
The SKF 1218 bearing is constructed with steel balls and features a sheet metal cage.
The static load rating for the SKF 1218 bearing is 23.6 kN.
The internal clearance for this model is classified as CN, which is designed for optimum performance.
The SKF 1218 bearing is manufactured in Malaysia.
This bearing features two rows of steel balls, which enhances its load capacity.
The bore type of the SKF 1218 is parallel, which helps maintain optimal fitting and operational smoothness.
This bearing is suitable for various industrial applications, including machinery and heavy equipment operations requiring reliable rotary bearings.
