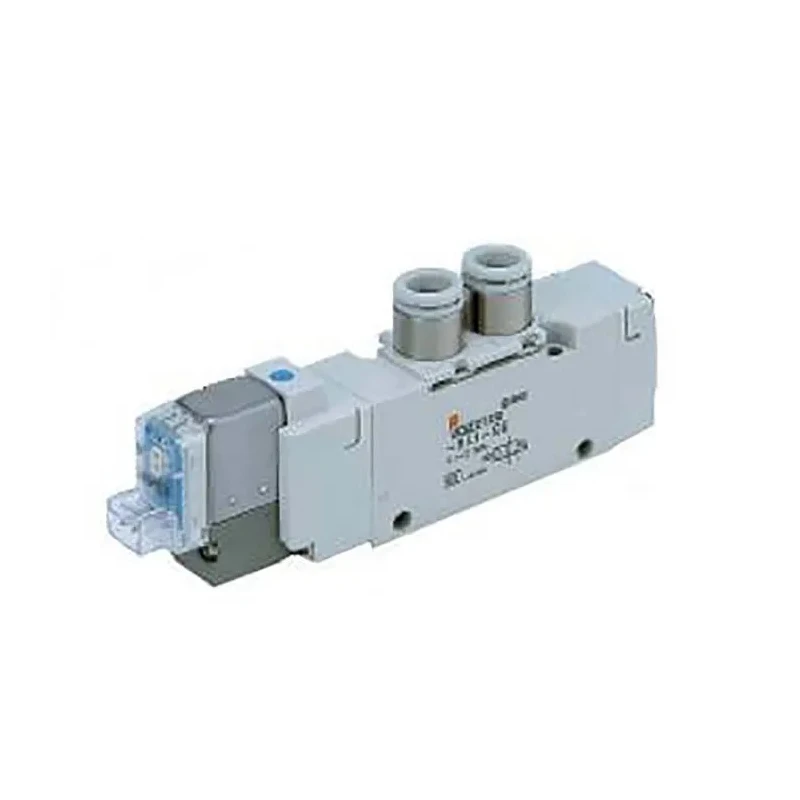

SMC Pneumatic Solenoid/Pilot-Operated Control Valve 5/2 Solenoid 24V VQZ3000

SMC VQZ3000 Pneumatic Solenoid/Pilot-Operated Control Valve 5/2 Solenoid 24V is designed to deliver precise pneumatic control for various industrial, manufacturing, and automation applications. It uses a single solenoid actuation type powered at 24V DC to reliably operate valve positions in pneumatic fluid power systems.

The valve body is constructed from aluminium and sealed with metal, ensuring robustness and high resistance to wear under operational pressures up to 1 MPa. The device supports a fluid operating pressure range from 0.1 to 0.7 MPa and is suitable for use with air and inert gases. Operating temperatures are rated from -10°C to 50°C, allowing durability in moderate industrial environments.

This model includes 3 male ports, 2 positions, and a 5/2 valve function enabling versatile flow control in pneumatic circuits. Its compact size, with a length of 130 mm, width of 65.5 mm, and height of 68.4 mm, supports easy installation in tight spaces. The valve’s electrical connection uses a DIN connector for reliable interfacing in control systems.

The VQZ3000 series valve complies with CE standards, ensuring safety and regulatory conformity, although it lacks hazardous area certification. Its solenoid power consumption is minimal at 1 W, contributing to efficient energy usage.

Typical industrial applications include automation systems, pneumatic control for manufacturing lines, and fluid power machinery where precise valve actuation with a pilot-operated solenoid is required.

Operates with a 24V solenoid power supply for efficient control. Constructed with aluminium body material and metal seal for durability. Designed for ambient and fluid temperatures from -10 to 50°C. Features 3 male ports with a 5/2 valve function and 2 operating positions.

Maximum operating pressure of 1 MPa and pilot pressure between 0.15 to 0.7 MPa. Equipped with a DIN connector for electrical connection. Compact dimensions: 130mm length, 65.5mm width, and 68.4mm height. Conforms to CE standards but has no hazardous area certification.

Suitable for air and inert gas fluids in pneumatic systems. Explore more pneumatic valve products and SMC brand offerings in EnvMart’s Industrial Supplies category.
