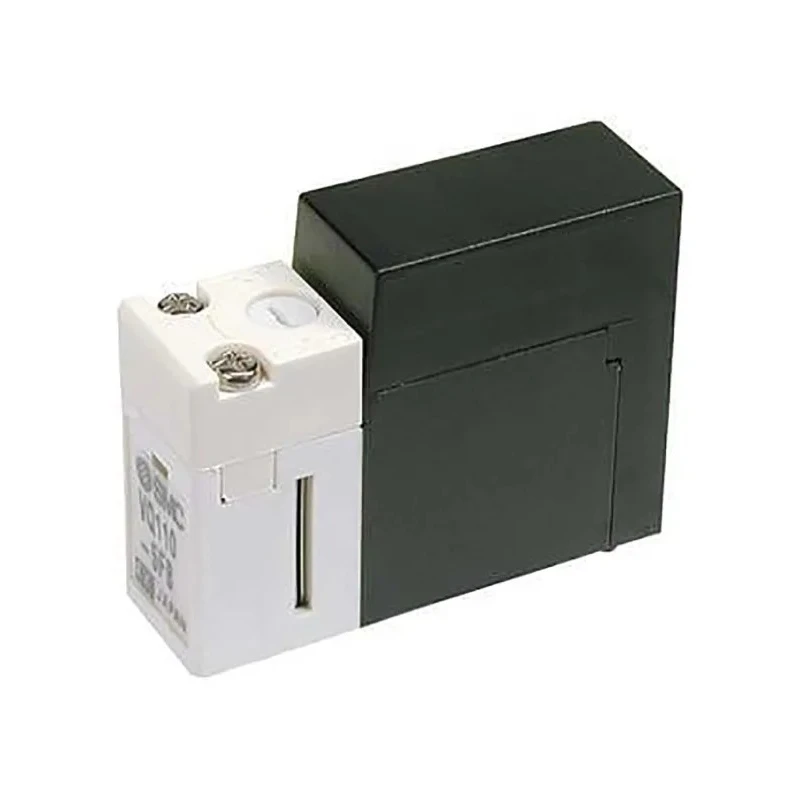

SMC Pneumatic Solenoid/Pilot-Operated Control Valve 3/2 NC Solenoid Manifold Mount 24V Resin Body VQ100
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 24V |
| Brand | SMC |
| Body Material | Resin |
| Maximum Operating Pressure | 0.7 Mpa |
| Response time | 6.5ms or less |
| Height | 29.2mm |
| Length | 30.7mm |
| Model | VQ100 |
| Width | 14.8mm |
| Mount Type | Manifold |
| Series | VQ100 |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 50°C |
| Number of Positions | 2 |
| Minimum Operating Temperature | -10°C |
| Operating pressure range | 0 - 0.8MPa |
| Actuation Type | Solenoid |
| Fluid | air, inert gas |
| Maximum Flow Rate | 19.63L/min |
| Standards/Approvals | RoHS |
| Minimum Pilot Pressure | 0MPa |
| Valve Function | 3/2 NC |
| Electrical Connection Type | Plug Connector |
| Solenoid Type | Single |
| Port Gender | Female |
| Solenoid Power Consumption | 1W |
| mm² | 0,3 (standard, high pressure), 0,7 (option, large flow) |
Key Features
- This valve operates with air and inert gases within a pressure range of 0 to 0.8 MPa.
- Equipped with three female ports and a single solenoid actuation type.
- Electrical connection via plug connector ensures easy and secure installation.
- The valve supports a maximum flow rate of 19.63 L/min and consumes 1 watt of solenoid power.
- Designed for operation within temperatures from -10°C to 50°C.
- Response time is 6.5 milliseconds or less for fast and reliable switching.
- The valve has two positions and is RoHS compliant, ensuring safety and environmental standards.
- Manufactured in Japan and supplied new as the latest in the VQ100 series.
Product Description
SMC VQ110U-5F-Q Pneumatic Solenoid/Pilot-Operated Control Valve is a high-quality 3/2 normally closed (NC) valve from the renowned VQ100 series by SMC. Designed for manifold mounting, this valve's compact resin body ensures durability and chemical resistance suitable for pneumatic systems.
Operating with air and inert gases within a pressure range of 0 to 0.8 MPa, it delivers a maximum flow rate of 19.63 L/min. The valve is equipped with three female ports and controlled by a single solenoid which operates at 24 volts DC, consuming only 1 watt of power.
The valve dimensions are height 29.2 mm, length 30.7 mm, and width 14.8 mm, allowing for seamless integration into various pneumatic assemblies. It is designed for a temperature operating range from -10°C to 50°C, making it suitable for a broad spectrum of industrial environments.
The fast response time of 6.5 milliseconds or less makes it efficient for rapid pneumatic control applications. The valve features two positions and provides reliable 3/2 way control typically required in automation and fluid power systems. Compliance with RoHS standards assures environmental safety and material sustainability.
Manufactured in Japan, the VQ110U-5F-Q valve is part of SMC's VQ100 series, now being replaced by the V100 series. This valve is ideal for pneumatic control applications in industrial automation, manufacturing, fluid handling, HVAC, and laboratory instrumentation requiring precise and reliable valve operation.
This valve operates with air and inert gases within a pressure range of 0 to 0.8 MPa. Equipped with three female ports and a single solenoid actuation type. Electrical connection via plug connector ensures easy and secure installation.
The valve supports a maximum flow rate of 19.63 L/min and consumes 1 watt of solenoid power. Compact dimensions: height 29.2 mm, length 30.7 mm, and width 14.8 mm. Designed for operation within temperatures from -10°C to 50°C.
Response time is 6.5 milliseconds or less for fast and reliable switching. The valve has two positions and is RoHS compliant, ensuring safety and environmental standards. Manufactured in Japan and supplied new as the latest in the VQ100 series.
Explore more Pneumatic Solenoid Valves and pneumatic components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this valve is 0.8 MPa.
It supports a maximum flow rate of 19.63 L/min.
This model operates within a temperature range of -10°C to 50°C.
The valve features a plug connector for easy and secure electrical connection.
It uses a single solenoid actuation type.
The dimensions are height 29.2 mm, length 30.7 mm, and width 14.8 mm.
This valve is equipped with three female ports.
The response time is 6.5 milliseconds or less, allowing for fast switching.
It operates with air and inert gases.
The valve functions as a 3/2 normally closed (NC) valve.
Yes, it is RoHS compliant, ensuring safety and environmental standards.
It is manufactured in Japan.
