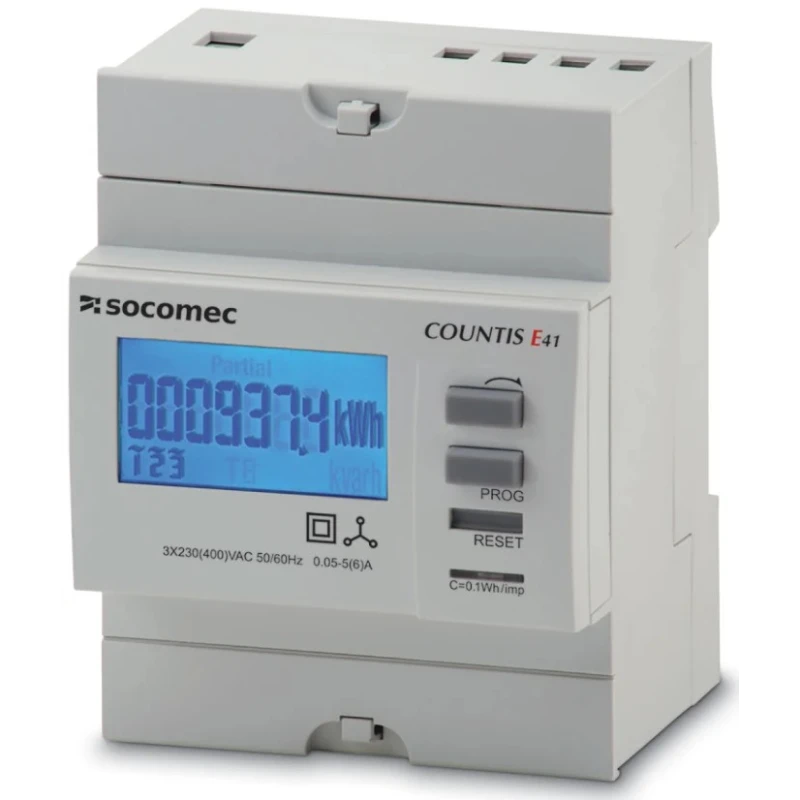

Socomec 3 Phase Energy Meter LCD Backlight Modular COUNTIS E41 8-Digit, 2 Outputs, Class 2 (IEC 62053-22) 48503063

Socomec 48503063 is a high-performance 3 Phase Energy Meter from the COUNTIS E41 series offering precise electrical energy measurement in industrial and commercial applications. This modular energy meter features an 8-digit LCD backlight display that clearly presents kWh, kVArh, and kVA values. It supports three-phase load metering via CT connection for currents up to 12000 A, making it ideal for robust energy monitoring setups.

The meter includes 2 pulse outputs enabling effective data exchange for process control and automation systems. It complies with multiple accuracy standards: Class 2 according to IEC 62053-22, Class C according to EN 50470, and Class 1 as per IEC 62053-21, ensuring reliable performance across different measurement needs.

Designed to endure harsh operating conditions, this device functions optimally within a temperature range of -25°C to 55°C and features a compact form factor with a 72mm width, 90mm height cutout, and 64mm depth. The digit height is 85mm for excellent readability to operators.

Built to conform to EN and IEC standards, the COUNTIS E41 energy meter meets rigorous industrial quality and safety benchmarks. Originating from France, it serves diverse sectors including manufacturing, electrical utilities, HVAC energy management, and renewable energy monitoring.

This energy meter significantly contributes to energy management, industrial automation, and electrical system monitoring. Its robust construction and precise measurement capabilities make it a trusted choice in industrial instrumentation.

Features an LCD backlit display for enhanced readability. Suitable for three-phase load metering with CT connection up to 12000 A. Provides pulse output with 2 outputs for data communication. Achieves meter accuracy Class 2 (IEC 62053-22), Class C (EN 50470), and Class 1 (IEC 62053-21).

Compact dimensions with cutout width 72mm and height 90mm, and depth of 64mm. Operates reliably from -25°C to 55°C for varied environments. Digit height of 85mm ensures clear data visualization on the LCD. Compliance with EN/IEC standards guarantees quality and safety.

Designed and manufactured in France for industrial and commercial use. Explore the wide range of precision industrial measuring instruments and Energy Meters at EnvMart to enhance your process control and energy efficiency.
