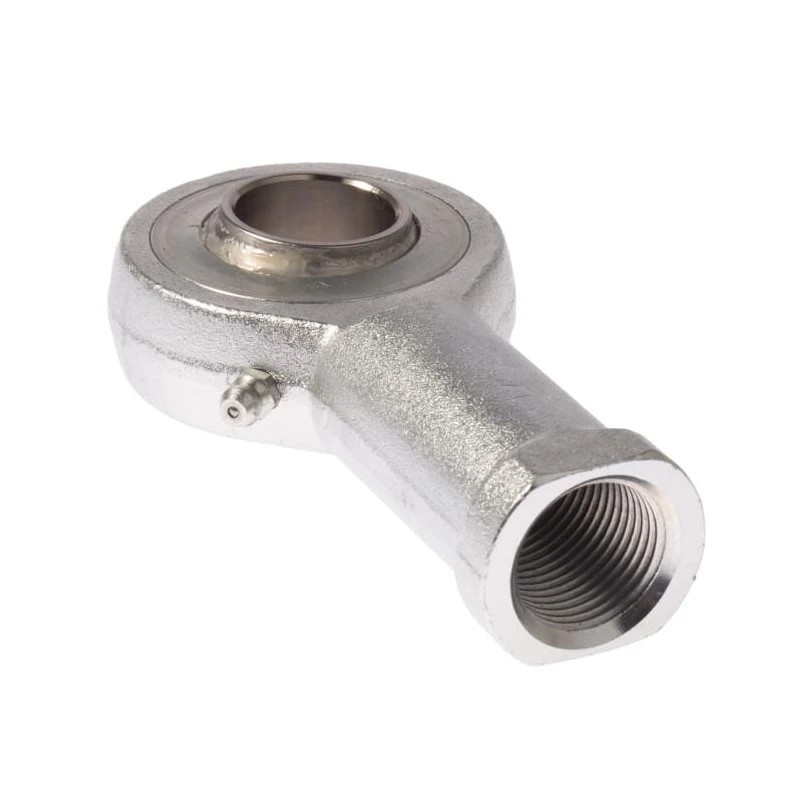

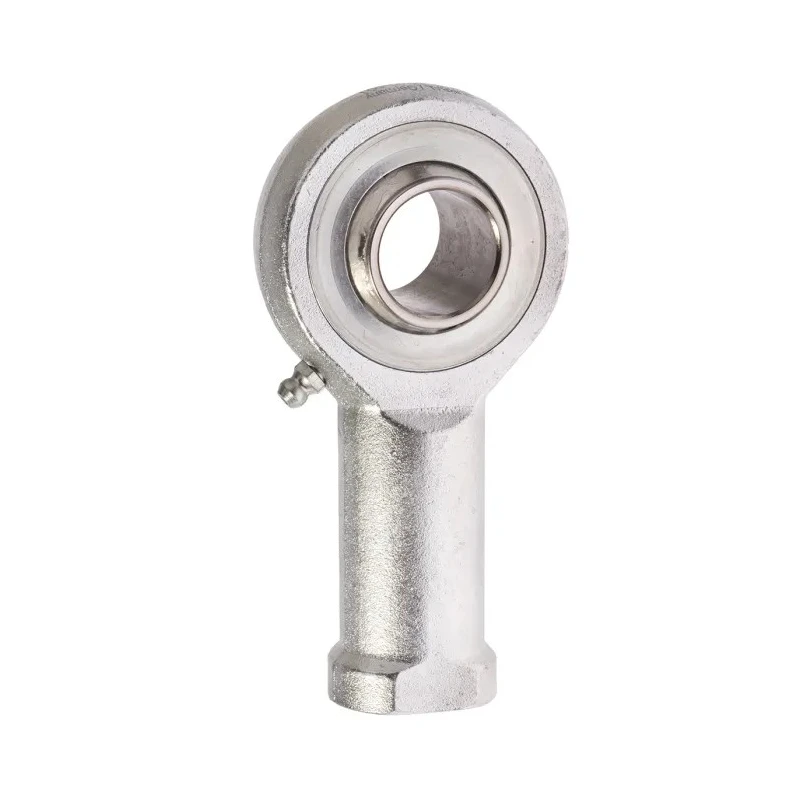

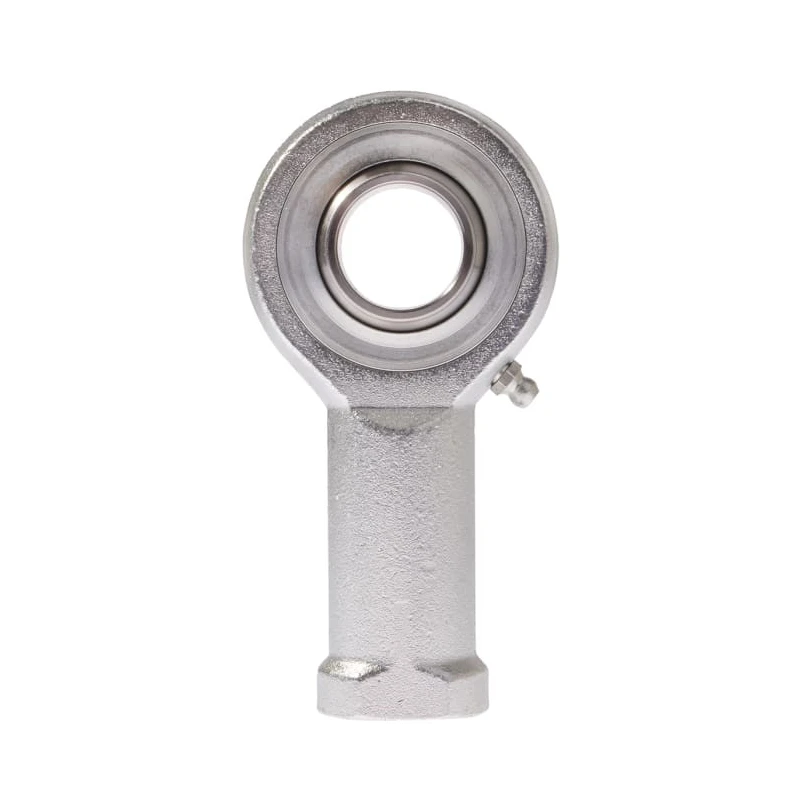

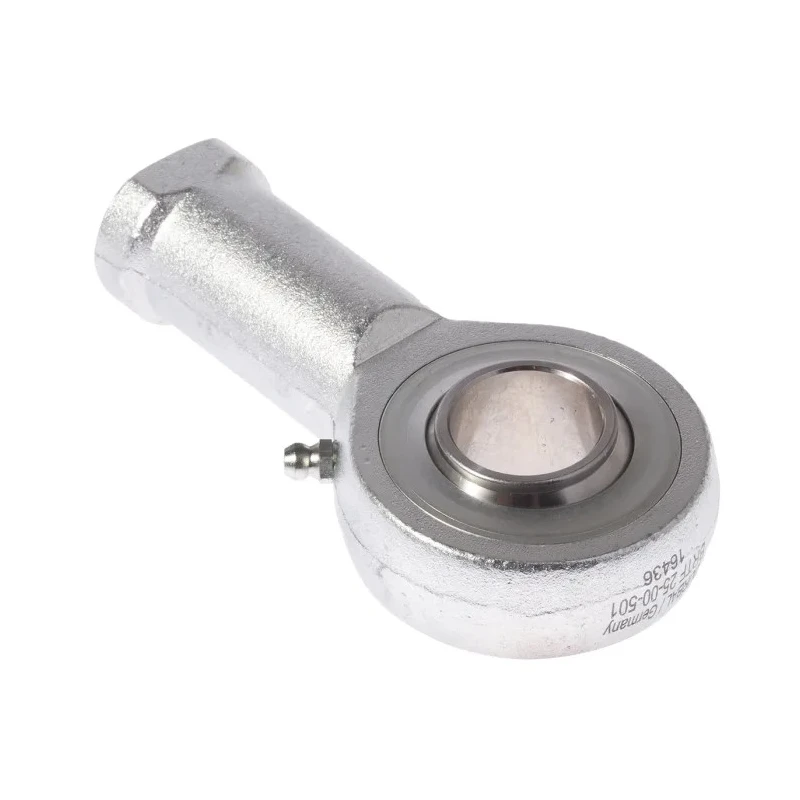

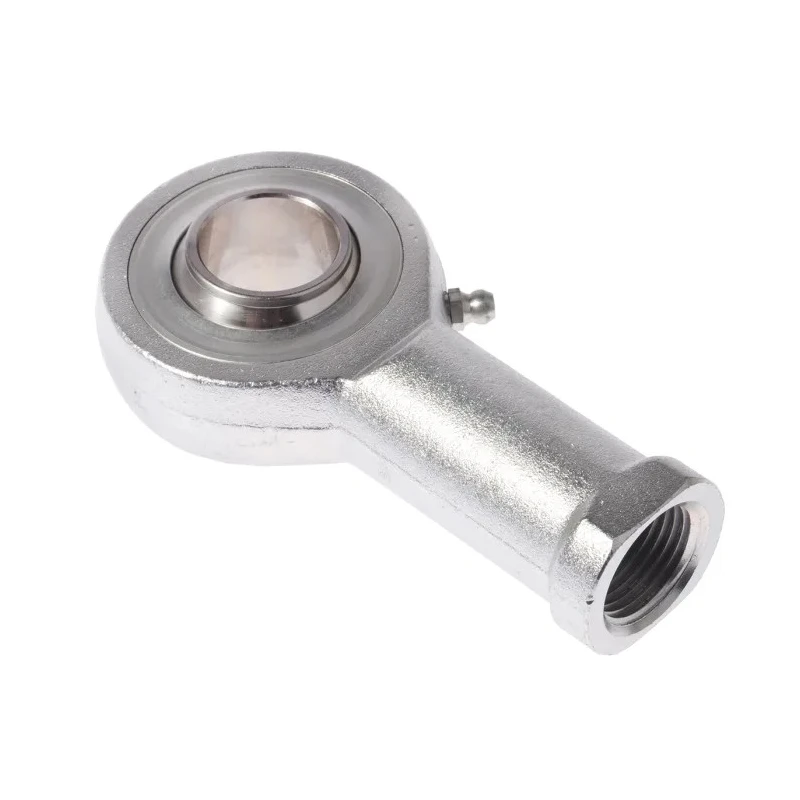

Durbal M10 x 1.5 Female Forged Steel Rod End, 10mm Bore, Dynamic Load 4.5kN, Static Load 1.5kN, Metric Thread BRF 10-00-501

Durbal BRF 10-00-501 is a M10 x 1.5 Female Forged Steel Rod End featuring a 10mm bore diameter, designed for industrial rotary bearing applications requiring durability and precision.

This rod end is part of Durbal's premium line, constructed with a forged steel housing that is tempered, case hardened, and surface galvanized to resist wear and corrosion. It incorporates a ball bearing steel inner ring that is hardened and superfine ground to ensure smooth rotational movement.

The component is designed for demanding environments with a dynamic load rating of 4.5kN and a static load rating of 1.5kN, making it suitable for various mechanical, construction, and fluid power applications. It operates reliably across a wide temperature range from -20°C to +120°C.

Lubrication is possible using Polyrex EP2 or soap complex grease, providing low maintenance requirements. The rod end features a metric M10 x 1.5 female thread with right-hand direction, an outside diameter of 28mm, and an overall width of 57mm, offering compatibility with diverse assemblies.

Tempered forged steel housing with case hardened bearing race for durability. Hardened, superfine ground ball bearing steel inner ring for accuracy. Supports continuous operation with a dynamic load of 4.5kN and static load of 1.5kN.

Wide operating temperature range from -20°C to 120°C ensures versatility. Lubrication possible for reduced maintenance and extended lifespan. Metric M10 x 1.5 female thread with right-hand direction. Outside diameter of 28mm and width of 57mm for precise fitment.

Bearing clearance between 15 and 40 microns radial ensures performance. Manufactured in Germany to stringent quality standards.

This forged steel rod end is ideal for applications in industrial machinery, construction equipment, fluid power tools, and automotive assemblies requiring robust rotary bearing solutions.
