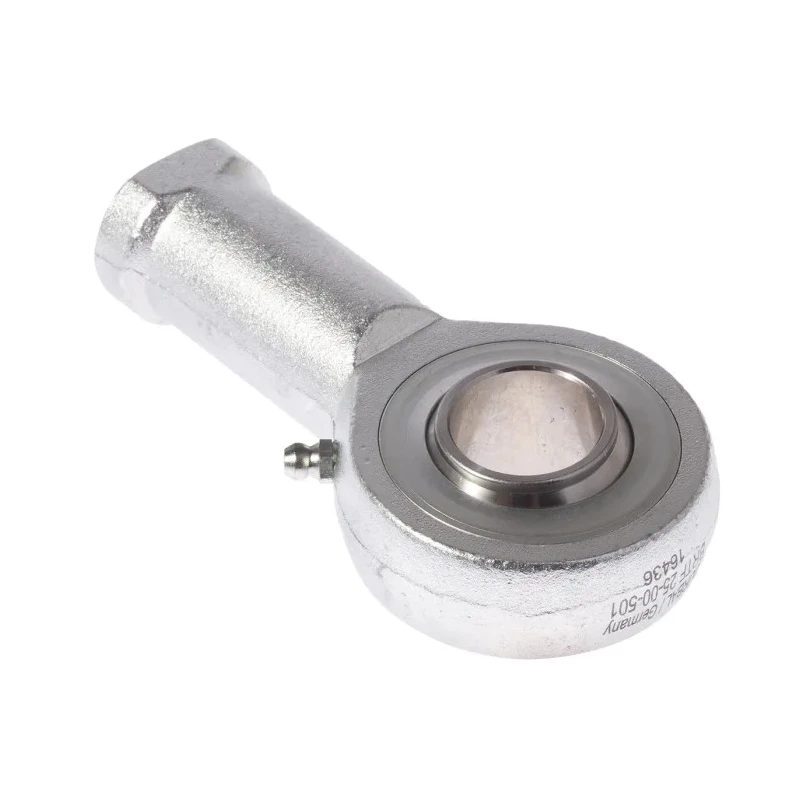

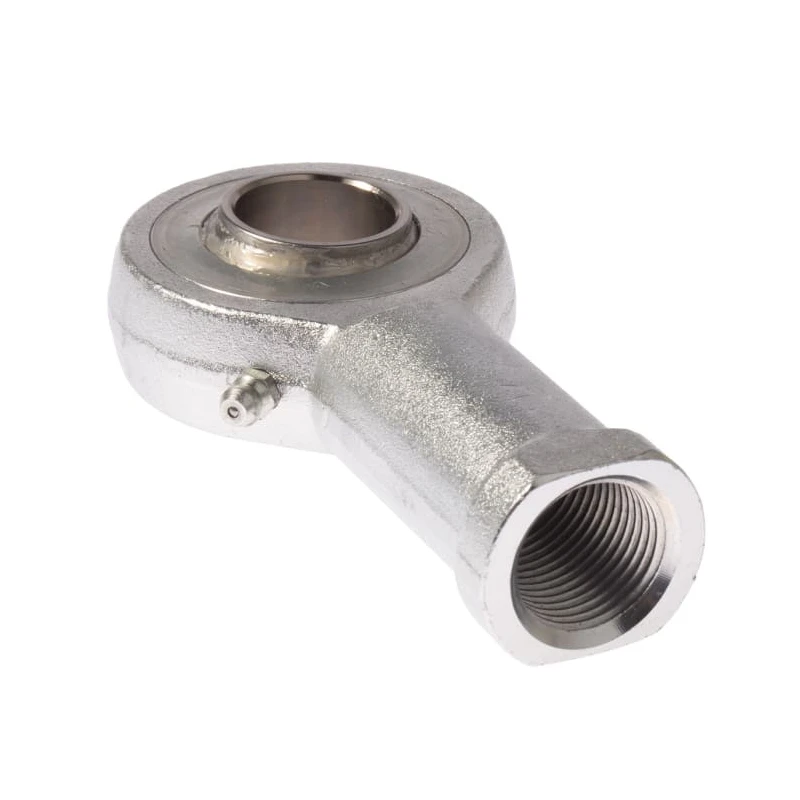

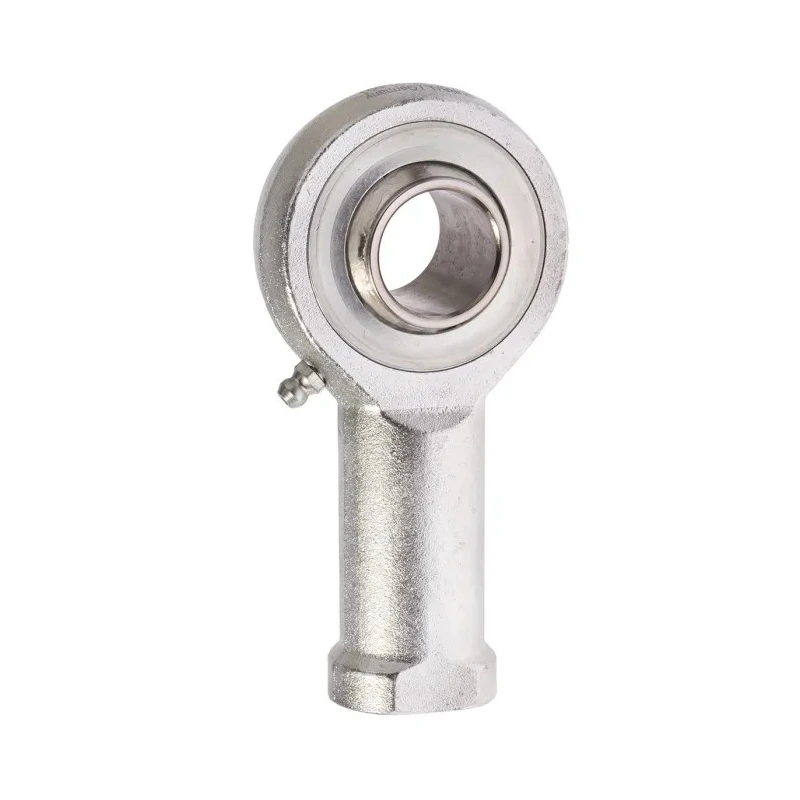

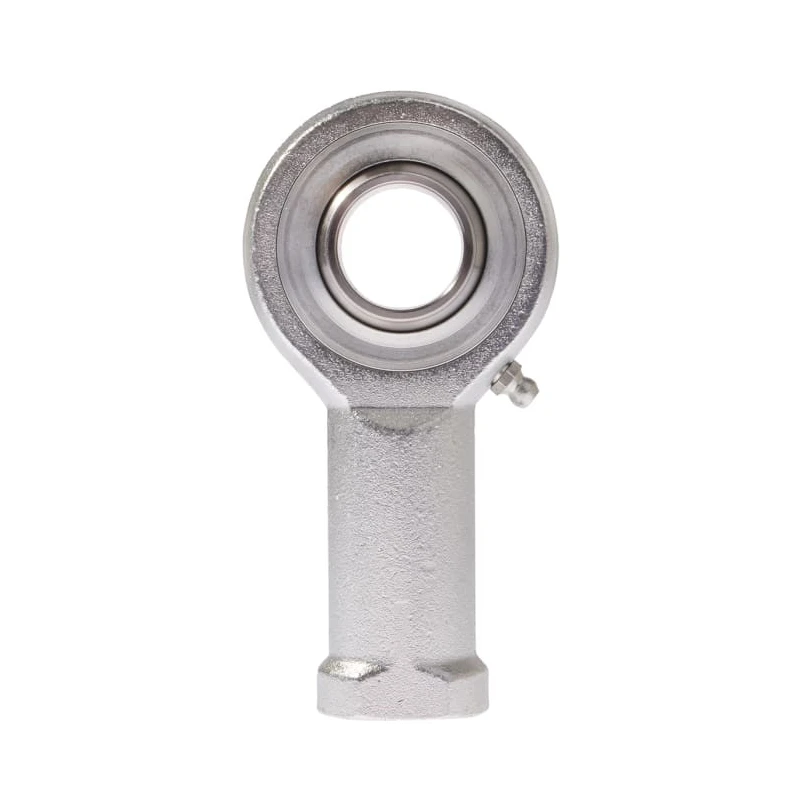

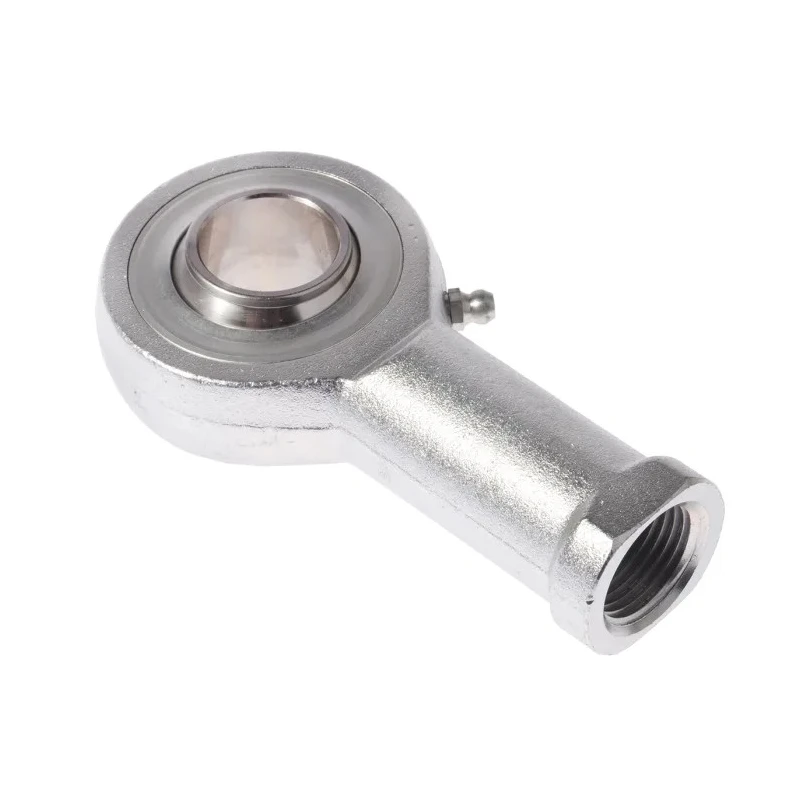

Durbal M22 x 1.5 Female Forged Steel Rod End 22mm Bore Metric BRF 22-00-501

Durbal BRF 22-00-501 forged steel rod end with M22 x 1.5 female connection and a 22mm bore diameter is engineered for demanding mechanical and fluid power applications. This premium line rod end is designed to offer low maintenance and high reliability, featuring greasable female threads and an integral self-aligning ball bearing.

The rod end housing is made from forged steel, tempered and case hardened with a ground and lapped bearing race, finished with a surface galvanization for corrosion resistance. The inner ring consists of hardened, superfine ground ball bearing steel that supports smooth rotation under load.

It operates within a temperature range from -20°C to +120°C and accommodates a dynamic load rating of 14.2 kN and a static load rating of 7.5 kN. The bearing clearance ranges between 15 to 40 microns radial, ensuring high performance and precision alignment.

The rod end has a right-hand metric thread standard, with an overall width of 111mm and an outside diameter of 54mm. Lubrication using Polyrex EP2 or soap complex is recommended for extended product life and reduced upkeep.

Ideal for industrial machinery, hydraulic systems, construction equipment, and manufacturing applications requiring durable and precise bearing solutions. Manufactured in Germany, this rod end meets the highest quality standards without any additional certifications.

Constructed from forged steel with tempered, case hardened bearing race for durability. Features a right-hand metric thread and female greasable connection. Operational temperature range from -20°C to +120°C. Dynamic load rating of 14.2 kN and static load rating of 7.5 kN ensures robust performance.

Bearing clearance between 15 to 40 microns radial provides smooth self-aligning function. Overall width measures 111mm with an outside diameter of 54mm. Inner ring made from hardened, superfine ground ball bearing steel.
