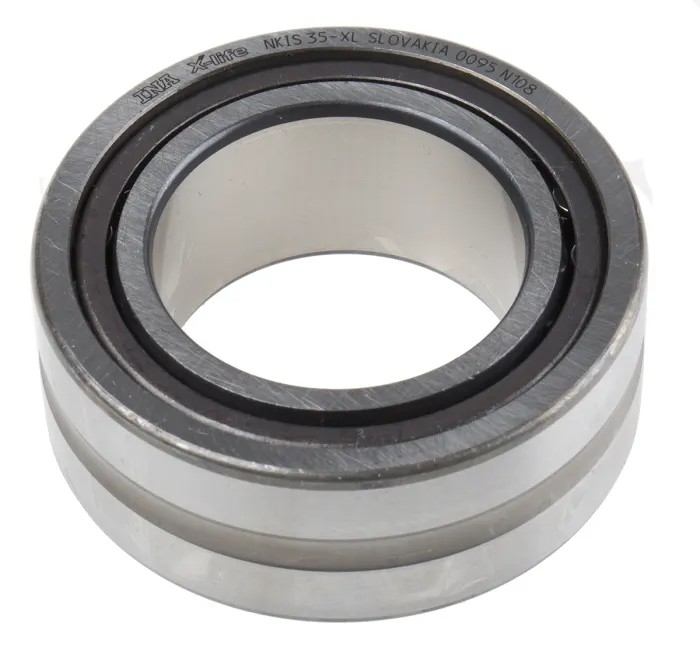

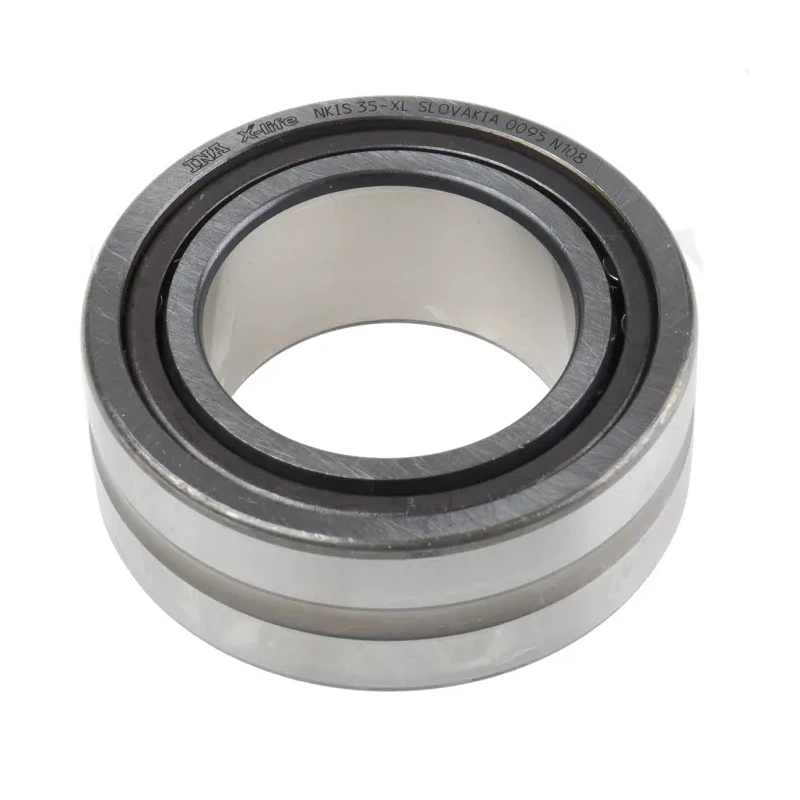

INA Needle Roller Bearing, 35 mm Inside Diameter, 58 mm Outside Diameter, Race Width 22 mm, Open End Type NKIS35-XL

INA NKIS35-XL needle roller bearing with 35 mm inside diameter and 58 mm outside diameter is a high-performance open end type bearing designed for demanding mechanical and industrial applications. It features a 22 mm race width and a durable sheet steel cage that ensures robust operation under heavy radial loads.

This bearing is a single-row unit with optimized X-life raceway surfaces providing longer rating life and improved load carrying capacity. It is capable of maximum speeds up to 11,000 rpm for both oil and grease lubrication environments, and a limiting speed of 10,200 rpm.

With a static load rating of 57,000 N and a dynamic load rating of 44,000 N, the NKIS35-XL needle roller bearing is engineered for reliable performance in industrial machinery, automotive components, manufacturing equipment, and HVAC systems.

The bearing lacks sealed end options as it is an open type but offers excellent raceway quality for extended durability. It is constructed without specific standards or approvals listed but maintains compliance with typical INA bearing design quality.

This product is ideal for applications requiring compact, high load capacity needle roller bearings with precise bore and outer dimensions. It supports both oil and grease lubrication methods, facilitating versatile maintenance and operational conditions.

Features a race width of 22 mm allowing optimal fit. Constructed with a sheet steel cage for durability. Designed with an open end type for versatile applications. Single-row needle roller bearing providing effective radial load support.

Maximum speed ratings up to 11,000 rpm for both oil and grease lubrication. Static load rating of 57,000 N and dynamic load rating of 44,000 N. X-life optimized raceway surfaces extend durability and service life. Suitable for industrial, manufacturing, automotive, and mechanical machinery uses.

Compliant with standard bearing quality requirements but no specific certifications indicated. Explore more INA Roller Bearings and components on EnvMart to find compatible parts and accessories suited for your industrial applications.
