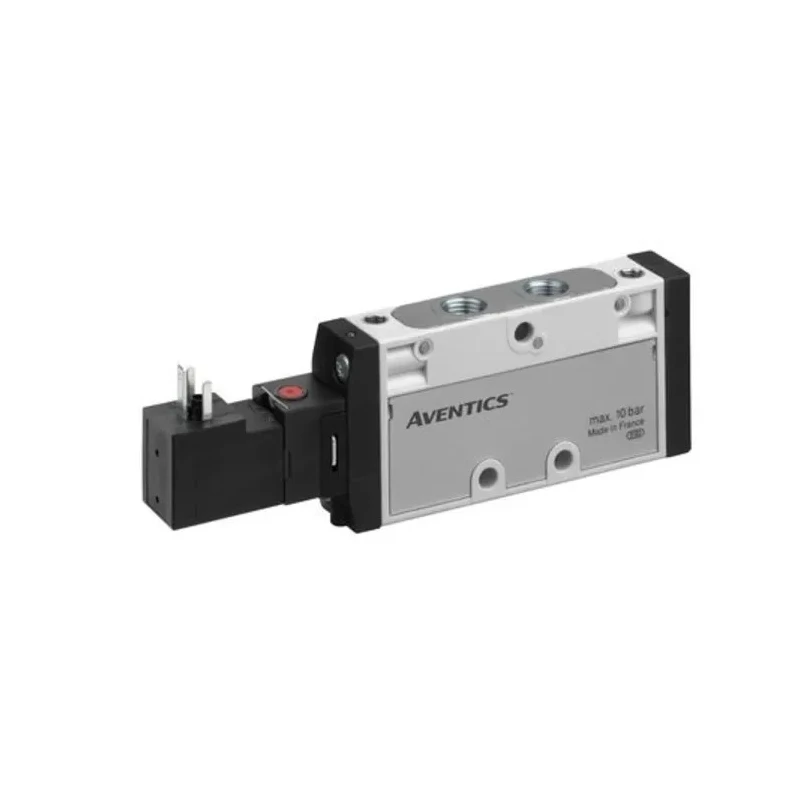

EMERSON ? AVENTICS Pneumatic Solenoid Valve Pilot G 1/8 Inch Manifold Strip Mount 24V DC 5 Ports 10 bar TC08 0820060076

EMERSON AVENTICS 0820060076 Pneumatic Solenoid Valve Pilot G 1/8 Inch is a manifold strip mount valve designed for industrial pneumatic systems. It operates on 24V DC power and supports a maximum operating pressure of 10 bar. The valve features 5 ports and a 5/2 function configuration with 2 positions, suitable for precise directional control of compressed air.

Constructed with a polyamide and fibreglass reinforced body, the valve is robust and suitable for demanding industrial environments. The seals are made from Acrylonitrile Butadiene Rubber and Polyurethane, ensuring reliable performance under varied conditions.

This valve supports a pilot actuation type, facilitating effective control with a spool valve that does not overlap during operation. It accommodates a maximum flow rate of 800 L/min, enabling efficient air flow management.

Temperature tolerance ranges from a minimum of -10°C to a maximum of 50°C, making it appropriate for typical industrial temperature conditions. The valve also features a broad pilot pressure range from -0.9 bar minimum to 10 bar maximum, including an external pilot option that allows vacuum applications.

The compact 17 mm wide body allows for mounting on 'P' strip manifolds, offering modular assembly options. This model is equipped with manual override with detent for the ease of manual operation when required. The valve is designed for continuous duty cycle operations at 100% duty rating.

Manufactured in France, this product meets rigorous quality standards and is ideal for use in pneumatic industrial applications, fluid power systems, automated machinery, manufacturing processes, and HVAC control systems.

The valve has a manifold strip mount type for easy installation. Operates with pilot actuation for efficient control. Body constructed from polyamide and glass fibre for durability. Features a 5/2 valve function with 2 positions and 5 ports.

Seal materials include Acrylonitrile Butadiene Rubber and Polyurethane for reliable sealing. Maximum operating temperature is 50°C, with a minimum of -10°C. Maximum pilot pressure is 10 bar and the minimum pilot pressure is -0.9 bar.

Maximum flow rate is 800 liters per minute with a spool valve configuration. Voltage rating of 24V DC ensures compatibility with industrial control systems. Designed and manufactured in France for high-quality standards.
