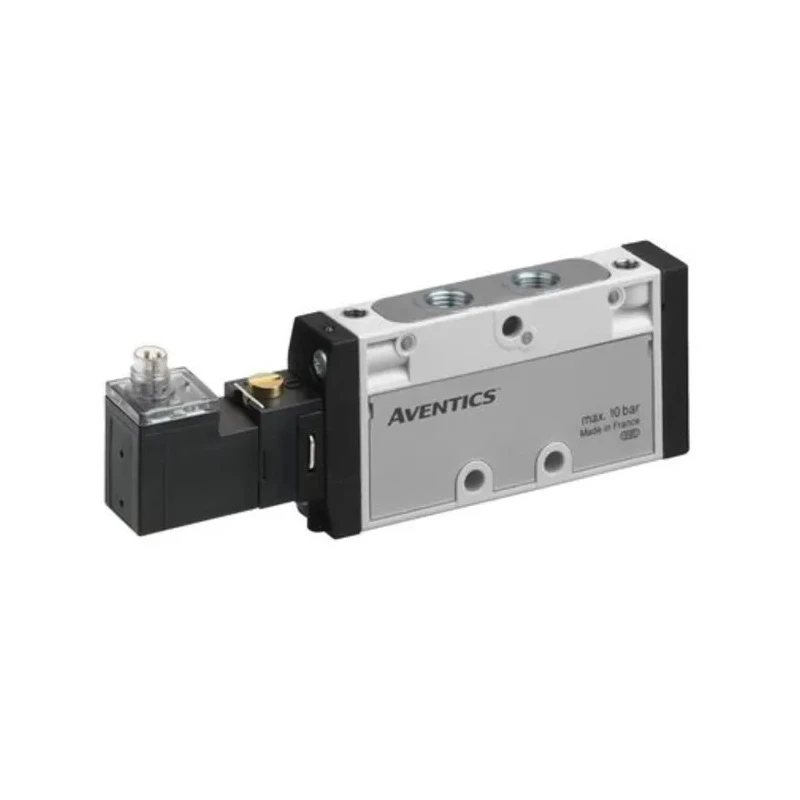

EMERSON ? AVENTICS Pneumatic Solenoid Valve Pilot G 1/8 Inch 5/2 Way 24V DC TC08 Series R422100970
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 24V dc |
| Brand | EMERSON ? AVENTICS |
| Body Material | Polyamide, Fibreglass |
| Maximum Operating Pressure | 10 bar |
| Model | R422100970 |
| Mount Type | Manifold Strip |
| Series | TC08 |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 50°C |
| Thread Size | 1/8 in |
| Number of Positions | 2 |
| Port Size | 1/8 in G |
| Seal Material | Polyurethane, Acrylonitrile Butadiene Rubber |
| Minimum Operating Temperature | -10°C |
| Actuation Type | Pilot |
| Maximum Flow Rate | 800L/min |
| Connection Thread Standard | G 1/8 |
| Minimum Pilot Pressure | -0.9bar |
| Valve Function | 5/2 Way |
Key Features
- Constructed with polyamide and fiberglass reinforced body for enhanced durability.
- Operates efficiently at a maximum pressure of 10 bar and pilot pressure up to 10 bar.
- Designed for manifold strip mount with a 5-port configuration.
- Features polyurethane and acrylonitrile butadiene rubber seals for reliable performance.
- Handles maximum flow rate of 800 L/min suitable for diverse pneumatic applications.
- Supports operation temperature range from -10°C to 50°C ensuring versatility.
- Includes manual override and external pilot option for vacuum applications.
- Non-overlapping spool valve design with 2 positions for precise actuation.
Product Description
EMERSON AVENTICS model R422100970 is a Pneumatic Solenoid Valve from the TC08 Series, engineered for precision control in pneumatic systems with a pilot actuation type and 24V DC voltage. This valve features a durable polyamide and fiberglass reinforced body combined with polyurethane and acrylonitrile butadiene rubber seals to withstand industrial use conditions.
It offers a 1/8 inch G port size and is designed as a 5/2 way valve with 5 ports, ideal for manifold strip mounting. The device can operate under a maximum pressure of 10 bar and a maximum pilot pressure of 10 bar with a minimum pilot pressure of -0.9 bar, allowing application in diverse pneumatic configurations including vacuum applications.
The valve supports a high maximum flow rate of 800 liters per minute from its compact 17mm wide body, enabling efficient fluid control with a non-overlapping spool valve design. It operates reliably within a temperature range of -10°C to 50°C, making it suitable for various industrial and manufacturing environments.
The TC08 Series valves allow for 100% duty cycle operation, manual override capability with detent, and support particle sizes up to 5 microns with oil content in compressed air between 0 to 5 mg/m3. This valve is ideal for fluid power tools, pneumatic control systems, and automation in sectors such as industrial manufacturing, HVAC, and laboratory pneumatic applications.
Constructed with polyamide and fiberglass reinforced body for durability. Maximum operating pressure of 10 bar for robust performance. Five-port manifold strip mount design enhances installation flexibility. Sealed with polyurethane and acrylonitrile butadiene rubber for dependability.
High flow capacity at 800 L/min caters to various pneumatic needs. Wide operating temperature range from -10°C to 50°C suits diverse environments. Supports vacuum applications through external pilot option. Manual override with detent for operational control.
Non-overlapping spool valve ensures precise actuation with two positions.
Choose EMERSON AVENTICS Pneumatic Solenoid Valves for reliable industrial, mechanical, and fluid power pneumatic valve solutions. Explore more pneumatic valves and related products at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 10 bar.
This model can handle a maximum flow rate of 800 liters per minute.
The valve operates at a voltage of 24V DC.
The body of the valve is constructed from polyamide and fiberglass for enhanced durability.
It operates reliably within a temperature range of -10°C to 50°C.
This solenoid valve features a 5-port configuration.
It is designed for manifold strip mounting.
The minimum pilot pressure is -0.9 bar.
The seals are made from polyurethane and acrylonitrile butadiene rubber.
This model utilizes pilot actuation.
Yes, it includes a manual override with detent for operational control.
It is suitable for various pneumatic applications, including fluid power tools and automation in industrial settings.
