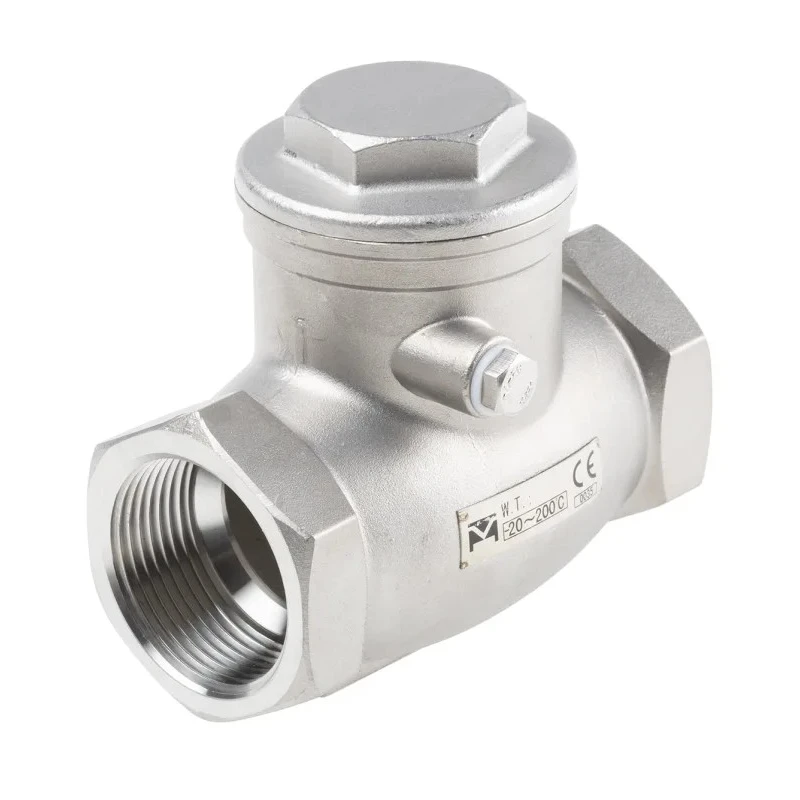

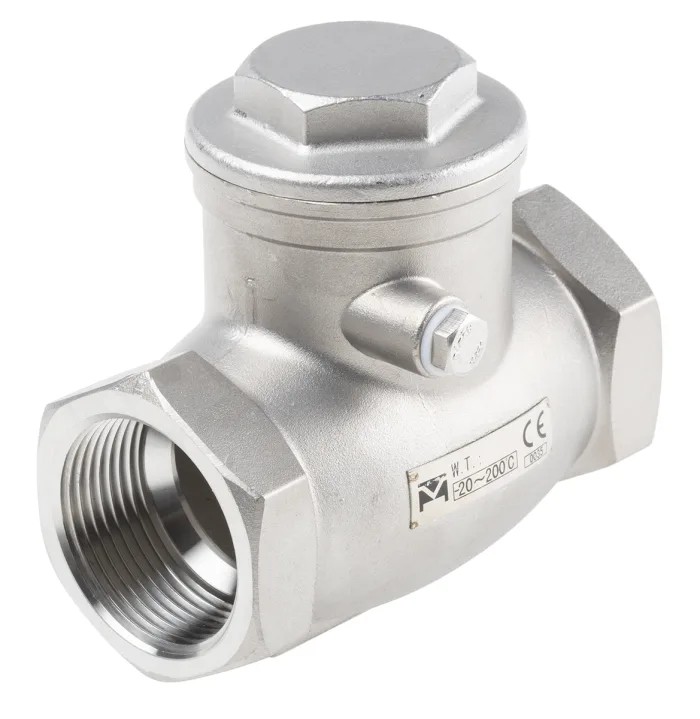

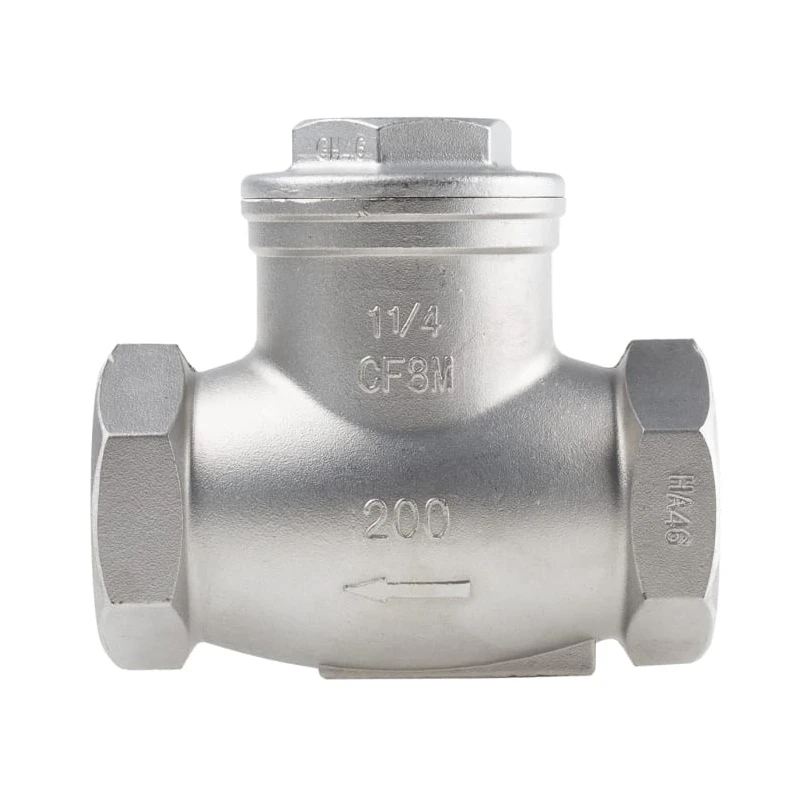

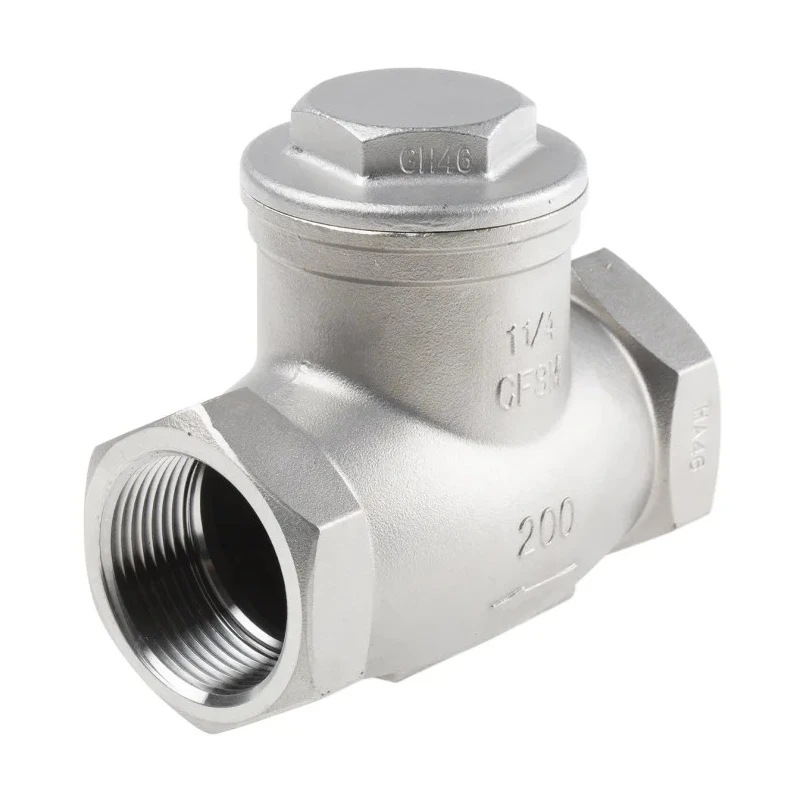

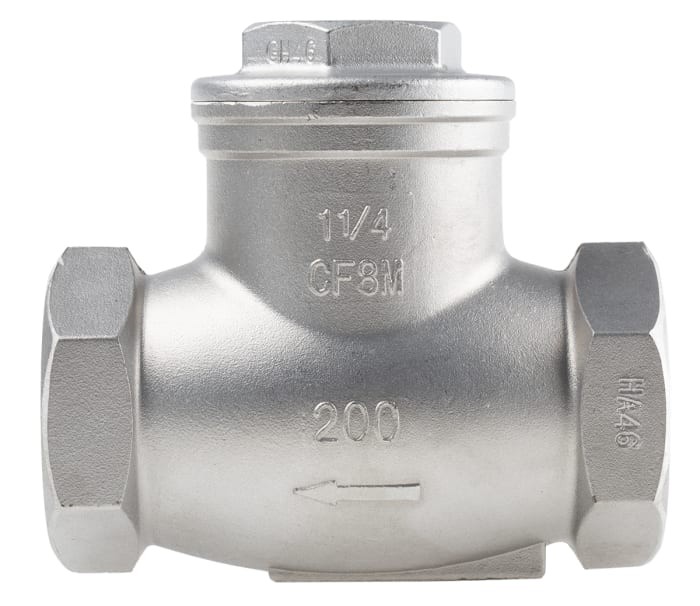

RS PRO Stainless Steel Threaded BSP Single Check Valve 1 to 1/4 in, 14 bar 499-2666

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Stainless Steel Threaded BSP Single Check Valve 1 to 1/4 in, 14 bar 499-2666

Name: RS PRO Stainless Steel Threaded BSP Single Check Valve 1 to 1/4 in, 14 bar 499-2666
Brand: RS PRO
SKU: 312121
Price: 175.35 USD
Availability: InStock



Category Check Valve Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Body Material	Stainless Steel
Maximum Operating Pressure	14 bar
Outlet Connection Type	Threaded
Model	499-2666
Maximum Operating Temperature	200°C
Sub Type	Single
Thread Type	ASME B1.20.1 (NPT), DIN 2999 & BS21, ISO7/1 & EN10226
Minimum Operating Temperature	-20°C
Inlet Port Size	1 to 1/4 in
Inlet Thread Standard	BSP
Inlet Port Gender	Female
RS PRO Nitrile Rubber (NBR) Pipe Insulation x 3 mm x 15 mBrand	RS PRO
W.P	200 WOG
W.T	-20°C - 200°C (-4°F - 392°F)
8888 Process Check ValveBrand	NEUTRAL

Key Features

Constructed with durable CF8M stainless steel for corrosion resistance.
Operates at a maximum pressure of 14 bar for industrial applications.
Threaded inlet and outlet connections with BSP thread standards ensure secure fittings.
Suitable for temperature ranges from -20°C to 200°C.
Female inlet and outlet port genders with sizes ranging from 1 to 1/4 inch.
Non-return swing check valve allowing flow in one direction only.
Meets DIN 1.4408 standards for material quality.
Ideal for mechanical, plumbing, fluid power, and pipeline systems.

Product Description

RS PRO 499-2666 Stainless Steel Threaded BSP Single Check Valve 1 to 1/4 in, 14 bar is a high-quality swing check valve manufactured using CF8M stainless steel, providing excellent corrosion resistance and durability. This valve is designed to ensure liquid flow in only one direction, protecting pumps and piping systems from backflow.

The valve features threaded inlet and outlet connections with BSP threading, measuring 1 to 1/4 inches in size, suitable for secure and leak-proof installation in industrial and plumbing pipelines. It operates effectively under a maximum pressure of 14 bar and can operate in temperatures ranging between -20°C and 200°C, making it well-suited for diverse mechanical, fluid power, and pipeline applications.

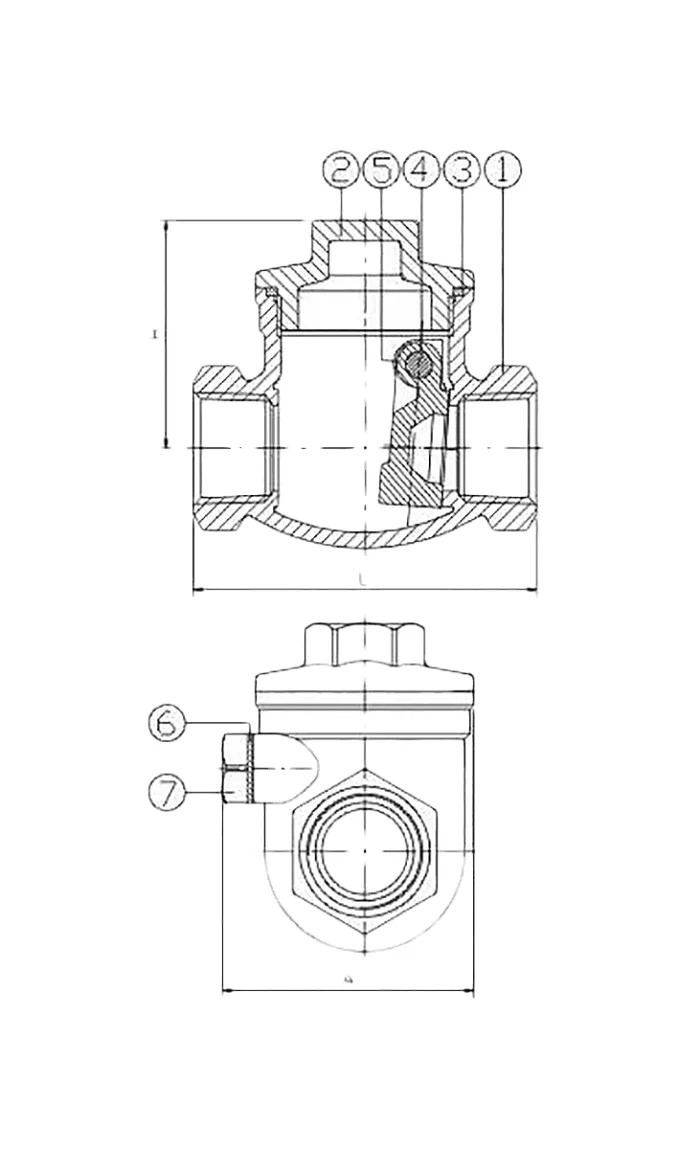

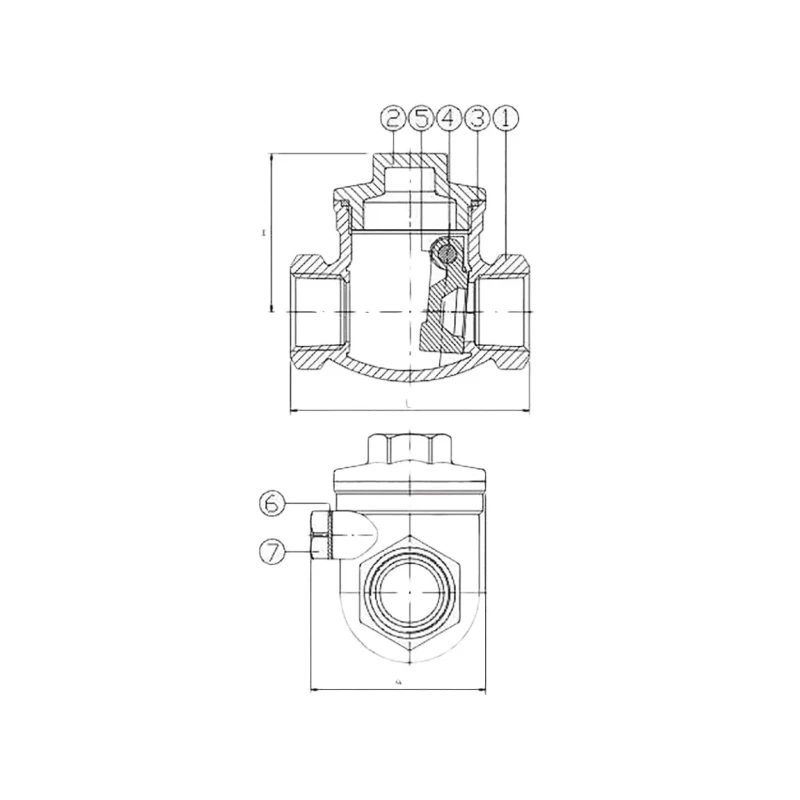

Key materials include ASTM A351-CF8M for the body, cap, and disc, with PTFE seals and AISI 316 stainless steel plug, ensuring reliability and chemical resistance. This valve complies with DIN 1.4408 standards for stainless steel check valves.

Its swing check design facilitates non-return functionality, protecting systems from damage caused by reverse flow. It is ideal for use in various industrial manufacturing, water treatment, HVAC, and fluid control systems where reliable check valve performance is critical.

Constructed of CF8M stainless steel for enhanced corrosion resistance. Threaded BSP inlet and outlet, female ports sized 1 to 1/4 inch. Maximum operating pressure of 14 bar for high-pressure fluid systems. Operating temperature range from -20°C to 200°C to suit various environments.

Non-return swing valve type preventing backflow damage. Standards compliant with DIN 1.4408 for material quality assurance. Body, cap, and disc manufactured to ASTM A351-CF8M specifications. Seal and gasket made of PTFE for chemical and temperature resistance.

Plug composed of AISI 316 stainless steel, bolt of AISI 304 for durability. Suitable for industrial, plumbing, mechanical and fluid power applications.

This RS PRO Check Valve offers a robust, reliable solution for liquid flow control in industrial and commercial settings. For more high-quality valves and industrial supplies, explore the extensive EnvMart catalog for matching products that meet the highest standards.
