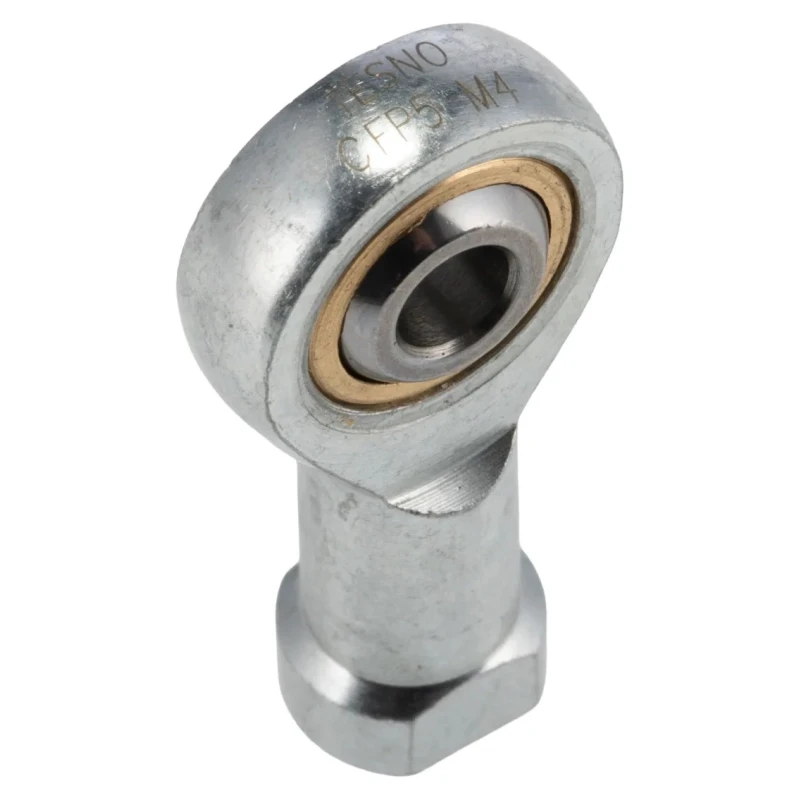

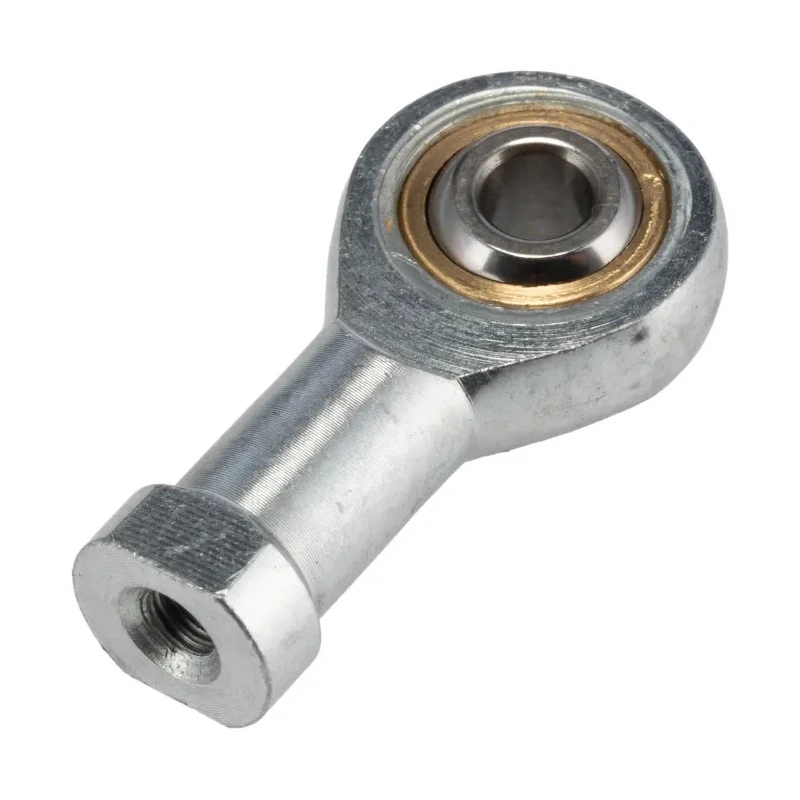

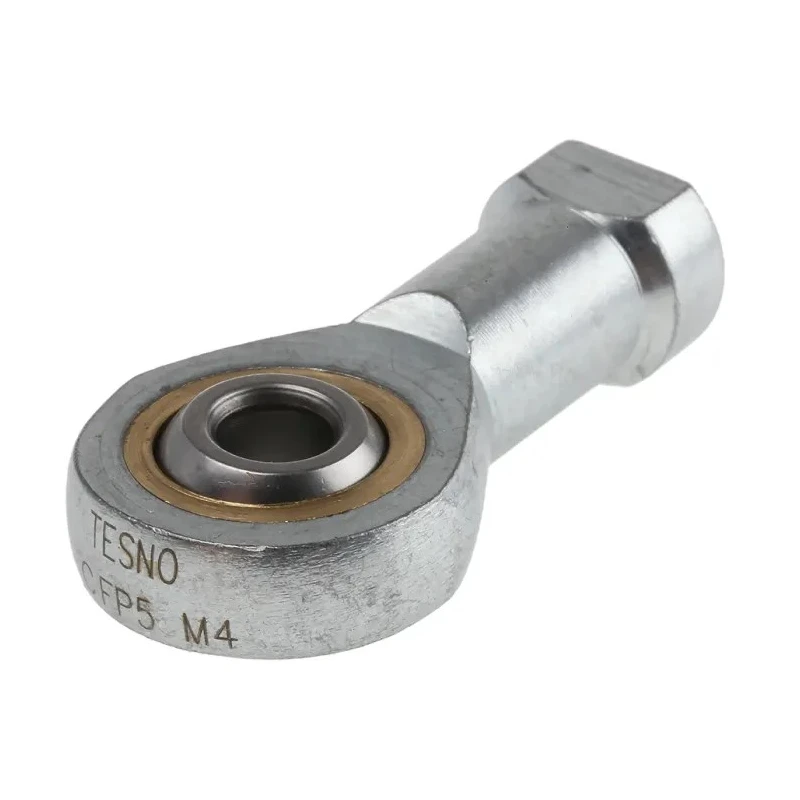

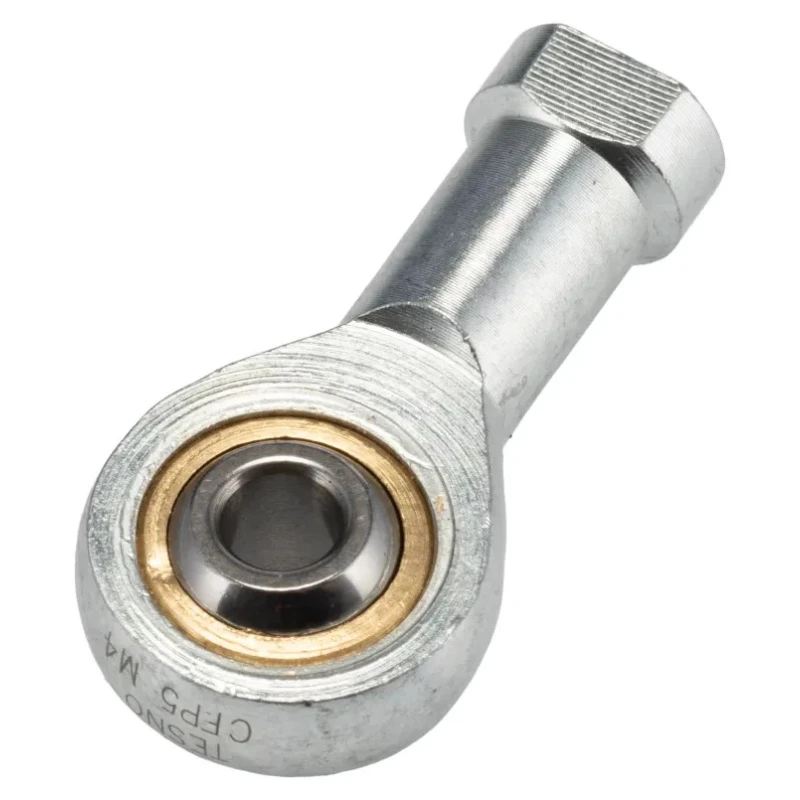

SMC Female Steel Piston Rod Ball Joint M4 x 0.7 Thread, 5mm Bore, Metric Thread, Steel, Temperature Range -20°C to 80°C KJ4D

SMC KJ4D female steel piston rod ball joint is designed for pneumatic cylinder rod-ends requiring a durable articulated connection where alignment changes occur. Featuring an M4 x 0.7 metric female thread and 5mm bore diameter, this component offers precise compatibility with small-bore piston rods.

Manufactured from robust steel, it provides excellent mechanical load resistance and reliable performance in industrial pneumatic systems. Its compact 18mm outside diameter and 11mm overall width allow installation in tight spaces common in automation equipment.

The ball joint is engineered to operate within a broad temperature range from -20°C to 80°C, making it suitable for diverse environmental conditions encountered in industrial, manufacturing, and material handling applications.

The design supports direct screw-in assembly without the need for additional adaptors, simplifying installation and maintenance. Its articulation capability aids in alignment correction on actuator rods and push-pull assemblies.

Typical uses include linkage joints on compact automation rigs, small-bore pneumatic cylinders, and material handling devices requiring reliable articulated connections in constrained spaces.

Durable steel construction resists wear and mechanical stress. Metric M4 x 0.7 female thread simplifies integration with standard rods. Compact form factor optimizes space usage in assemblies. Wide operating temperature range enhances application versatility.

Precise 5mm bore diameter ensures compatibility with small cylinders. Suitable for pneumatic cylinder rod-end replacements and linkages. Enables reliable and secure push-pull rod assemblies. Ideal for industrial automation and material handling environments.

This piston rod ball joint facilitates robust and adaptable pneumatic linkages while maintaining compact dimensions to suit automation and manufacturing requirements. Browse more industrial Rod Ends and pneumatic components on EnvMart to find compatible system parts.
