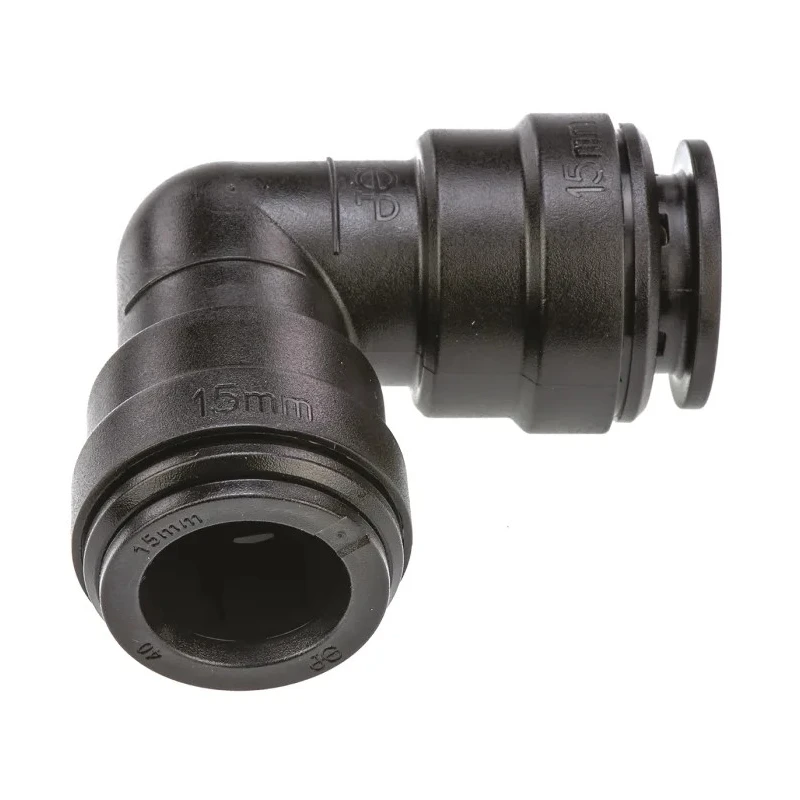

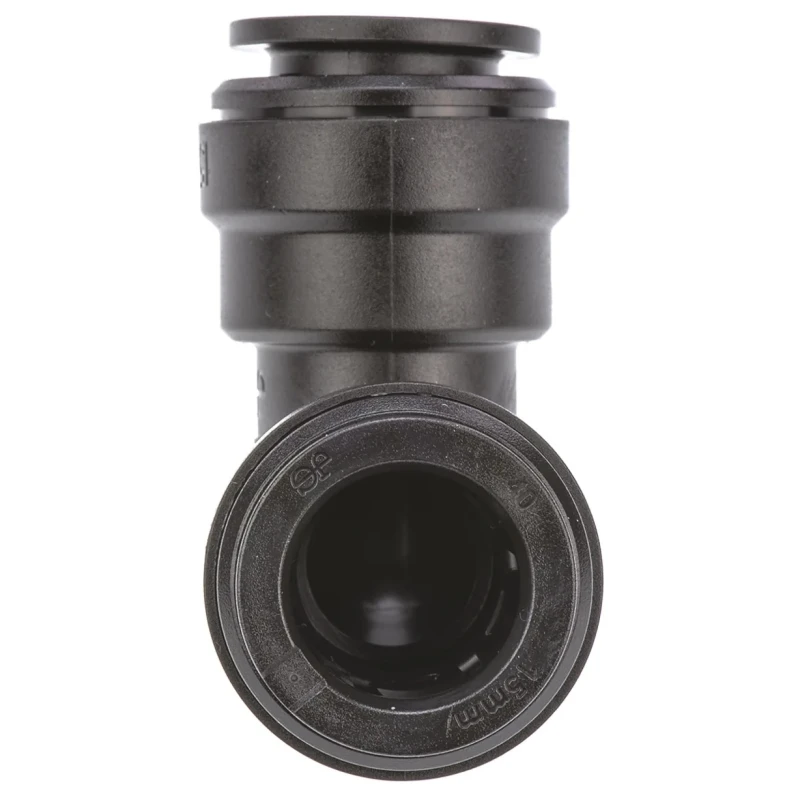

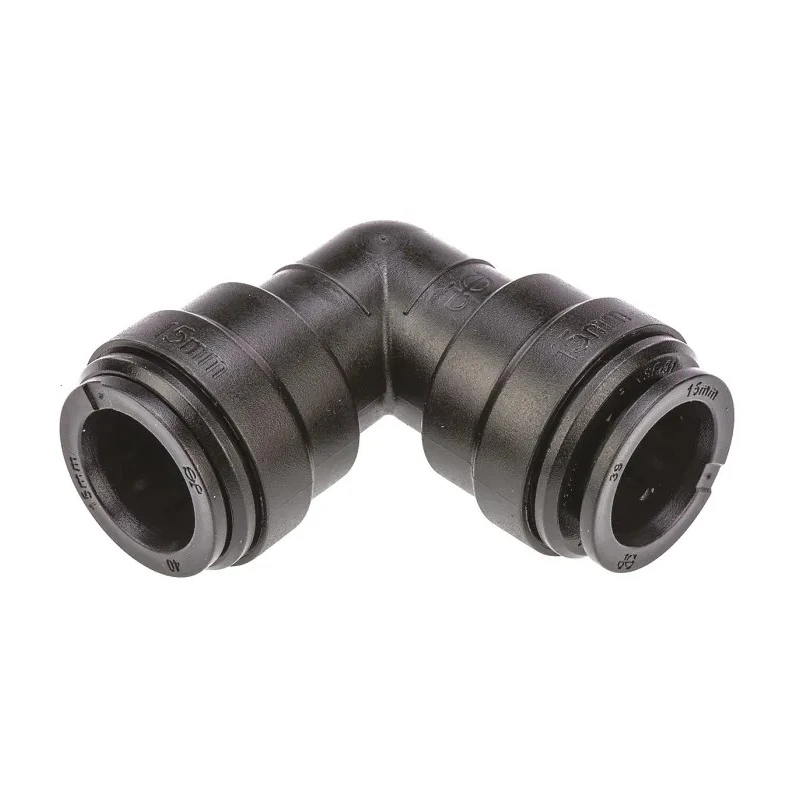

JG Speedfit 90° Push-in Plastic Pipe Fitting Elbow PM0315E

JG Speedfit PM0315E is a 90° push-in plastic pipe fitting elbow made primarily for mechanical, fluid power, and plumbing pipeline applications. Manufactured using chlorinated polyvinyl chloride, this elbow fitting ensures longevity and resistance to chemical exposure. It is ideally suited for connecting pipes in systems involving potable liquids, foodstuffs, and compressed air.

The fitting features a body built from black acetal co-polymer (unfilled) and incorporates black nitrile 'O' rings for sealing. Its collets are crafted from the same acetal co-polymer with integrated stainless steel teeth, providing secure tube retention without causing deformation or restricting flow. The unique collet locking system simplifies assembly and disassembly, promoting easy system reconfiguration when necessary.

Operating conditions for this fitting range from 0°C minimum to 70°C maximum temperature, with working pressures rated at 10 bar (145 psi) at 23°C and 7 bar (101 psi) at 70°C. It is designed for use with rigid (unplasticised) Nylon 12 pipes conforming to tight dimensional tolerances (+0.05 to -0.10mm OD).

The John Guest Speedfit system is recognized for its simple push-in connections, eliminating the need for threaded pipes or solvent welding, enhancing installation speed and reducing potential leak points in pneumatic or fluid systems. This elbow ensures safe, secure, and leak-proof joints ready for immediate use.

Typical industrial use cases include plumbing, HVAC pipeline assemblies, pneumatic air ring main systems, water treatment plants, food and beverage processing lines, and other commercial or manufacturing fluid delivery applications.

Constructed from chlorinated polyvinyl chloride for chemical resistance. Push-in connection type enables quick installation without threading. Black acetal co-polymer body with nitrile 'O' rings ensure leak-proof seals. Supports operating temperatures from 0 to 70°C with high working pressure ratings.

Compatible with Nylon 12 pipes with precise tolerances for secure fit. Includes instruction leaflet for proper installation and maintenance.

This set contains the 90° equal elbow fitting designed under the John Guest Speedfit push-in fitting system. Explore more Plastic Pipe Fittings and accessories within EnvMart's plumbing and pipeline category for comprehensive fluid power solutions.
