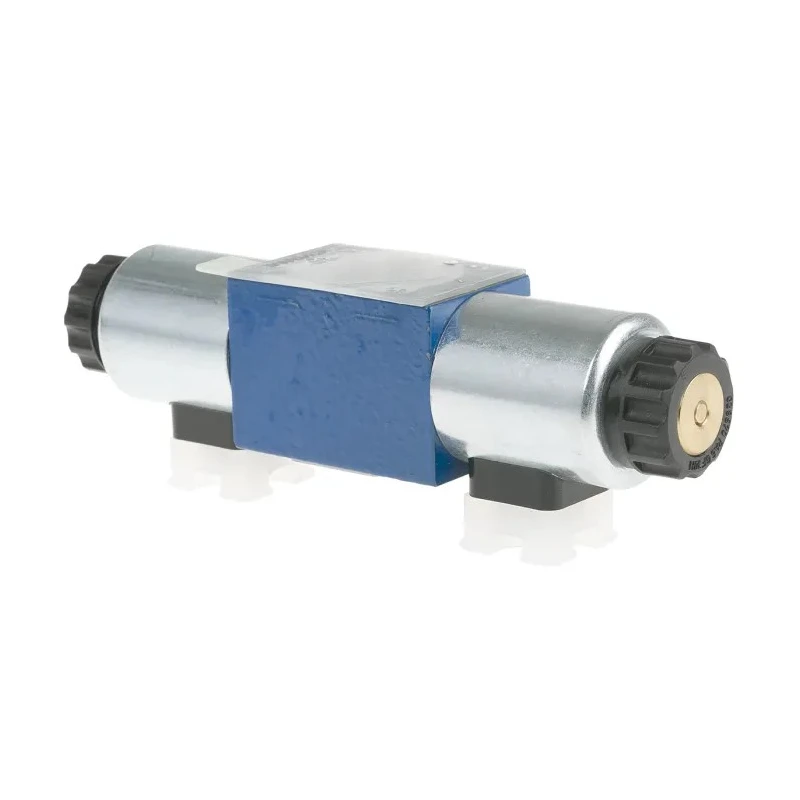

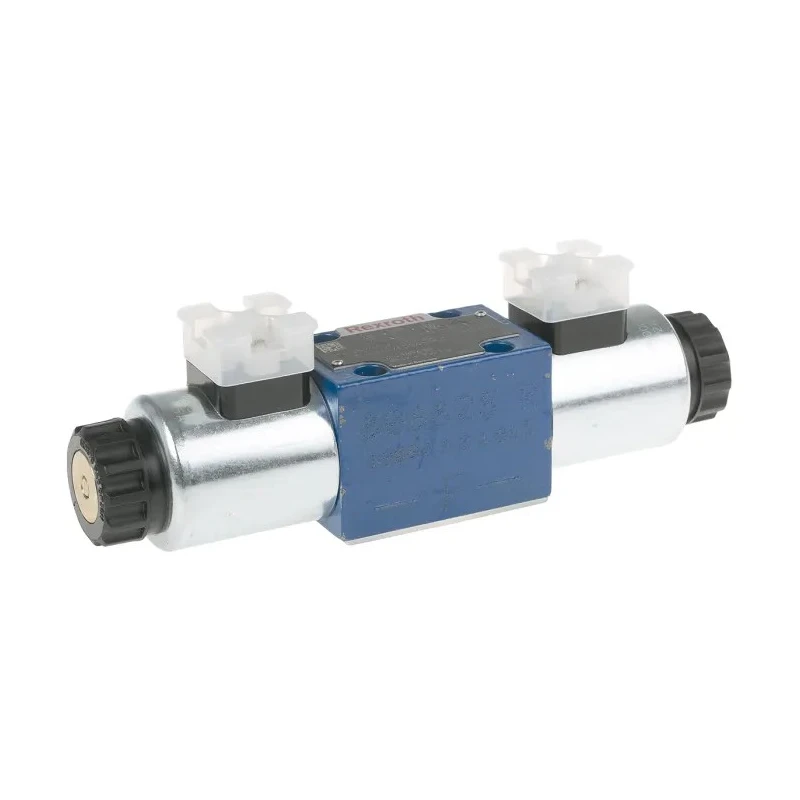

Bosch Rexroth Solenoid Operated Directional Spool Valve Type E, 230V, 60L/min, 350bar R900561278
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 230V |
| Brand | Bosch Rexroth |
| Model | R900561278 |
| Series | 6x |
| Number Of Ports | 4 |
| Maximum Operating Temperature | 50°C |
| Number of Positions | 2 |
| Seal Material | Fluorine Rubber, Nitrile Butadiene Rubber |
| Minimum Operating Temperature | -20°C |
| Actuation Type | Solenoid |
| Supply Voltage | 24V dc |
| Maximum Flow Rate | 60L/min |

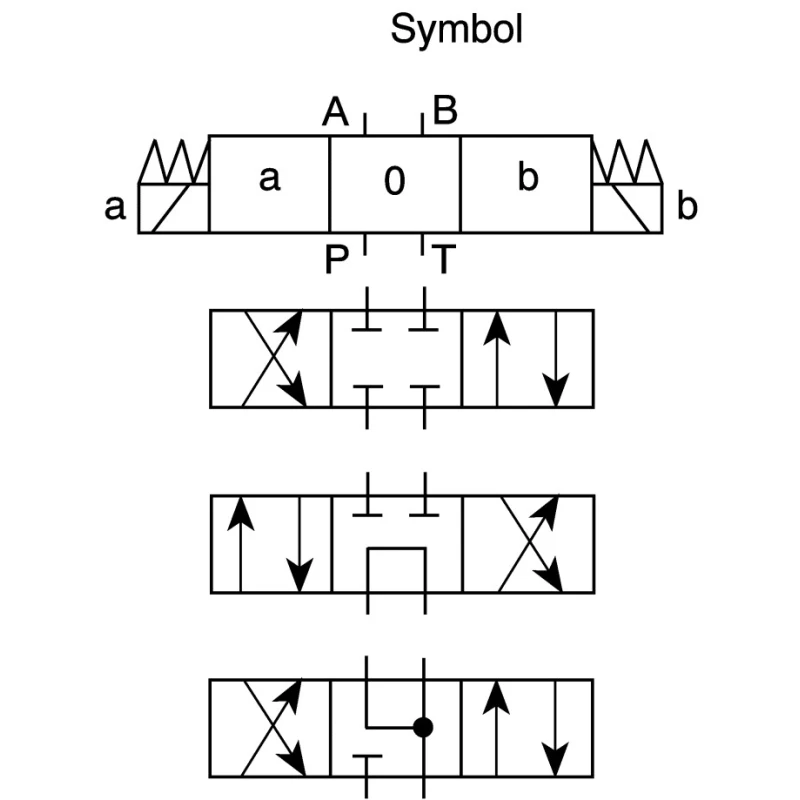

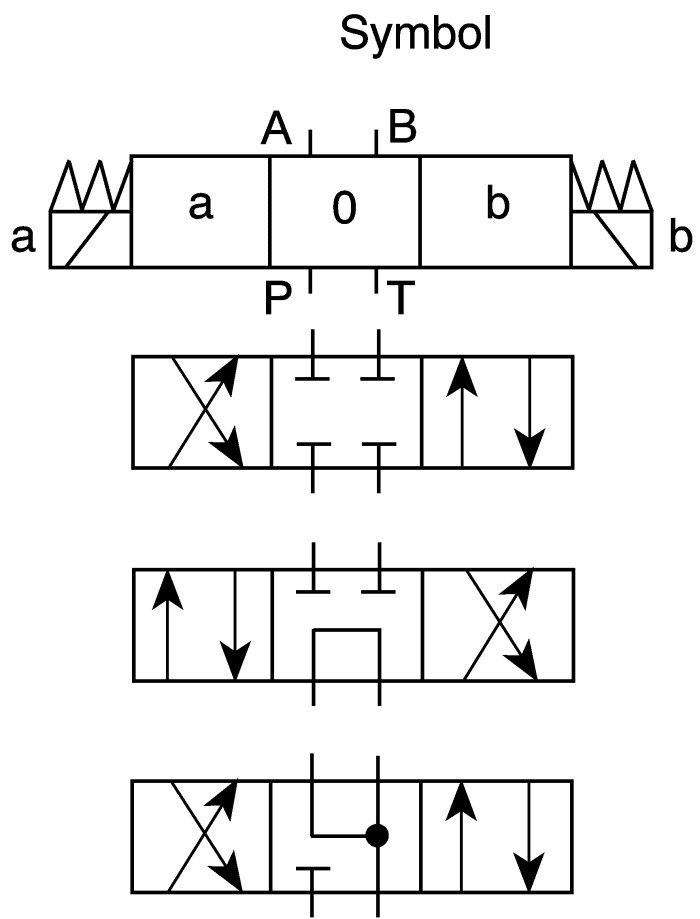

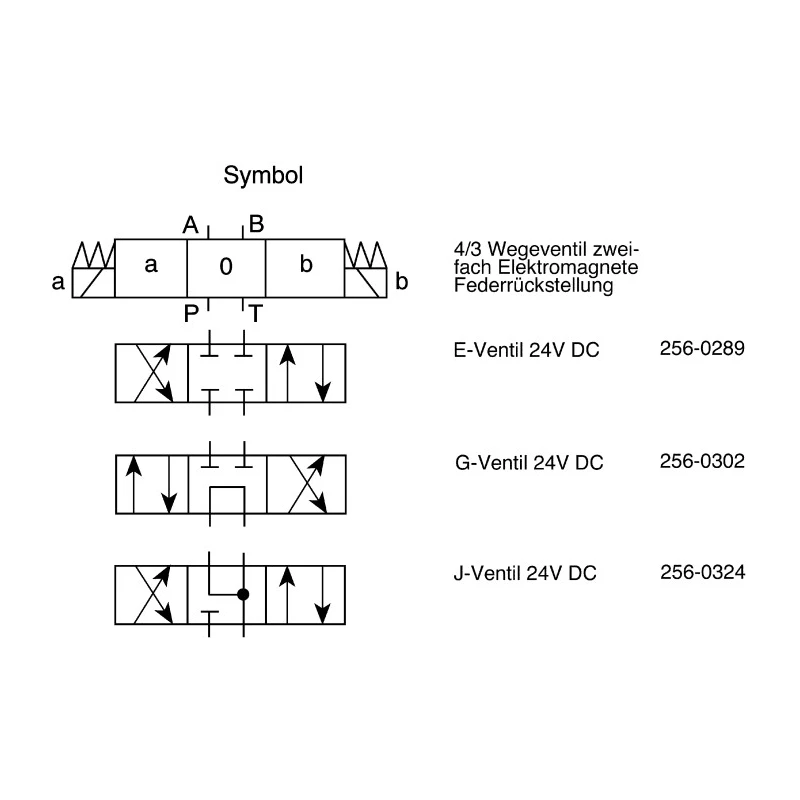

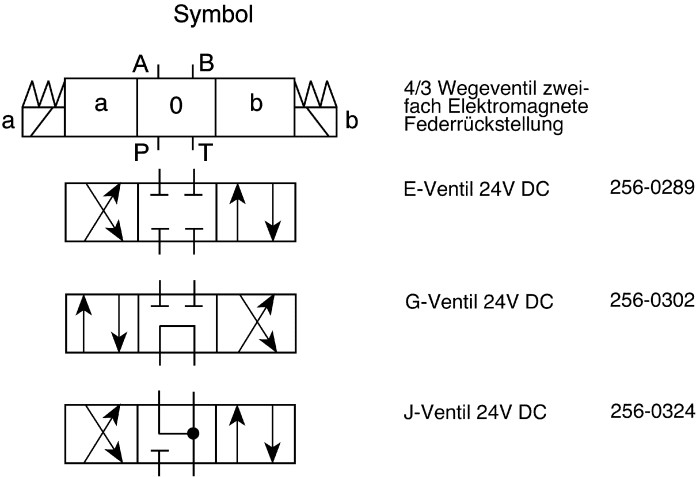

| Spool Type | Type E |
| Standards/Approvals | DIN 24340 form A, DIN EN 60529, EN 60898-1 (VDE 0641-11), EN 60947-2 (VDE 0660-101), EN ISO 13849, IEC 60898, IEC 60947-2, ISO 4401-03-02-0-05, NFPA T3.5.1 R2-2002 D03 |
| Solenoid Type | Double |
| Valve Maximum Operating Pressure | 350bar |
Key Features

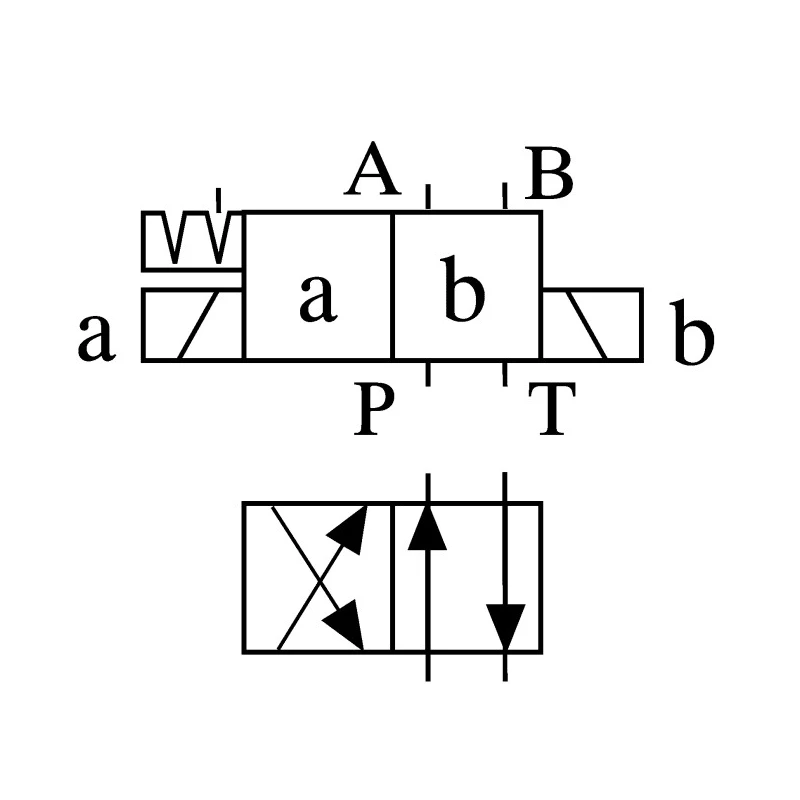

- Operates with double solenoid and 2 spool positions.
- Maximum operating pressure is 350 bar for high performance.
- Seal materials include fluorine rubber and nitrile butadiene rubber for durability.
- Suitable for industrial and hydraulic system applications requiring precise flow control.
- Complies with multiple standards such as DIN 24340 form A and EN 60947-2.
- Built for installation with CETOP 3 size 6 subplate mounting.
- Wet pin DC or AC removable solenoids can be rotated 90 degrees for ease of installation.
- Features emergency hand operation and spring return with detent mechanism.
Product Description
Bosch Rexroth R900561278 is a solenoid operated hydraulic directional spool valve, Type E, that provides efficient flow control with a maximum flow rate of 60 L/min and valve maximum operating pressure of 350 bar. It operates on a 230V power supply and is designed for industrial hydraulic systems requiring precise directional control.
This valve features 2 spool positions and 4 ports, and utilizes fluorine rubber and nitrile butadiene rubber seals ensuring reliability and long service life. The valve series is 6x, with a spool type E and double solenoid actuation.
The valve complies with notable international standards including DIN 24340 form A, DIN EN 60529, EN 60898-1, EN 60947-2, EN ISO 13849, IEC 60898, IEC 60947-2, ISO 4401-03-02-0-05, and NFPA T3.5.1 R2-2002 D03, making it suited for rigorous industrial applications.

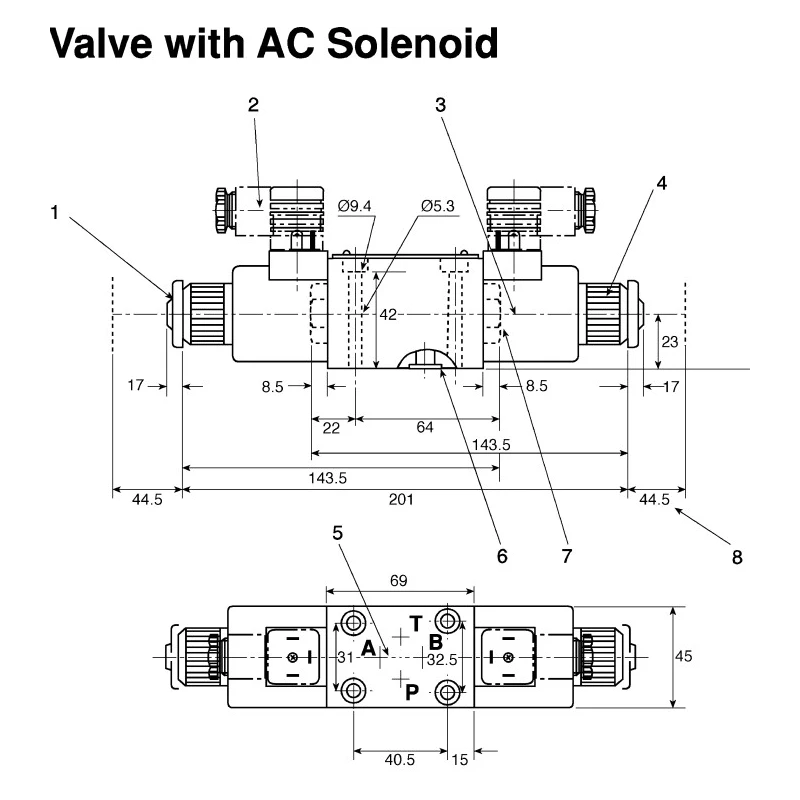

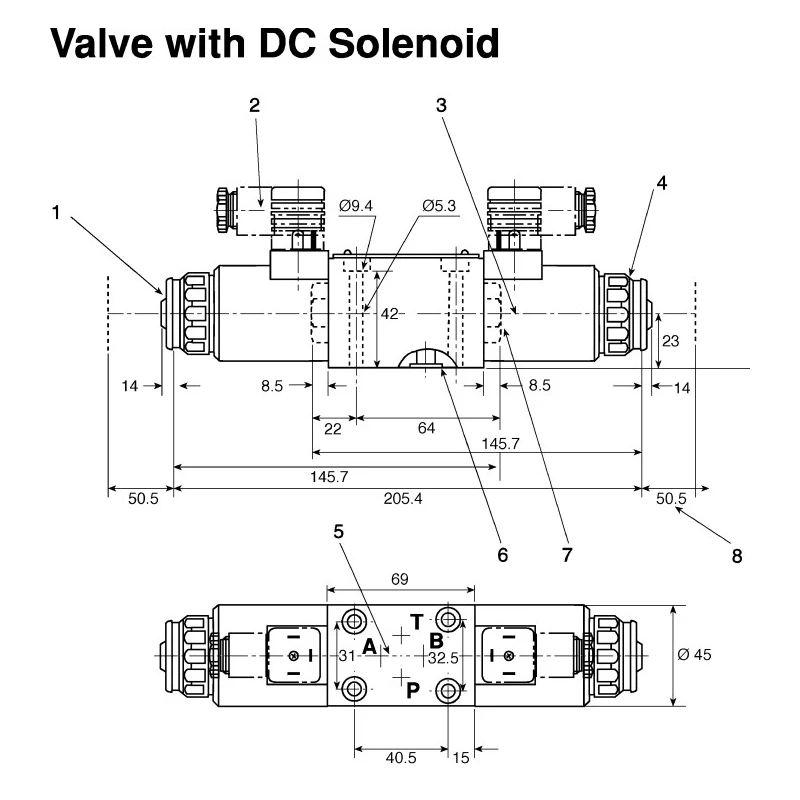

Installation is facilitated via CETOP 3 size 6 subplate mounting, and the valve supports wet pin DC or AC removable solenoids that can be rotated 90 degrees for flexible setup. Emergency hand operation is included for manual override, along with spring return and detent spool control.
The valve operates effectively within a temperature range from -20°C to 50°C, suitable for varied hydraulic environments. Replacement seal kits and solenoid coils for 24V DC and 110V AC are available separately, ensuring ease of maintenance.
Operates with double solenoid and 2 spool positions. Maximum operating pressure of 350 bar. Seal materials: fluorine rubber and nitrile butadiene rubber. Installation via CETOP 3 size 6 subplate mounting. Compliance with DIN, EN, IEC, ISO, and NFPA standards.
Wet pin DC/AC removable solenoids rotatable by 90 degrees. Emergency hand operation and spring return with detent feature. Operating temperature range -20°C to 50°C. Seal kits and replacement coils sold separately.
This Bosch Rexroth R900561278 directional spool valve is ideal for hydraulic systems in manufacturing, construction, industrial machinery, and fluid power applications. It provides reliable, precise flow control and robust performance for demanding conditions. Explore more in the Hydraulic Valves & Manifolds category at EnvMart for advanced hydraulic control components.
Explore more products in our Hydraulic Valves & Manifolds category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this valve is 350 bar.
It has a maximum flow rate capacity of 60 L/min.
This model operates on a supply voltage of 230V.
The seal materials include fluorine rubber and nitrile butadiene rubber.
This valve has 2 spool positions.
The operating temperature range is from -20°C to 50°C.
It uses double solenoid actuation.
It complies with several standards including DIN 24340 form A, EN 60947-2, and ISO 4401-03-02-0-05.
Installation is facilitated via CETOP 3 size 6 subplate mounting.
This valve features 4 ports.
Yes, it includes emergency hand operation and a spring return with a detent mechanism.
Yes, replacement seal kits and solenoid coils for 24V DC and 110V AC are available separately.
