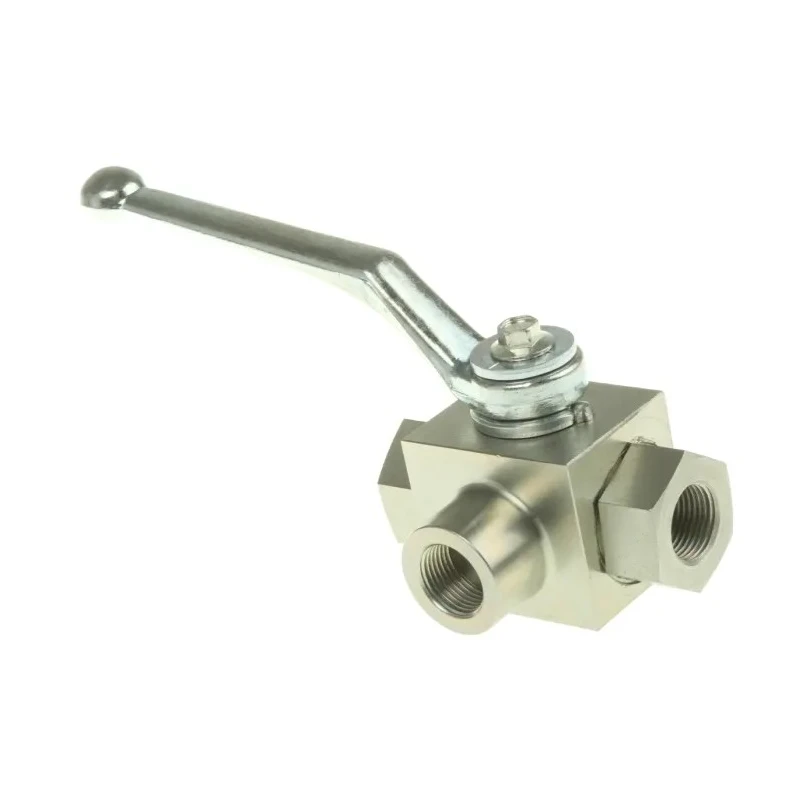

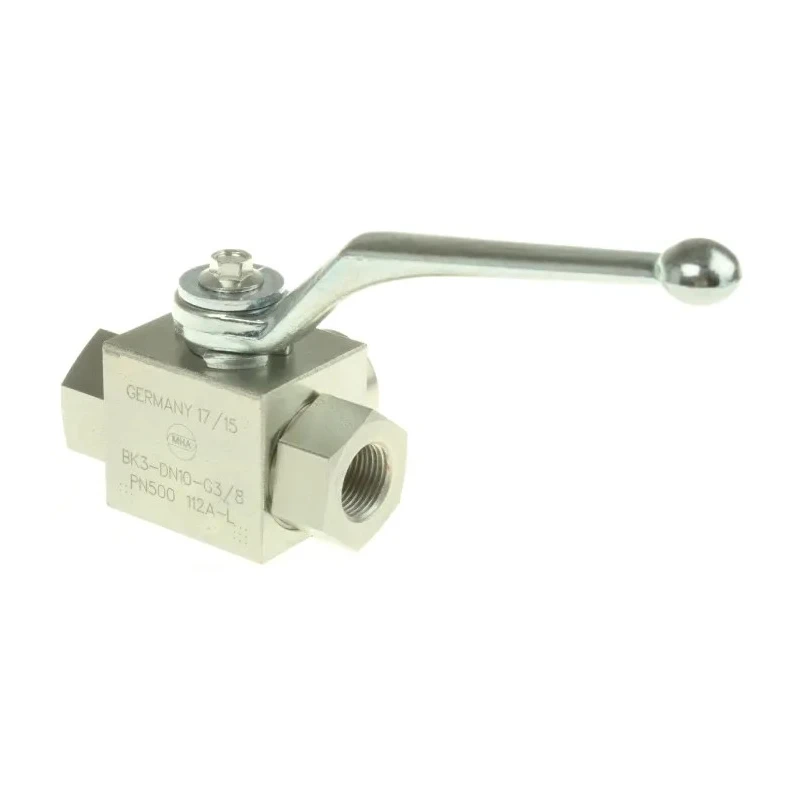

RS PRO Steel Hydraulic Ball Valve 3/8 In Port Size 3 Ports 315 Bar Max Pressure Model 243-1800
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | RS PRO |
| Body Material | Steel |
| Operating Temperature | -20 °C +100 °C |
| Maximum Operating Pressure | 315 bar |
| Model | 243-1800 |
| Series | RS PRO |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 100°C |
| Port Size | 3/8 in |
| Seal Material | Nitrile Rubber, Polyoxymethylene (Ball Seal) |
| Minimum Operating Temperature | -20°C |
| Ball Material | Brass |
| Connection Thread Standard | G |
| RS PRO Chrome Plated Brass Hydraulic Ball Valve GBrand | RS PRO |
| RS PRO Steel Hydraulic Ball Valve BSP ParallelBrand | RS PRO |
| 3/ 8in, RS Stock no | 243-1800 |
| 1/ 2 in, RS Stock no | 243-1816 |
| 3/ 4 in, RS Stock no | 243-1822 |
Key Features
- This hydraulic ball valve features an L-shaped bore for effective flow control.
- The steel body ensures durability and rugged construction for long service life.
- It includes 3 threaded connections and is suitable for mixing or distributing fluid flows.
- The seals are made of nitrile rubber with a polyoxymethylene (Delrin®) ball seat for reliable sealing.
- Operational temperature range is from -20°C to 100°C, suitable for various industrial environments.
- It is designed for use with water and oil applications in hydraulic circuits.
- The valve is manufactured in Germany with no specific standards or approvals listed.
- Its compact line mounting design facilitates integration into hydraulic systems requiring changeover options.
Product Description
RS PRO 243-1800 Steel Hydraulic Ball Valve is a high-quality 3-way hydraulic ball valve designed for industrial fluid power applications. With a robust steel body and brass ball, it provides reliable control and direction of fluid flow in hydraulic systems. The valve features an L-shaped bore suited for mixing or distributing flows, making it ideal for circuits requiring change-over options.
The valve comes with three ports sized at 3/8 inch and is equipped with nitrile rubber seals and a Delrin® polyoxymethylene ball seat, ensuring minimal leakage under a maximum operating pressure of 315 bar. Its operating temperature range spans from -20°C to 100°C, accommodating various industrial and manufacturing applications involving water and oil.
This steel hydraulic ball valve is manufactured in Germany and is constructed for durability with minimal maintenance requirements. The simple yet rugged design makes it a reliable component for hydraulic systems in industrial, construction, manufacturing, and water treatment sectors.
The valve’s threaded G connection standard supports secure installation, and the line mounting format enables compact system integration. This model, RS PRO 243-1800, is part of the RS PRO series of hydraulic ball valves, available in different thread sizes for multiple applications.
This hydraulic ball valve features an L-shaped bore for effective flow control. The steel body ensures durability and rugged construction for long service life. It includes 3 threaded connections and is suitable for mixing or distributing fluid flows.
The seals are made of nitrile rubber with a polyoxymethylene (Delrin®) ball seat for reliable sealing. Operational temperature range is from -20°C to 100°C, suitable for various industrial environments. It is designed for use with water and oil applications in hydraulic circuits.
The valve is manufactured in Germany with no specific standards or approvals listed. Its compact line mounting design facilitates integration into hydraulic systems requiring changeover options.
For reliable and durable hydraulic fluid control, RS PRO Steel Hydraulic Ball Valve 243-1800 offers sturdy construction with precise functionality. Browse our extensive selection of Hydraulic Ball Valves and other hydraulic components at EnvMart for industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 315 bar.
This hydraulic ball valve has a port size of 3/8 inch.
The seals are made of nitrile rubber, and the ball seat is made of polyoxymethylene (Delrin®).
The operating temperature range is from -20°C to 100°C.
This model features three ports.
It uses a G connection thread standard for secure installation.
The body of this valve is made of steel.
The ball is made of brass.
This hydraulic ball valve is manufactured in Germany.
It is designed for use with water and oil applications in hydraulic circuits.
The valve features an L-shaped bore for effective flow control.
The compact line mounting design facilitates integration into hydraulic systems requiring changeover options.
