INA Roller Bearing Drawn Cup Needle 14 mm ID 20 mm OD Sealed Steel Cage HK1414-RS-L271

Free Delivery in India | Lowest Global Shipping Charges

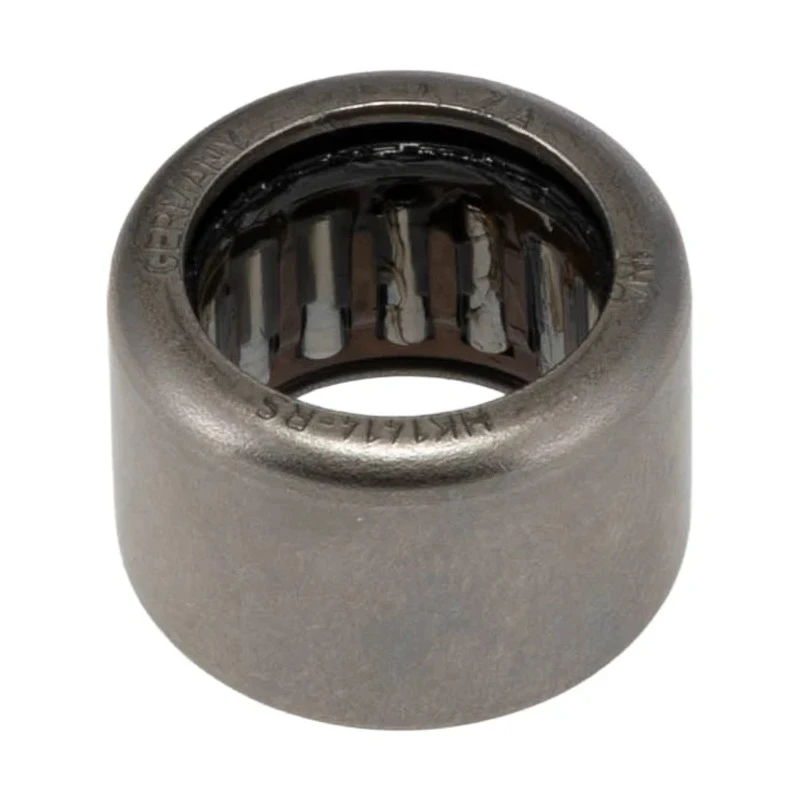

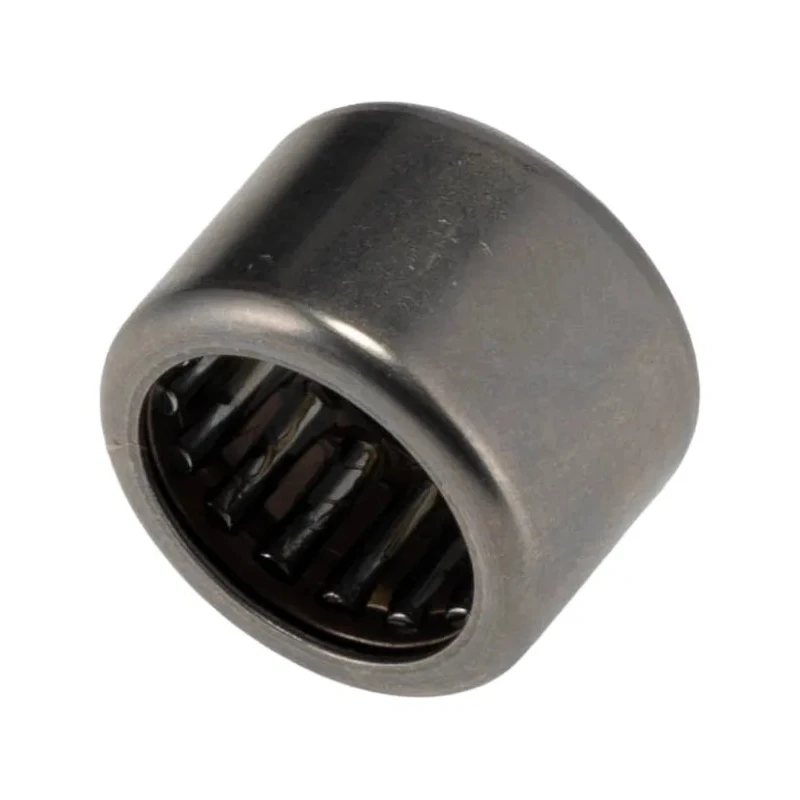

INA Roller Bearing Drawn Cup Needle 14 mm ID 20 mm OD Sealed Steel Cage HK1414-RS-L271



Category Roller Bearing Brand INA Condition New

Specifications

Country of Origin	India
Brand	INA
Model	HK1414-RS-L271
Series	HK-RS
Outside diameter	20mm
Inside Diameter	14mm
Limiting Speed	10500rpm
End Type	Sealed
Bore Type	Parallel
Bearing Type	Drawn Cup Needle
Cage Material	Steel
Standards/Approvals	DIN 618
Race Width	14mm
Static Load Rating	8.5kN
Dynamic Load Rating	7.1kN
Maximum Speed - Grease	10500rpm

Key Features

The bearing is designed for applications requiring very small radial section height due to its low cross-sectional height.
It is suitable where the housing bore cannot serve as a raceway for needle roller and cage assemblies.
This bearing supports high radial loads as a pure radial bearing.
The bearing runs directly on the shaft without an inner ring, allowing for compact arrangements.
It permits relatively high speeds with a maximum grease speed of 10,500 rpm.
The sealed end type ensures protection and longevity in demanding environments.
This roller bearing requires no additional axial retention, simplifying installation.
It helps to close off shaft ends in bearing positions for reliable performance.

Product Description

INA HK1414-RS-L271 roller bearing drawn cup needle is a precision-engineered component designed for industrial machinery applications requiring compactness and high performance. This bearing features a 14 mm inside diameter and a 20 mm outside diameter, with a sealed steel cage construction that enhances durability and protection against contaminants.

Particularly suitable for environments demanding very low radial section height, this bearing offers exceptional radial load capacity as a pure radial bearing. Its drawn cup needle design allows it to be used where the housing bore cannot act as an effective raceway, making it versatile for various mechanical setups.

The bearing runs directly on the shaft without needing an inner ring, which enables cost-effective and compact bearing arrangements. Its sealed end type provides efficient protection, ensuring longevity even under harsh industrial conditions. The steel cage material contributes to structural strength, maintaining the bearing's integrity during operation.

This product complies with DIN 618 standards and belongs to the HK-RS series. It supports a maximum grease-lubricated speed of 10,500 rpm, permitting high rotational velocities necessary in manufacturing, automotive, and mechanical industries.

The bearing has a 14 mm race width and parallel bore type. It is easy to mount and requires no additional axial retention, simplifying installation. Drawn cup needle roller bearings help achieve compact designs with economical arrangements.

Its design allows for closing off the shaft ends of bearing positions reliably. Supports static and dynamic loads of 8.5 kN and 7.1 kN respectively, ensuring stability under mechanical stress.

Ideal for use in industrial tools, mechanical machinery, manufacturing equipment, and automotive assemblies, the INA HK1414-RS-L271 bearing offers a balance of robust performance and compact design. This product is new, made with steel cage material, and designed for long service life in demanding applications.

Explore more INA Roller Bearings and mechanical components at EnvMart to find the ideal solutions for your industrial needs.
