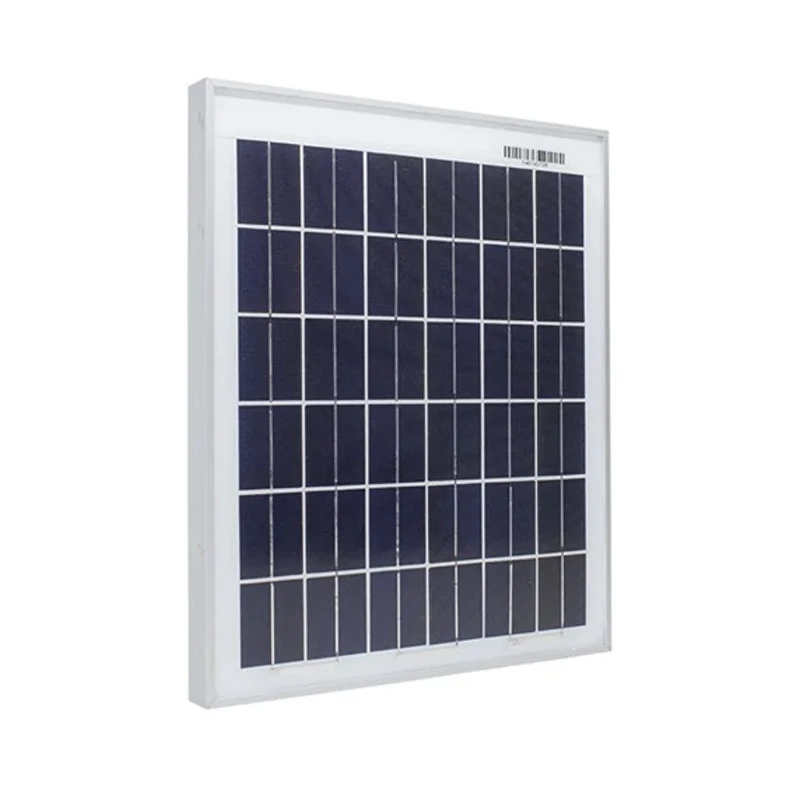

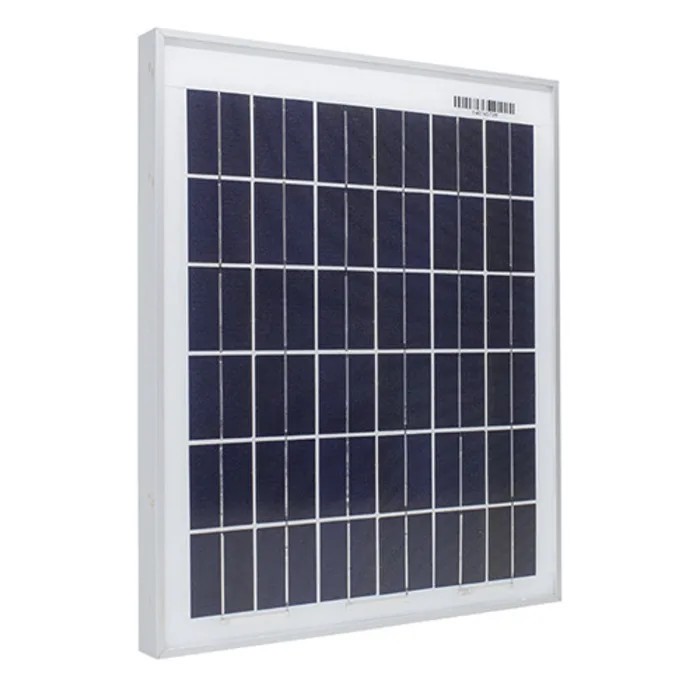

Phaesun Photovoltaic Solar Panel 20W, 22V Open Circuit Voltage, 36 Cells, IEC Certified 310168

Phaesun 310168 Photovoltaic Solar Panel 20W provides a robust and reliable solar energy solution for industrial and professional use. Designed with a scratch resistant anodised aluminium twin wall frame, this panel ensures durability and structural integrity for outdoor and field installations. The panel consists of 36 high-quality crystalline solar cells encapsulated with a multilayer high-resistance film and covered by solar glass, enhancing longevity and resistance to environmental stress.

This solar panel delivers a peak power output of 20W at an open circuit voltage of 22V, making it ideal for various renewable energy applications. It operates efficiently over a wide temperature range from -40°C minimum to 85°C maximum operating temperature, suitable for diverse climates and conditions.

The waterproof module junction box utilizes the same design as larger modules, ensuring reliable electrical connections and weather resistance. Compliance with multiple IEC standards (IEC 61730, IEC 61215, IEC 61701, IEC 60068-2-68) guarantees the panel meets rigorous safety and performance requirements.

Measuring 455mm in length, 380mm in width, and 34mm in depth, this compact panel is versatile for many installations. Its construction makes it a sustainable and renewable energy solution, reducing carbon footprint and boosting energy efficiency for commercial, agricultural, water treatment, and industrial solar power systems.

Constructed with scratch resistant anodised aluminium twin wall frame. Features 36 crystalline solar cells providing 20W peak power. Operates reliably from -40°C to 85°C maximum operating temperature. Includes waterproof junction box suitable for outdoor installation.

Complies with IEC 61730, IEC 61215, IEC 61701, and IEC 60068-2-68 standards. Panel dimensions: 455mm length, 380mm width, and 34mm depth. Open circuit voltage is 22V for effective solar power conversion. Renewable energy solution, supporting sustainability and energy efficiency.

This Phaesun solar panel is well-suited for industrial, commercial, agricultural, water treatment, and other professional solar energy projects, providing reliable, efficient, and environmentally responsible power generation. Explore more Solar Modules and renewable energy products on EnvMart for your industrial needs.
