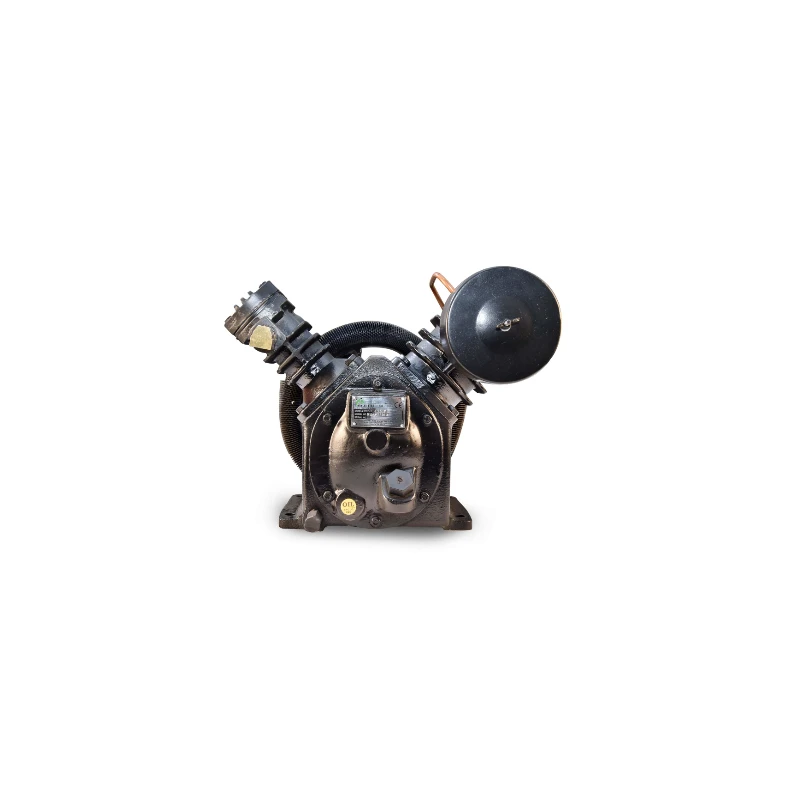

Two Stage IR Type Bare Pump 2hp
Specifications
| Warranty | 12 Months Warranty Against Manufacturing Defect |
|---|---|
| Brand | Maruti Compressor |
| Pressure | 12 BAR/ 175 PSI |
| Standard Accessories | Fly wheel (Pulley) Motor Pulley. |
| Model | MARUTI / 1234 / 2HP TWO STAGE PUMP |
| Piston Displacement | 7.46 cfm |
| LPM | 209 |
| No of Pistons | 2 |
| m3/min | 0.21 |
| Item Packaging | Wooden Crate Packing |
| Item SKU Number | LBB2hp |
| m3/hr | 12.67 |
| PUMP RPM | 750 |
| HP / KW | 2HP / 1.49/50Hz |
| Take Care | Change Oil (Enklo 220) Monthly / Keep Air Intake Filter Clean Daily. |
Key Features
- Made of Supreme Quality
- Durable Electrical Energy into Mechanical Energy
- Ingersoll Rand Type 30 Equivalent Model
Product Description
Two Stage IR Type Bare Pump 2hp Two Stage Lubricated Piston Tyre Bare Compressor Pump During the down stroke of the piston of a two-stage compressor, the air is forced into the first stage cylinder by atmospheric pressure through an inlet filter and an intake valve in the head of the compressor. When the piston reaches the bottom of the stroke, the intake valve closes. During the upstroke of the piston, the air is compressed, the discharge valve opens and the compressed air is delivered to the second stage through finned intercooler tubes where the heat created by the compressor is allowed to dissipate. The cooled compressed air is then forced into the second-stage cylinder via an intake valve. The second-stage cylinder fills with compressed air during the down stroke of the second-stage piston. During the upstroke of that piston, the air is compressed and released through a discharge valve to the air receiver tank. In one revolution of the crankshaft, the complete two-stage cycle is completed.
- Covered with 1 Year Warranty
- Rock-bottom Price with CE Quality Product.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Two Stage IR Type Bare Pump has a pressure rating of 12 BAR, which is equivalent to 175 PSI.
This pump features a piston displacement of 7.46 cubic feet per minute (cfm).
It is equipped with two pistons, allowing for efficient air compression in a two-stage process.
This model has a power rating of 2 horsepower (HP) or 1.49 kilowatts (KW) at 50Hz.
The standard accessories include a flywheel and a motor pulley.
The pump operates at a speed of 750 revolutions per minute (RPM).
The air delivery rate of this pump is 209 liters per minute (LPM).
It is packaged in a wooden crate for protection during transport.
Maintenance includes changing the oil (Enklo 220) monthly and keeping the air intake filter clean daily.
The pump comes with a 12 months warranty against manufacturing defects.
The airflow rate is 12.67 cubic meters per hour (m3/hr).
The model number of this pump is MARUTI / 1234 / 2HP TWO STAGE PUMP.
