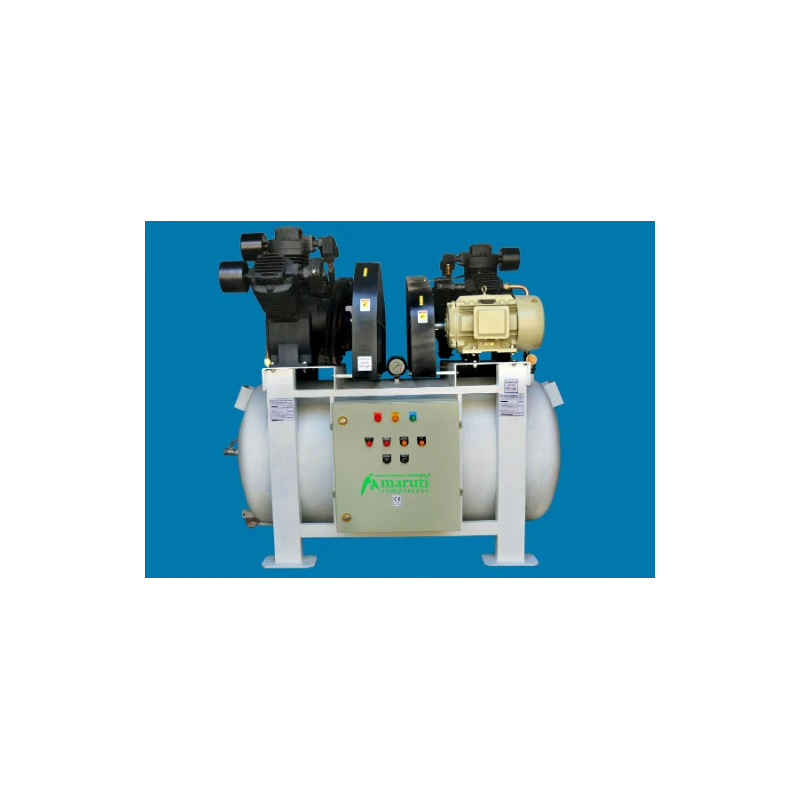

Oil Free Medical Air Compressor 40hp
Specifications
| Warranty | 12 Months Warranty Against Manufacturing Defect |
|---|---|
| Size | 30 x 60 inch 10mm shall 10mm disk |
| Model | MARUTI / 1015 /40 DUPLEX |
| MOTOR HP | 20+20 Equal to 40 CROMPTON MAKE |
| Air Tank Capacity | 750 LTR |
| Kw | 29.83 |
| m3/min | 4.56 |
| Ltr/Min | 4621 |
| m3/hrs | 277.27 |
| HZ | 50 |
| NO.OF POSITION | 3+3 |
| PISTON DISPLACEMENT IN CFM | 163.2 |
| PRESSURE PSIG | 10 BAR/145 PSI |
Key Features
- Made of Supreme Quality
- Oil Free Oil Less Non-Lubricated
- Medical Grade Air Compressor
- Durable Electrical Energy into Mechanical Energy
- Use in Pharmaceuticals, Food, Medical and surgical hospitals
Product Description
Oil Free Medical Air Compressor 40hpOil-Free Medical Air Compressor Systems During the down stroke of the piston of a two-stage compressor, the air is forced into the first-stage cylinder by atmospheric pressure through an inlet filter and an intake valve in the head of the compressor. When the piston reaches the bottom of the stroke, the intake valve closes. During the upstroke of the piston, the air is compressed, the discharge valve opens and the compressed air is delivered to the second stage through finned intercooler tubes where the heat created by the compressor is allowed to dissipate. The cooled compressed air is then forced into the second-stage cylinder via an intake valve. The second-stage cylinder fills with compressed air during the down stroke of the second-stage piston. During the upstroke of that piston, the air is compressed and released through a discharge valve to the air receiver tank. In one revolution of the crankshaft, the complete two-stage cycle is completed.
- Analytical, R&D Laboratories etc. Applications
- Covered with 1 Year Warranty.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Oil Free Medical Air Compressor features a motor power of 40 HP, which is achieved with two 20 HP motors from Crompton.
This model has an air tank capacity of 750 liters, allowing for significant storage of compressed air.
The compressor operates at a pressure of 10 BAR, which is equivalent to 145 PSI.
The piston displacement of this unit is 163.2 CFM, providing a substantial flow of compressed air.
It has an output flow rate of 4621 liters per minute, ensuring efficient air delivery for various applications.
The dimensions of this model are 30 x 60 inches with a thickness of 10 mm.
This air compressor operates at a frequency of 50 Hz, suitable for standard industrial applications.
The Oil Free Medical Air Compressor comes with a 12 months warranty against manufacturing defects.
This model is suitable for use in pharmaceuticals, food processing, medical, and surgical hospitals.
The air delivery rate of this compressor is 277.27 cubic meters per hour, making it efficient for high-demand environments.
It has a total of 6 positions, consisting of 3 positions for each of the two stages of compression.
The compressor utilizes finned intercooler tubes to dissipate heat created during the compression process, ensuring efficient operation.
