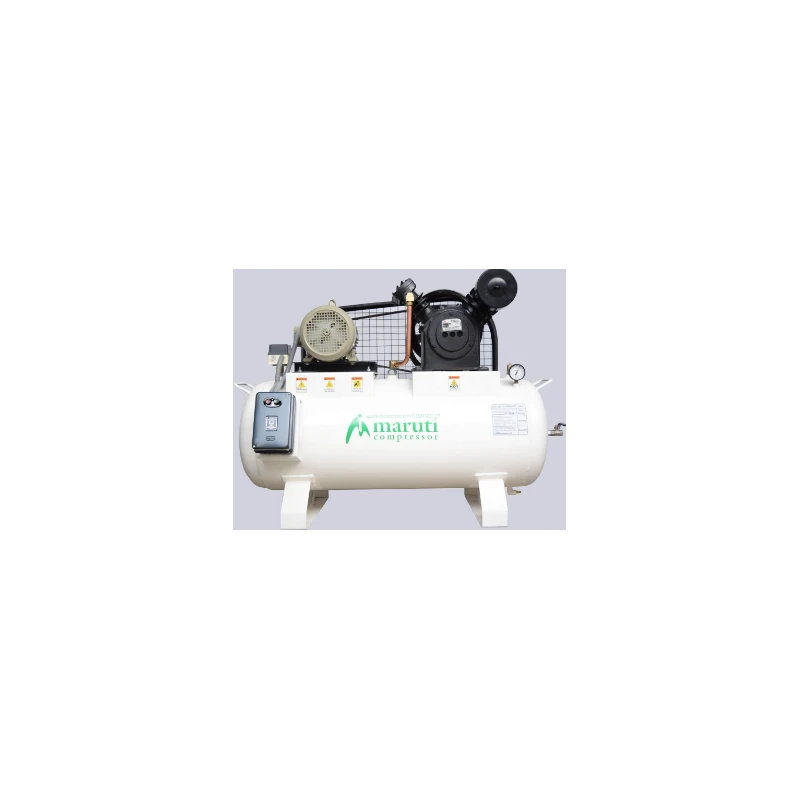

Oil Free Medical Air Compressor 5hp
Specifications
| Warranty | 12 Months Warranty Against Manufacturing Defect |
|---|---|
| Size | 18 x 48 inch 4mm shall 5mm disk |
| Model | Maruti 1242 |
| MOTOR HP | 5 Three Phase MARUTI MAKE |
| Air Tank Capacity | 200 Liters |
| Kw | 3.73 |
| m3/min | 0.43 |
| Ltr/Min | 439 |
| m3/hrs | 26.3 |
| HZ | 50 |
| NO.OF POSITION | 2 |
| PISTON DISPLACEMENT IN CFM | 15.5 |
| PRESSURE PSIG | 10.0 BAR/145 PSI |
Key Features
- Made of Supreme Quality
- Oil Free Oil Less Non-Lubricated
- Medical Grade Air Compressor
- Durable Electrical Energy into Mechanical Energy
- Use in Pharmaceuticals, Food, Medical and surgical hospitals
Product Description
Oil Free Medical Air Compressor 5hp Oil Free Oil-Free Medical Air Compressor Systems During the down stroke of the piston of a two-stage compressor, the air is forced into the first-stage cylinder by atmospheric pressure through an inlet filter and an intake valve in the head of the compressor. When the piston reaches the bottom of the stroke, the intake valve closes. During the upstroke of the piston, the air is compressed, the discharge valve opens and the compressed air is delivered to the second stage through finned intercooler tubes where the heat created by the compressor is allowed to dissipate. The cooled compressed air is then forced into the second-stage cylinder via an intake valve. The second-stage cylinder fills with compressed air during the down stroke of the second-stage piston. During the upstroke of that piston, the air is compressed and released through a discharge valve to the air receiver tank. In one revolution of the crankshaft, the complete two-stage cycle is completed.
- Analytical, R&D Laboratories etc. Applications
- Covered with 1 Year Warranty.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 5 horsepower motor, designed for three-phase operation.
The air tank capacity of this compressor is 200 liters.
It operates at a pressure of 10.0 BAR, which is equivalent to 145 PSI.
The piston displacement is 15.5 CFM.
The airflow output is 439 liters per minute.
The dimensions of this model are 18 x 48 inches with a thickness of 4mm to 5mm.
It operates at a frequency of 50 Hz.
This compressor comes with a 12 months warranty against manufacturing defects.
It is suitable for use in pharmaceuticals, food, medical, and surgical hospitals, as well as analytical and R&D laboratories.
The airflow capacity is 26.3 cubic meters per hour.
During the downstroke, air is drawn in and compressed in two stages, with heat dissipated through intercooler tubes before reaching the air receiver tank.
The model number is Maruti 1242.
