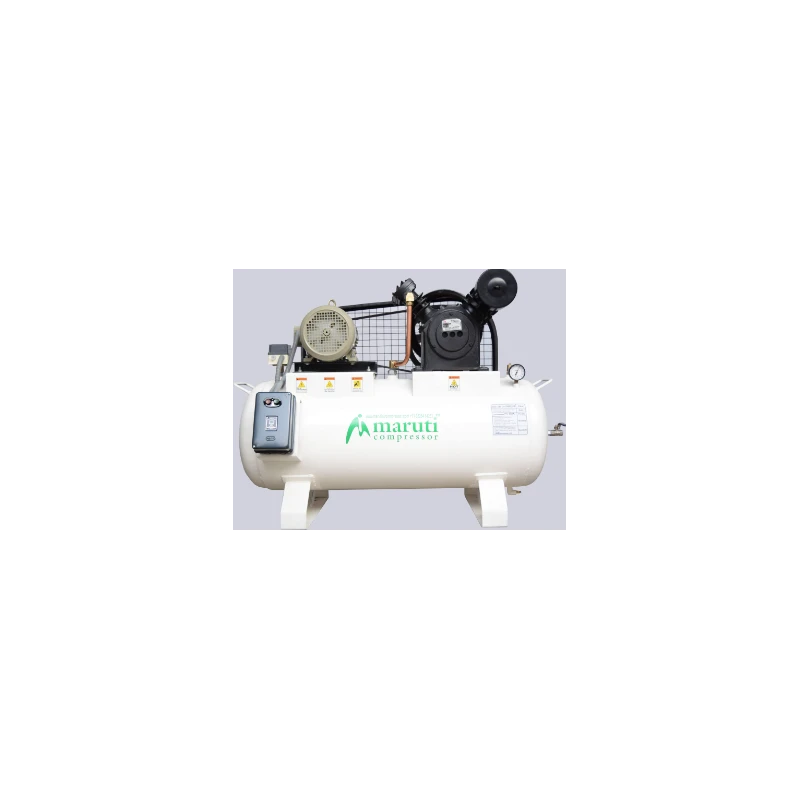

Oil Free Medical Air Compressor 3hp
Specifications
| Warranty | 12 Months Warranty Against Manufacturing Defect |
|---|---|
| Model | Maruti 1234 |
| MOTOR HP | 3 Three Phase MARUTI MAKE |
| Air Tank Capacity | 200 LTR. Size 18x 48 inch 4mm shall / 5mm disk. |
| Kw | 2.24 |
| m3/min | 0.3 |
| Ltr/Min | 303 |
| m3/hrs | 18.2 |
| HZ | 50 |
| NO.OF POSITION | 2 |
| PISTON DISPLACEMENT IN CFM | 10.7 |
| PRESSURE PSIG | 10.0 BAR/145 PSI |
| Peacking | wood peacking |
Key Features
- Made of Supreme Quality
- Oil Free Oil Less Non-Lubricated
- Medical Grade Air Compressor
- Durable Electrical Energy into Mechanical Energy
- Use in Pharmaceuticals, Food, Medical and surgical hospitals
Product Description
Oil Free Medical Air Compressor 3hp Oil Free Oil-Free Medical Air Compressor Systems During the down stroke of the piston of a two-stage compressor, the air is forced into the first-stage cylinder by atmospheric pressure through an inlet filter and an intake valve in the head of the compressor. When the piston reaches the bottom of the stroke, the intake valve closes. During the upstroke of the piston, the air is compressed, the discharge valve opens and the compressed air is delivered to the second stage through finned intercooler tubes where the heat created by the compressor is allowed to dissipate. The cooled compressed air is then forced into the second-stage cylinder via an intake valve. The second-stage cylinder fills with compressed air during the down stroke of the second-stage piston. During the upstroke of that piston, the air is compressed and released through a discharge valve to the air receiver tank. In one revolution of the crankshaft, the complete two-stage cycle is completed.
- Analytical, R&D Laboratories etc. Applications
- Covered with 1 Year Warranty.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a 3 horsepower motor, specifically a three-phase model from Maruti.
The air tank capacity is 200 liters, with dimensions of 18x48 inches and a thickness of 4mm for the shell and 5mm for the disk.
The maximum pressure output is 10.0 bar, which is equivalent to 145 PSI.
It has a flow rate of 303 liters per minute or 18.2 cubic meters per hour.
This model is suitable for use in pharmaceuticals, food processing, medical, and surgical hospitals, as well as analytical and R&D laboratories.
The piston displacement is 10.7 CFM.
It operates at 50 Hz frequency and requires a three-phase electrical supply.
It comes with a 12-month warranty against manufacturing defects.
The compressor uses finned intercooler tubes to dissipate heat created during the compression process.
The dimensions of the air tank are 18 inches in diameter and 48 inches in height.
This unit has two positions for air compression.
The kw rating of this compressor is 2.24 kW.
