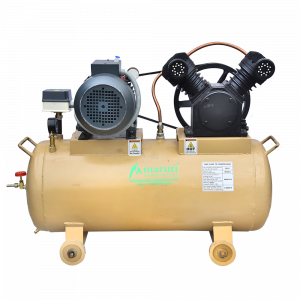

Air Compressor 2hp Single Phase 160ltr IR Type 30 1234

Name: Air Compressor 2hp Single Phase 160ltr IR Type 30 1234
Brand: ESPL
SKU: ABSMV
Price: 622.85 USD
Availability: InStock



SKU ABSMV Category Air Compressor Brand ESPL Condition New

Specifications

Warranty	12 Months Warranty Against Manufacturing Defect
Pressure	175 psi / 12.3 bar or kg
Standard Accessories	Automatic on-off pressure Control Switch Air Delivery Valve Pressure gauge Manual water Tank Drain valve Belt Guard Inlet Air Filter & Check Valve in Discharge line Safety Valve Fly wheel (Pulley) Motor Slide Rails V Belts.
Model	MARUTI 1234 2HP
Quality	CE Certified Export Grade Product.
MOTOR HP	2 Single Phase MARUTI MAKE
Piston Displacement	7.46 cfm
Kw	1.49/50Hz
LPM	209
No of Pistons	2
m3/min	0.21
Air Tank	160 LTR. Size 16 inch x 50 inch 4mm shall / 5mm disk.
Item Packaging	Wooden Crate Packing
Item SKU Number	TSC2HPSP160
m3/hr	12.67

Key Features

Made of Supreme Quality
Durable Electrical Energy into Mechanical Energy
Compatible with 20cfm Refrigerator Air Dryer

Product Description

Air Compressor 2hp Single Phase 160ltr IR Type 30 model 1234 During the down stroke of the piston of a two-stage compressor, the air is forced into the first stage cylinder by atmospheric pressure through an inlet filter and an intake valve in the head of the compressor. When the piston reaches the bottom of the stroke, the intake valve closes. During the upstroke of the piston, the air is compressed, the discharge valve opens and the compressed air is delivered to the second stage through finned intercooler tubes where the heat created by the compressor is allowed to dissipate. The cooled compressed air is then forced into the second-stage cylinder via an intake valve. The second-stage cylinder fills with compressed air during the down stroke of the second-stage piston. During the upstroke of that piston, the air is compressed and released through a discharge valve to the air receiver tank. In one revolution of the crankshaft, the complete two-stage cycle is completed

Covered with 1 Year Warranty
Rock-bottom Price with CE Quality Product.

Air Compressor 2hp Single Phase 160ltr IR Type 30 1234

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The compressor has a pressure rating of 175 psi, which is equivalent to 12.3 bar or kg.

This model has a piston displacement of 7.46 cfm.

The air tank has a capacity of 160 liters and dimensions of 16 inches by 50 inches, constructed with 4mm shell and 5mm disk.

This compressor is equipped with two pistons.

Included standard accessories are an automatic on-off pressure control switch, air delivery valve, pressure gauge, manual water tank drain valve, belt guard, inlet air filter, check valve in discharge line, safety valve, flywheel (pulley), motor slide rails, and V belts.

The compressor features a 2 HP single-phase motor.

The compressor operates at 1.49 kW and is designed for a 50Hz frequency.

This model comes with a 12 months warranty against manufacturing defects.

The air delivery capacity of this compressor is 209 liters per minute (LPM).

This air compressor is CE certified, indicating it meets European safety and environmental requirements.

The item is packaged in a wooden crate for protection during transport.

The model number of this air compressor is MARUTI 1234 2HP.
