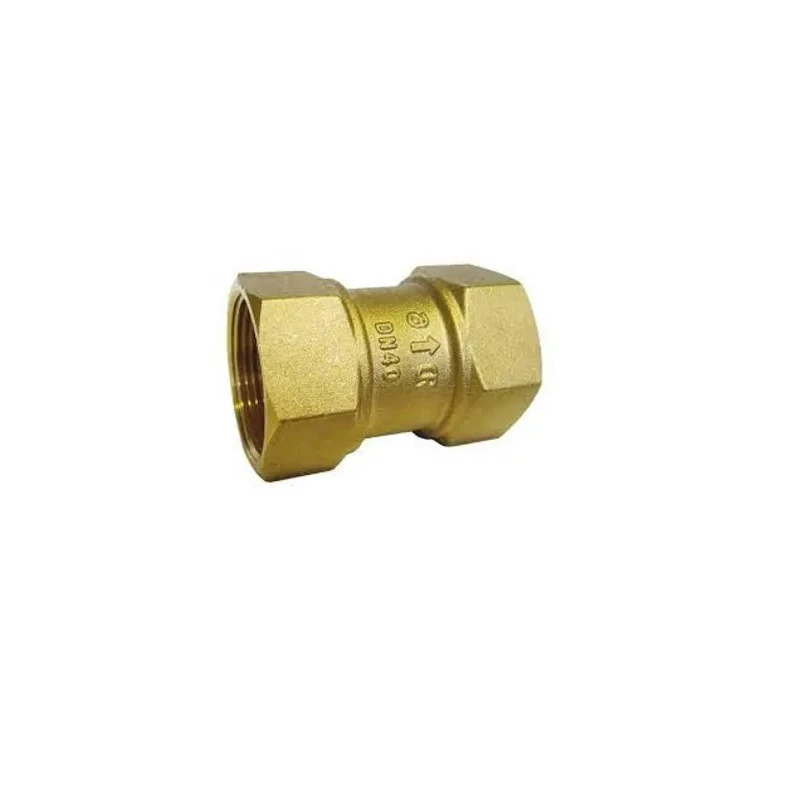

RS PRO Single Check Valve DZR Alloy BS EN 12165 CW602N Threaded 2 in 10 bar CW602N

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Single Check Valve DZR Alloy BS EN 12165 CW602N Threaded 2 in 10 bar CW602N

Name: RS PRO Single Check Valve DZR Alloy BS EN 12165 CW602N Threaded 2 in 10 bar CW602N
Brand: RS PRO
SKU: 299149
Price: 134.05 USD
Availability: InStock



Category Check Valve Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Body Material	Dzr Alloy Bs En 12165 Cw602N
Maximum Operating Pressure	10 bar
Outlet Connection Type	Threaded
Connections	F x F screwed iron
Model	Cw602N
Body	DZR Alloy
Maximum Operating Temperature	60°C
Sub Type	Single
End Connections	BS EN 10226
Standards/Approvals	BS EN 10226, BS EN 13959
RS Stock No.	242-2832Brand: RS PRO
Cartridge	Polypropylene
Inlet Port Size	2 in
Inlet Thread Standard	BS EN 10226
Outlet Thread Standard	BS
Min inlet pressure	0.1 bar
O Ring	EPDM
Max continuous temperature	60˚C

Key Features

The valve is constructed of durable DZR alloy BS EN 12165 CW602N material.
Threaded inlet and outlet connections are compliant with BS EN 10226 standards.
It supports a maximum operating pressure of 10 bar and a maximum continuous temperature of 60°C.
Prevents backflow, hydraulic shock, and flow reversal to protect plumbing systems.
Suitable for installation either horizontally or vertically.
Features EPDM rubber disc facing for enhanced sealing performance.
Conforms to BS EN 10226 and BS EN 13959 standards.
Ideal for domestic and commercial hot water systems.

Product Description

RS PRO CW602N Single Check Valve is engineered from DZR Alloy BS EN 12165 CW602N, ensuring corrosion resistance and durability for domestic and commercial water supply systems. Designed with a resilient seat and spring assistance, it provides rapid closure to prevent backflow, flow reversal, and hydraulic shock, thereby protecting pipeline integrity.

The valve’s inlet and outlet connection types are threaded, compliant with BS EN 10226 standards, facilitating easy installation with female-to-female screwed iron fittings. It can be installed both horizontally and vertically, providing flexibility in plumbing applications.

Operating efficiently up to a maximum pressure of 10 bar and temperature of 60°C, it features an EPDM rubber disc facing that enhances sealing and performance reliability. The check valve meets BS EN 10226 and BS EN 13959 standards and offers category 2 protection for backflow and back siphonage under the Water Supply (Water Fittings) Regulations 1999.

The polypropylene cartridge and DZR alloy body contribute to its robust construction while maintaining lightweight characteristics suitable for various installations. The valve supports a minimum inlet pressure of 0.1 bar and ensures consistent operation in water systems aiming to prevent contamination and damage.

Constructed of corrosion-resistant DZR alloy BS EN 12165 CW602N. Threaded inlet and outlet connections compliant with BS EN 10226. Maximum operating pressure of 10 bar and temperature of 60°C. Prevents backflow, hydraulic shock, and flow reversal risks.

Suitable for horizontal or vertical installation. Equipped with EPDM rubber disc facing for effective sealing. Complies with BS EN 13959 standard for check valves. Category 2 protection for backflow and back siphonage. Polypropylene cartridge enhances durability.

Designed for domestic and commercial hot water systems.

RS PRO products provide reliable solutions for plumbing and pipeline protection in industrial, commercial, and residential applications. This single Check Valve is an essential component to maintain water system safety, ensuring efficient fluid flow control and regulatory compliance. Explore the RS PRO range and other industrial valve products in the EnvMart catalog for your project needs.
