RS PRO DZR Copper Alloy BS EN 12420 CW602N Double Check Valve 28 mm Compression 10 bar CW602N

Free Delivery in India | Lowest Global Shipping Charges

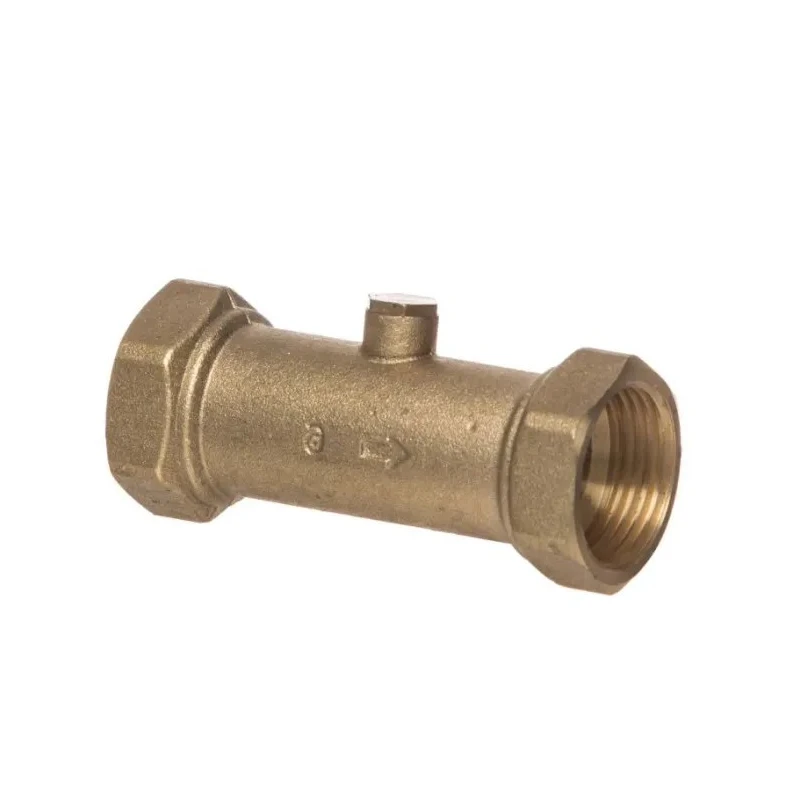

RS PRO DZR Copper Alloy BS EN 12420 CW602N Double Check Valve 28 mm Compression 10 bar CW602N

Name: RS PRO DZR Copper Alloy BS EN 12420 CW602N Double Check Valve 28 mm Compression 10 bar CW602N
Brand: RS PRO
SKU: 299142
Price: 94.66 USD
Availability: InStock



Category Check Valve Brand RS PRO Condition New

Specifications

Country of Origin	Italy
Brand	RS PRO
Body Material	Dzr Copper Alloy Bs En 12420 Cw602N
Maximum Operating Pressure	10 bar
Model	Cw602N
Body	DZR Copper Alloy
Standards	BS EN 13959
Maximum Operating Temperature	85°C
Sub Type	Double
Standards/Approvals	BS EN 13959, WRAS Approved
RS Stock No.	242-2826Brand: RS PRO
Cartridge	Plastic
Inlet Port Size	28 mm (Compression)
Conforms to	BS EN 13959
Olive	Brass
Min inlet pressure	0.1 bar
Test Plug	Nylon/Brass
O Ring	Nitrile/EPDM rubber
Compression Nut	Brass

Key Features

This double check valve prevents backflow and back-siphonage contamination effectively.
Constructed with DZR copper alloy body and plastic cartridge for longevity.
Suitable for domestic and commercial water supply installations.
Maximum operating pressure is 10 bar with a temperature limit up to 85°C.
Compact and lightweight design eases installation near water outlets.
Conforms to BS EN 13959 standard and WRAS approved for compliance and safety.
Installation follows flow direction indicated on the valve for proper operation.
Features include nylon/brass test plug, nitrile/EPDM rubber ‘O’ ring, and brass compression nuts and olives.

Product Description

RS PRO CW602N Double Check Valve 28 mm Compression 10 bar is manufactured using durable DZR copper alloy in accordance with BS EN 12420 standards, combined with CW602N copper quality for enhanced corrosion resistance and reliability in water systems.

This valve type is designed as a double check valve to prevent backflow and back-siphonage that could contaminate potable water supplies, critical for domestic and commercial plumbing installations.

The valve body is made of dezincification resistant (DZR) copper alloy, while cartridge components use plastic, ensuring both durability and smooth operation. Other parts like test plugs and ‘O’ rings are made of robust nylon/brass and nitrile/EPDM rubber materials respectively, and compression nuts plus olives feature brass construction.

It supports a maximum operating pressure of 10 bar and a maximum continuous temperature of 85°C, making it suitable for cold water systems including taps, showers, toilets, and commercial water supplies. The valve meets stringent compliance standards including BS EN 13959 and is WRAS approved.

Installation requires mounting with the flow direction arrow aligned with water flow, preferably installed horizontally for optimal function. This design consists of two check valves combined to provide a failsafe backup in case one valve malfunctions.

This double check valve prevents backflow and back-siphonage contamination effectively. Constructed with DZR copper alloy body and plastic cartridge for longevity. Suitable for domestic and commercial water supply installations.

Maximum operating pressure is 10 bar with a temperature limit up to 85°C. Compact and lightweight design eases installation near water outlets. Conforms to BS EN 13959 standard and WRAS approved for compliance and safety.

Installation follows flow direction indicated on the valve for proper operation. Features include nylon/brass test plug, nitrile/EPDM rubber ‘O’ ring, and brass compression nuts and olives. Ideal for industrial, commercial, and domestic plumbing, water treatment, HVAC, and manufacturing applications requiring reliable backflow prevention.
