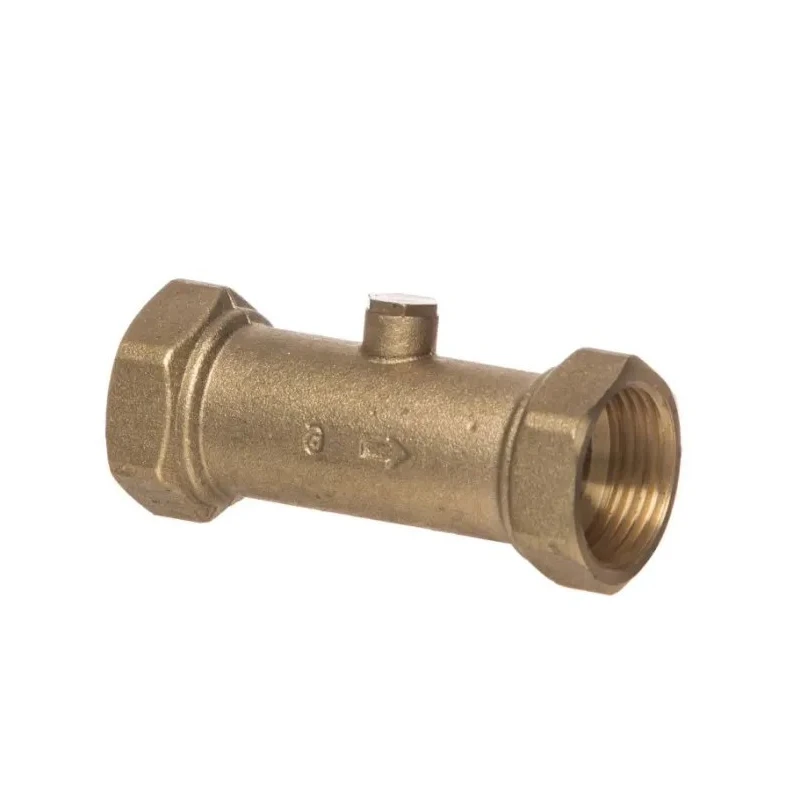

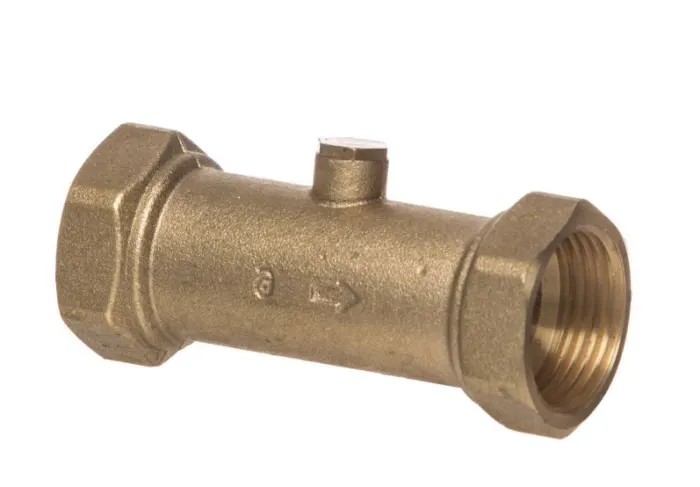

RS PRO Dzr Copper Alloy Bs En 12420 Cw602N Compression BS EN 10226-2 Double Check Valve 15 mm 10 bar CW602N

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Dzr Copper Alloy Bs En 12420 Cw602N Compression BS EN 10226-2 Double Check Valve 15 mm 10 bar CW602N

Name: RS PRO Dzr Copper Alloy Bs En 12420 Cw602N Compression BS EN 10226-2 Double Check Valve 15 mm 10 bar CW602N
Brand: RS PRO
SKU: 299141
Price: 18.76 USD
Availability: InStock



Category Check Valve Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Body Material	Dzr Copper Alloy Bs En 12420 Cw602N
Maximum Operating Pressure	10 bar
Inlet Connection Type	Compression
Model	Cw602N
Body	DZR Copper Alloy
Standards	BS EN 13959
Maximum Operating Temperature	85°C
Sub Type	Double
Standards/Approvals	BS EN 13959, WRAS Approved
RS Stock No.	242-2818Brand: RS PRO
Cartridge	Plastic
Inlet Port Size	15 mm
Inlet Thread Standard	BS EN 10226- 2
Conforms to	BS EN 13959
Olive	Brass
Min inlet pressure	0.1 bar
Test Plug	Nylon/Brass
O Ring	Nitrile/EPDM rubber
Compression Nut	Brass

Key Features

The body is made from DZR copper alloy as per BS EN 12420 ensuring corrosion resistance.
Compression type inlet connection conforms to BS EN 10226-2 standards.
Maximum operating temperature is 85 degrees Celsius suitable for various plumbing applications.
Supplied as a double check valve design providing failsafe backup against backflow contamination.
Compact, lightweight, and approved under BS EN 13959 and WRAS standards.
Ideal for domestic and commercial water supply protection installations.
Features brass compression nut and olive for secure fittings.
Includes plastic cartridge and nylon/brass test plug components for maintenance access.

Product Description

RS PRO CW602N double check valve is manufactured from DZR copper alloy conforming to BS EN 12420 standards, providing excellent resistance to dezincification and corrosion, making it highly reliable for water supply systems.

This 15 mm compression inlet valve is designed according to BS EN 10226-2 thread standards and supports a maximum operating pressure of 10 bar and maximum temperature of 85°C, suitable for both domestic and commercial plumbing applications.

The valve incorporates a double check design that prevents backflow and back-siphonage contamination, ensuring water supply protection with a failsafe backup should one internal valve fail.

Key components include a plastic cartridge, nylon/brass test plug, nitrile/EPDM rubber O-ring, brass compression nut, and olive, combining to deliver durability and convenience during installation and maintenance.

This valve is approved under BS EN 13959 and WRAS certifications, guaranteeing compliance with industry and water safety regulations. The body material is DZR copper alloy Bs En 12420 Cw602N, offering excellent corrosion resistance.

Compression inlet connection as per BS EN 10226-2 for ease of installation. Maximum operating pressure rated at 10 bar with a minimum operating pressure of 0.1 bar. Maximum continuous operating temperature is 85°C. Compact, lightweight design suited for domestic taps, basin taps, showers, and toilets.

Commonly installed in main cold-water supply lines for commercial and industrial applications. Installation must follow the flow direction marked on the valve body for proper operation. The RS PRO CW602N double Check Valve is an optimal solution for preventing water backflow contamination in industrial, commercial, and residential water treatment systems.
