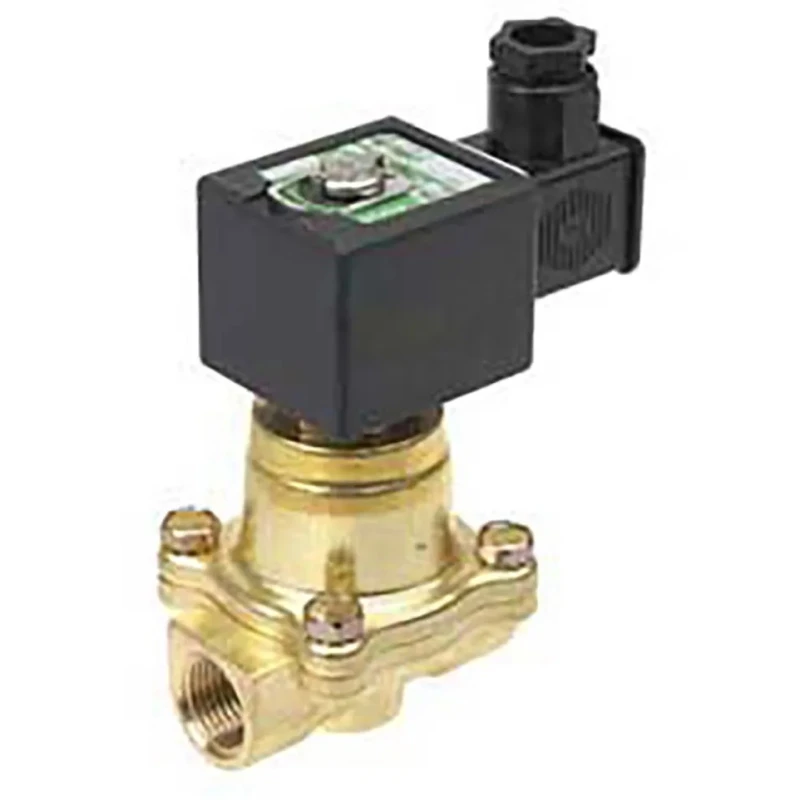

EMERSON ? ASCO Solenoid Valve 2 Port Normally Closed Brass Body 230V AC SCE222B004.230/50

Free Delivery in India | Lowest Global Shipping Charges

EMERSON ? ASCO Solenoid Valve 2 Port Normally Closed Brass Body 230V AC SCE222B004.230/50

Name: EMERSON ? ASCO Solenoid Valve 2 Port Normally Closed Brass Body 230V AC SCE222B004.230/50
Brand: EMERSON ? ASCO
SKU: 295501
Price: 2970.47 USD
Availability: InStock



Category Solenoid Valves Brand EMERSON ? ASCO Condition New

Specifications

Country of Origin	United Kingdom
Brand	EMERSON ? ASCO
Body Material	Brass
Maximum Operating Pressure	9 bar
Outlet Connection Type	Rp (ISO 7)
Model	SCE222B004.230/50
Series	222
Number Of Ports	2
Maximum Operating Temperature	40°C
Minimum Operating Temperature	-20°C
Orifice Diameter	25mm
Supply Voltage	230V ac
Standards/Approvals	ISO 4400 / EN 175301-803, EC Directives, UL, IEC 335, Pressure Equipment Directive 97/23/EC, CSA, form A
Default Valve Position	NC
Inlet Thread Standard	R
Maximum Opening Time	1000ms
Flow Factor Kv	12m³/h
Maximum Closing Time	1s

Key Features

Valves feature a durable brass body suitable for high pressure up to 9 bar.
Designed for a temperature range from -20°C to 40°C for reliable operation.
Valve orifice diameter is 25mm supporting flow factor Kv 12m³/h.
Includes servo assist for efficient and quick valve actuation.
Compliance with ISO 4400, EN 175301-803, UL, IEC 335, and Pressure Equipment Directive 97/23/EC standards.
Compact design minimizes heat radiation loss during operation.
DIN plug connection allows versatile installation in any position.
Maximum valve opening time is 1000ms and closing time is 1 second.

Product Description

EMERSON ASCO SCE222B004.230/50 solenoid valve is a high-quality 2 port normally closed (NC) valve designed for fluid power control in industrial applications such as steam and hot water systems. It operates on 230V AC power and features a durable brass body that withstands operating pressures up to 9 bar. The valve supports a temperature range from -20°C up to 40°C, making it suitable for various thermal applications.

This valve features a 25mm orifice diameter with a flow factor Kv of 12m³/h, enabling efficient fluid flow control. It is servo assisted to provide quick and reliable actuation, with a maximum opening time of 1000ms and a closing time of 1 second, providing precise control response. The valve's compact design reduces heat radiation loss and allows installation in any orientation, facilitated by a standard DIN plug connection.

EMERSON ASCO Solenoid Valves comply with multiple international standards including ISO 4400, EN 175301-803, UL, IEC 335, and the Pressure Equipment Directive 97/23/EC, ensuring safety and performance in demanding industrial environments. This product is manufactured in the United Kingdom to stringent quality standards.

Durable brass body ensuring longevity and corrosion resistance. Suitable for hot water and steam fluid control applications. Servo assist for enhanced valve performance and reduced actuation force. Meets major international standards and directives.

Compact and versatile design for a wide range of installation needs. Fast response times with specified maximum opening and closing durations.

This solenoid valve is ideal for industrial fluid power systems requiring reliable and precise control of steam and hot water. Its combination of high pressure tolerance, temperature range, and certified standards makes it suitable for HVAC, manufacturing processes, water treatment, and other industrial fluid handling applications.
