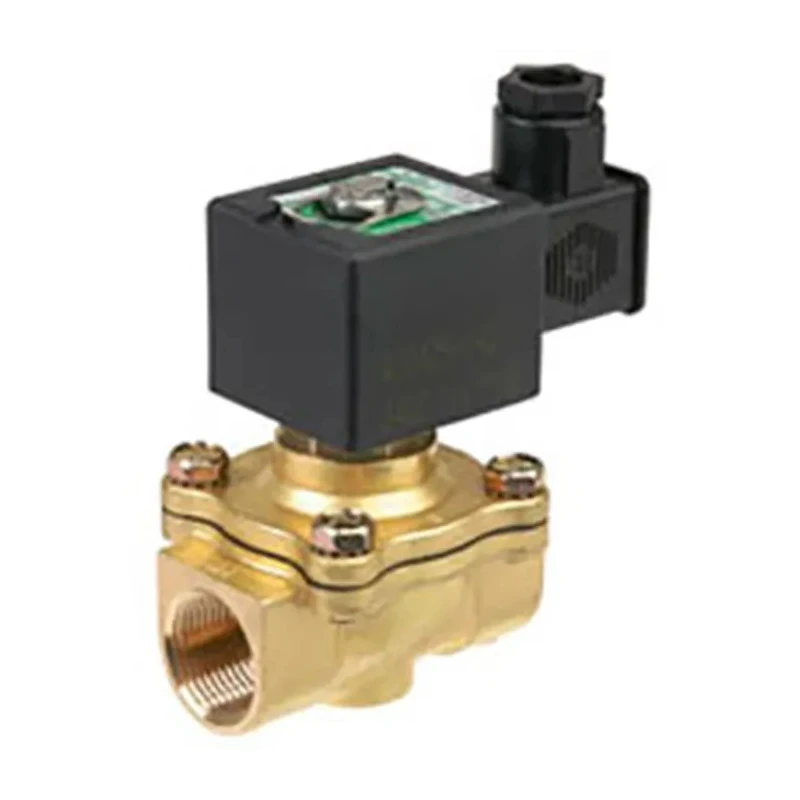

EMERSON ? ASCO Solenoid Valve 2 Port Normally Open Brass Body 24V AC E210C035-086

EMERSON ASCO E210C035-086 solenoid valve is a pilot operated, two-way valve engineered to provide reliable fluid control in industrial, mechanical, and pneumatic applications. Designed with a brass body, this valve is compact, lightweight, and suitable for mounting in any orientation. It operates at 24V AC supply voltage and has two ports for normal operation in air, inert gases, oil, and water media.

This solenoid valve features a 19mm orifice diameter and supports a maximum operating pressure of 9 bar. Its design includes zero-pressure operation, allowing use in systems with minimal or no pressure. The valve is normally open (NO) and offers a rapid response time of 120ms for both opening and closing, ensuring efficient system control.

Constructed to meet rigorous standards, including UL, ISO 4400 / EN 175301-803, EN 60529 (IP65), NEMA, EC Directives, Pressure Equipment Directive 97/23/EC, IEC 335, CSA, as well as EC and ATEX hazardous area certifications. This makes it ideal for industrial, HVAC, water treatment, and pneumatic systems requiring certified equipment.

The valve’s brass body provides excellent durability and corrosion resistance for extended service life. The DIN plug connection simplifies electrical installation and wiring. Its compact form factor allows ease of integration into various control systems without space constraints.

Applications include air and inert gas handling, oil flow control, and water system operations in industrial manufacturing, fluid power, automation, and laboratory settings. The valve body is labeled for specific circuit functions, but alternative circuit usage is possible following schematic reference.

Operates at 24V AC with 2 port normally open configuration suitable for pneumatic and hydraulic fluid systems. 19mm orifice diameter enables a flow factor Kv of 4.7 m³/h for effective fluid throughput. Durable brass construction designed for corrosion resistance and industrial environments.

Compact pilot operated design allows zero pressure operation and mounting in any position. Certified to multiple international standards and hazardous area approvals ensuring compliance and safety. Fast switching times with maximum opening and closing durations of 120 milliseconds.

Operating temperature ranges from -20°C to a maximum of 75°C, making it versatile for varied applications. Flow control suitable for air, inert gases, oil, and water handling in industrial process systems. Designed for long-term reliability in automation, manufacturing, HVAC, water treatment, and pneumatic systems.
