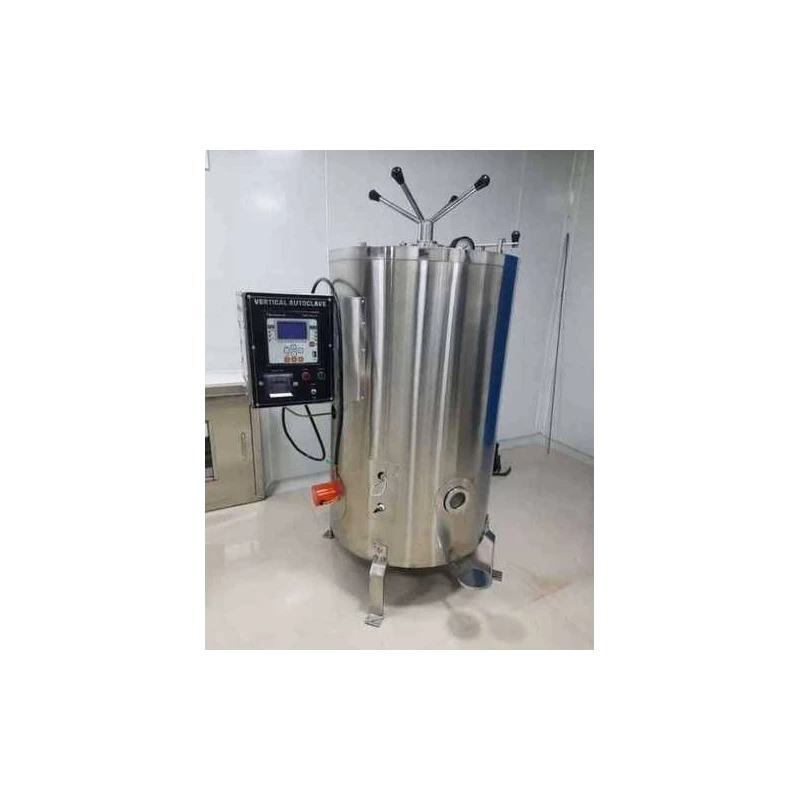

Vertical Autoclave Triple Walled Model

Name: Vertical Autoclave Triple Walled Model
Brand: ESPL
SKU: ABRHE
Price: 11.59 USD
Availability: InStock



SKU ABRHE Category Autoclave Brand ESPL Condition New

Specifications

Power Supply	220 Volts 50Hz
Working Pressure	15 to 20 psi
Working Temperature	121 Deg C to 125 Deg C
Model	Triple Walled Model
Optional Accessories	Fully stainless steel construction (GMP) Up to 134C temperature range PID temperature controller cum timer with alarm (buzzer) PLC with HMI interface with data logging 21 CFR Part 11 software Thermal Printer Lower water cut-off
Interior	SS 304 with silicon gasket
Timer	Mechanical timer
Standard fittings	Low water indicator Automatic pressure switch Pedal lifting device Steam release valve Water outlet valve Spring loaded safety valve Power cable with three pin top
Controller	Auto set to 15psi & 121 Deg C
Lid	SS 304
Basket	Not Required
Pressure display	Analog dial gauge
MOC Exterior	SS 304 (mirror finish)
No. of walls	Three
Hydraulic tested	Hydraulically Tested up to 40 psi (ASME Guideline)

Key Features

Stainless steel interior
Digital temperature indicator
Digital temperature Controller
ISI marked flange / immersion heating elements
Up to 121°C temperature range
Silicon rubber door gasket
Automatic pressure control switch

Product Description

Triple Walled Model, Vertical Autoclave Economy Model, Vertical autoclaves are also known as top loading sterilizers that come in cylindrical shape. These are widely used in hospitals, Operation Theater (OT), microbiology laboratory for sterilization of various medial and cultures. The working of vertical autoclave is simple to understand; to open, a radial locking mechanism is fitted at top of the lid; a foot lever (pedal) is attached at the bottom. User has to press the pedal and lift the lid.

Stainless steel basket
Reliable steam pressure gauges
Double or triple walled construction
Pedal for lid opening
Water level indicator
Water inlet & outlet valves

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The working temperature range of this model is between 121°C to 125°C.

It requires a power supply of 220 Volts at 50Hz.

The maximum working pressure for this vertical autoclave is between 15 to 20 psi.

The interior is made of SS 304 stainless steel with a silicon gasket.

Yes, it includes an automatic pressure switch for controlling pressure.

It includes a low water indicator, automatic pressure switch, steam release valve, and a spring-loaded safety valve.

Optional accessories include a PID temperature controller with timer and alarm, PLC with HMI interface, thermal printer, and a lower water cut-off feature.

The lid is operated using a radial locking mechanism and a pedal lifting device located at the bottom.

The exterior is constructed from SS 304 stainless steel with a mirror finish.

The mechanical timer is used to set the sterilization duration during the autoclave's operation.

Pressure is displayed using an analog dial gauge.

This model features a triple-walled construction for enhanced safety and performance.
