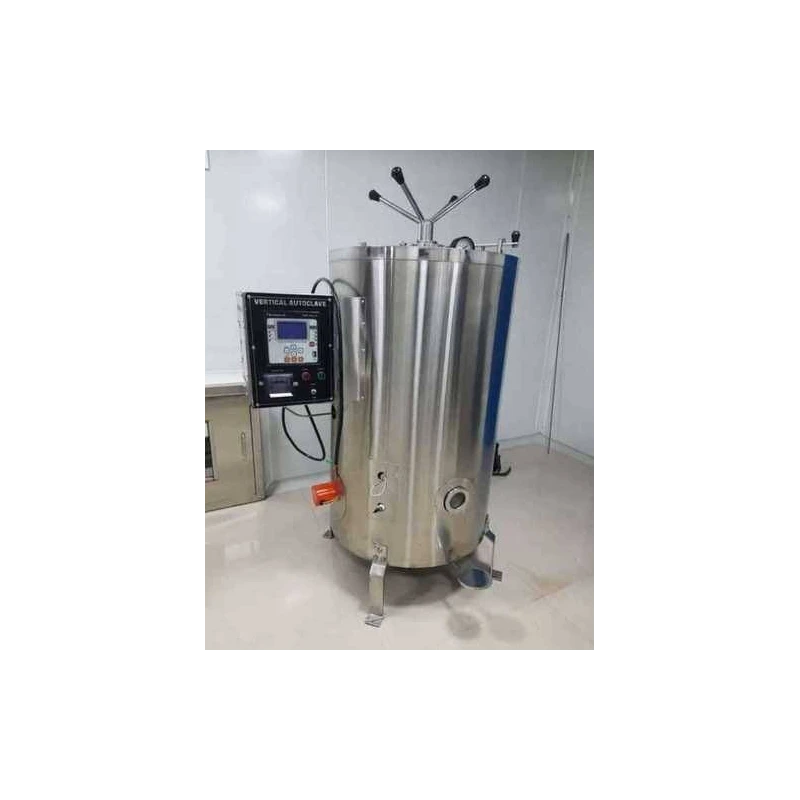

Vertical Autoclave Double Walled Model
Specifications
| Power Supply | 220 Volts 50Hz |
|---|---|
| Working Pressure | 15 to 20 psi |
| Working Temperature | 121 Deg C to 125 Deg C |
| Model | Double Walled Model |
| Optional Accessories | Fully stainless steel construction (GMP) Up to 134C temperature range PID temperature controller cum timer with alarm (buzzer) PLC with HMI interface with data logging 21 CFR Part 11 software Thermal Printer Lower water cut-off |
| Interior | SS 304 with silicon gasket |
| Timer | Mechanical timer |
| Standard fittings | Low water indicator Automatic pressure switch Pedal lifting device Steam release valve Water outlet valve Spring loaded safety valve Power cable with three pin top |
| Controller | Auto set to 15psi & 121 Deg C |
| Lid | SS 304 |
| Basket | Stainless steel basket |
| Pressure display | Analog dial gauge |
| MOC Exterior | SS 304 (mirror finish) |
| No. of walls | Two |
| Hydraulic tested | Hydraulically Tested up to 40 psi (ASME Guideline) |
Key Features
- Stainless steel interior
- Digital temperature indicator
- Digital temperature Controller
- ISI marked flange / immersion heating elements
- Up to 121°C temperature range
- Silicon rubber door gasket
- Automatic pressure control switch
Product Description
Double Walled Model, Vertical Autoclave Economy Model, Vertical autoclaves are also known as top loading sterilizers that come in cylindrical shape. These are widely used in hospitals, Operation Theater (OT), microbiology laboratory for sterilization of various medial and cultures. The working of vertical autoclave is simple to understand; to open, a radial locking mechanism is fitted at top of the lid; a foot lever (pedal) is attached at the bottom. User has to press the pedal and lift the lid.
- Stainless steel basket
- Reliable steam pressure gauges
- Double or triple walled construction
- Pedal for lid opening
- Water level indicator
- Water inlet & outlet valves
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The working temperature range of this model is from 121°C to 125°C.
It operates on a power supply of 220 Volts at 50Hz.
The maximum working pressure for this autoclave is between 15 to 20 psi.
The interior is made of SS 304 stainless steel and features a silicon gasket.
It includes a low water indicator, an automatic pressure switch, and a spring-loaded safety valve.
The lid features a radial locking mechanism and is opened using a foot pedal attached at the bottom.
This vertical autoclave is equipped with a mechanical timer.
Standard fittings include a steam release valve, water outlet valve, and a power cable with a three-pin top.
Optional accessories include a PID temperature controller, PLC with HMI interface, and a thermal printer.
The exterior is made of SS 304 stainless steel with a mirror finish.
Pressure is displayed using an analog dial gauge.
Yes, it is widely used in hospitals and microbiology laboratories for sterilization purposes.
