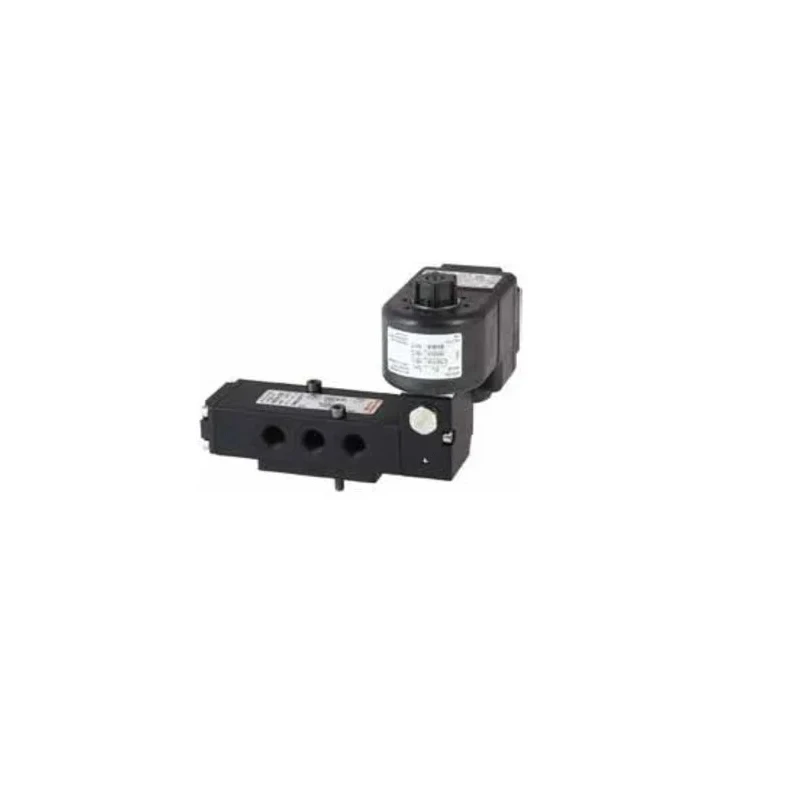

Norgren Spool Valve 3/2, 5/2 Solenoid/Spring NPT ISO G Series 97105 230 V AC 24 V DC 9710505000000000
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Voltage | 230, 24V ac |
| Brand | Norgren |
| Body Material | Anodised Aluminium |
| Maximum Operating Pressure | 8 bar |
| Mount Type | NAMUR |
| Series | 97105 |
| Number Of Ports | 4 |
| Maximum Operating Temperature | 50°C |
| Port Type | NPT, G 1/4 |
| Number of Positions | 2 |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -15°C |
| Actuation Type | Solenoid/Spring |
| Maximum Flow Rate | 750L/min |
| Hazardous Area Certification | PTB, ATEX |
| Standards/Approvals | ATEX, PTB |
| Connection Thread Standard | NPT, ISO G |
| Mount Pattern | NAMUR |
| Minimum Pilot Pressure | 1bar |
| Valve Function | 3/2, 5/2 |
| Electrical Connection Type | Connector DIN EN 175301 803 |
| Maximum Pilot Pressure | 10bar |
| Solenoid Type | Indirect |
Key Features
- Operates reliably at maximum 8 bar pressure and supports 750 L/min flow rate.
- Supports voltage operation at 230 V AC and 24 V DC for versatile applications.
- Incorporates nitrile rubber (NBR) seals resistant to oils, water, and abrasion.
- Equipped with NAMUR mount type and DIN EN 175301 803 electrical connector for easy installation.
- Designed for operation temperature range from -15°C up to 50°C.
- Features manual override with detent and exhaust air recirculation for operational flexibility.
- Includes single and double acting actuator compatibility with crossover-free switching.
- Functions as a 2-position valve with 3/2 and 5/2 valve functions.
Product Description
Norgren 9710505000000000 spool valve 3/2, 5/2 solenoid/spring is engineered for optimum control of compressed air flow in industrial pneumatic systems. This valve features NPT and ISO G 1/4 port types enabling easy integration with standard pneumatic setups while delivering precise actuation through indirect solenoid operation combined with spring return mechanism.
The valve body is constructed from durable anodised aluminium providing enhanced resistance to wear and corrosion. Sealing is ensured by high-quality nitrile rubber (NBR), protecting against oils, abrasions, and water ingress, thereby promoting longevity in demanding environments.
Operating pressures range from a minimum of 2 bar up to 8 bar, with maximum pilot pressures supported up to 10 bar and flow capability of 750 L/min. The valve supports dual voltages: 230 V AC and 24 V DC, accommodating integration flexibility. The NAMUR mount pattern and DIN EN 175301 803 connector type facilitate standardized mounting and electrical connections.
The valve functions with 2 positions and is suitable for both 3/2 and 5/2 valve configurations. Features include manual override with detent, exhaust air recirculation, and crossover-free switching ensuring reliable fail-safe operation with rest position defined during power failure (monostable design).
This spool valve is certified by ATEX and PTB standards, ensuring suitability for hazardous area operations in industrial environments requiring stringent safety compliance.
Typically used in pneumatic and fluid power applications across industrial, manufacturing, HVAC, and automation sectors, the Norgren 97105 series valve delivers dependable control with ease of maintenance and installation.
Operates at maximum 8 bar pressure and flows up to 750 L/min. Dual voltage support: 230 V AC and 24 V DC. Anodised aluminium body with nitrile rubber seals for durability. Manual override and exhaust air recirculation features included.
Certified to PTB and ATEX hazardous area standards. Explore Norgren spool valves and complementary pneumatic solenoid valve solutions in EnvMart’s industrial valve category for optimized pneumatic system performance.
Explore more products in our Pneumatic Solenoid Valves category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 8 bar.
It supports a maximum flow rate of 750 L/min.
This valve operates at dual voltages of 230 V AC and 24 V DC.
The operating temperature range for this model is from -15°C to 50°C.
It utilizes a NAMUR mount type for installation.
The body is made of anodised aluminium, and it features nitrile rubber (NBR) seals.
This model has a total of 4 ports.
It is certified to ATEX and PTB standards for hazardous area operations.
This valve uses an indirect solenoid actuation type combined with a spring return mechanism.
It functions as a 2-position valve with both 3/2 and 5/2 configurations.
It features a DIN EN 175301 803 electrical connector for easy integration.
The minimum pilot pressure required for this valve is 1 bar.
