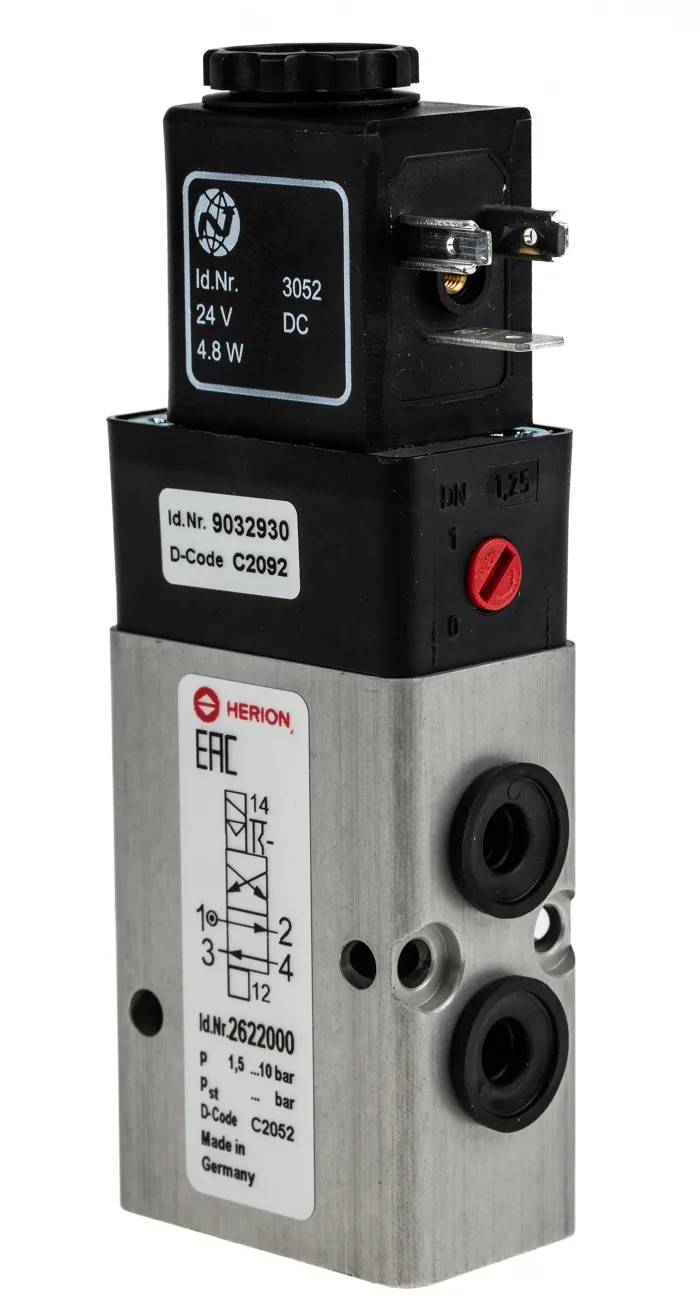

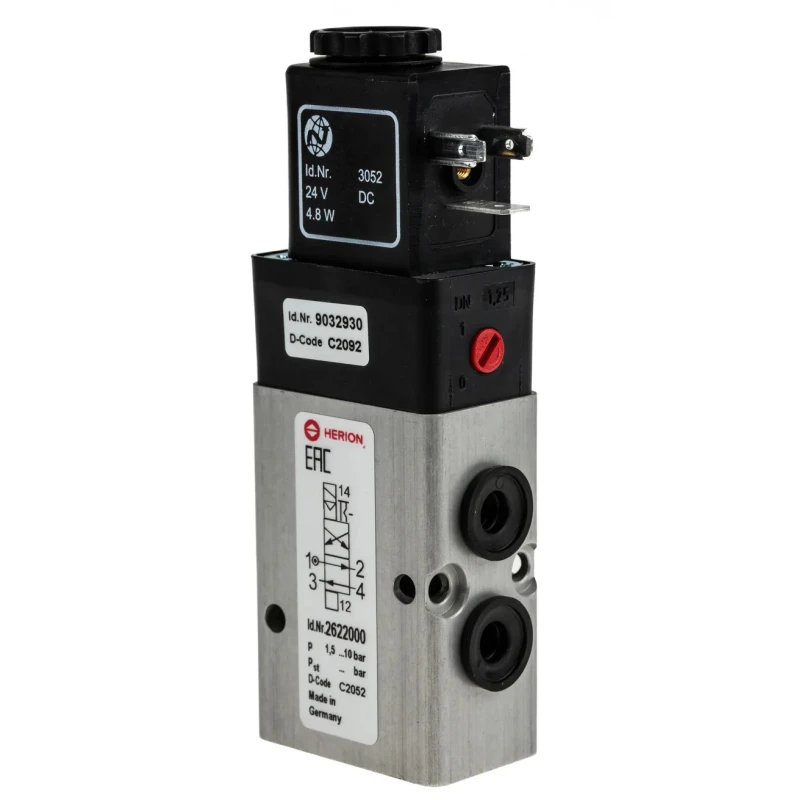

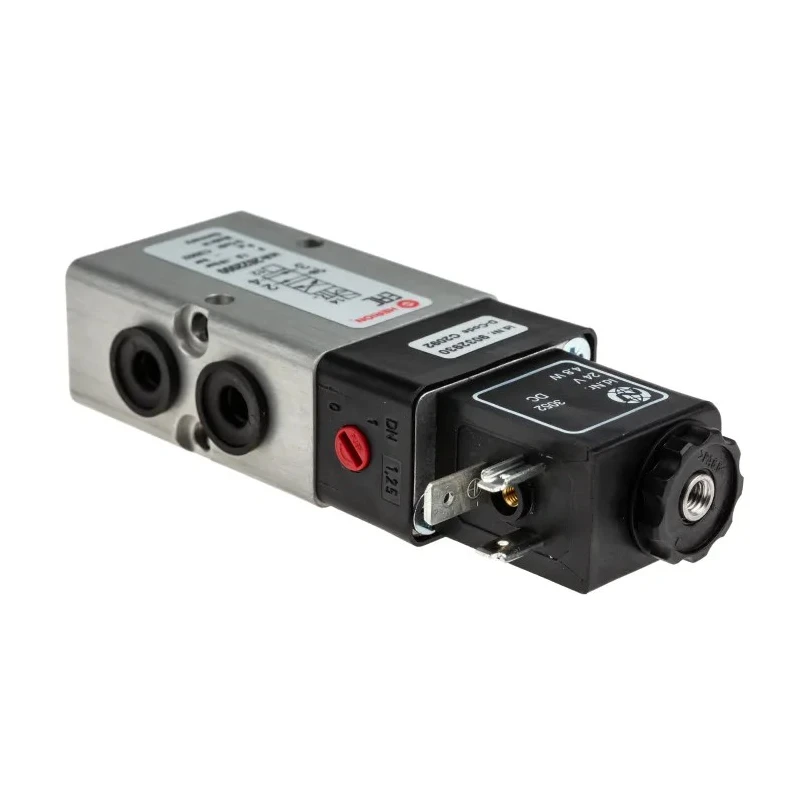

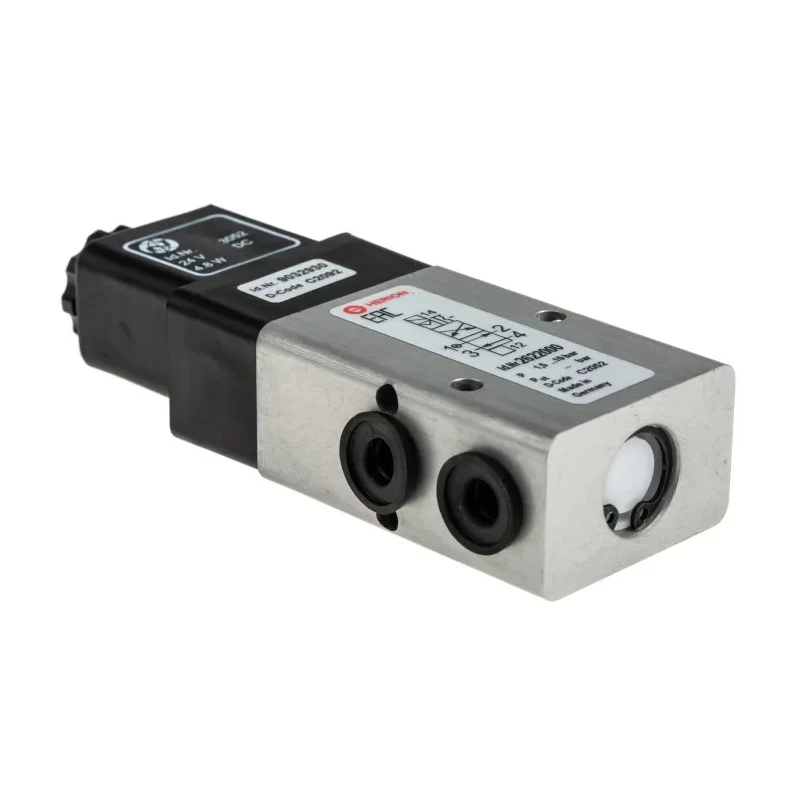

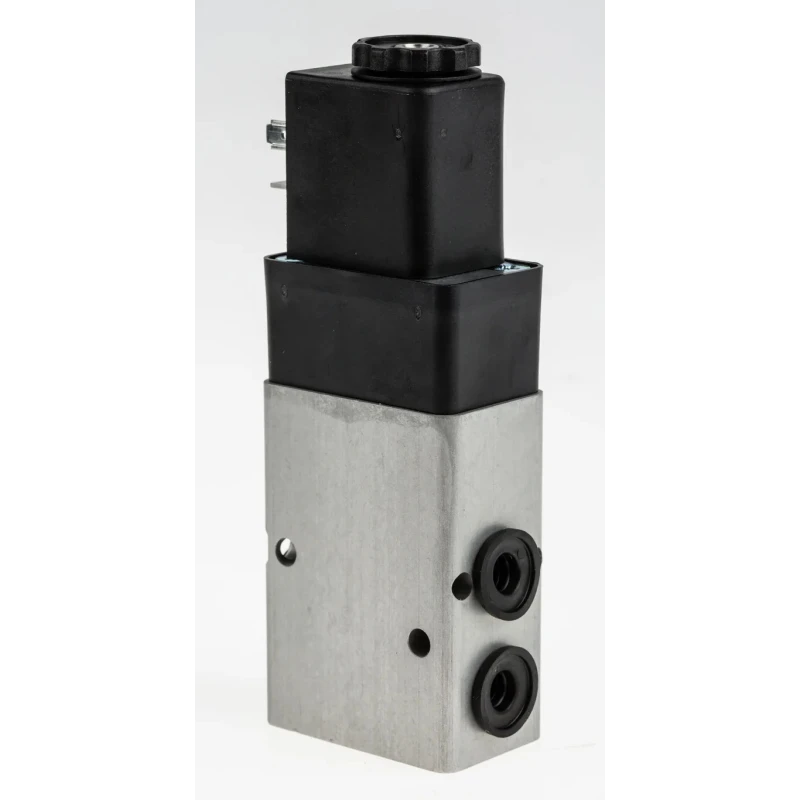

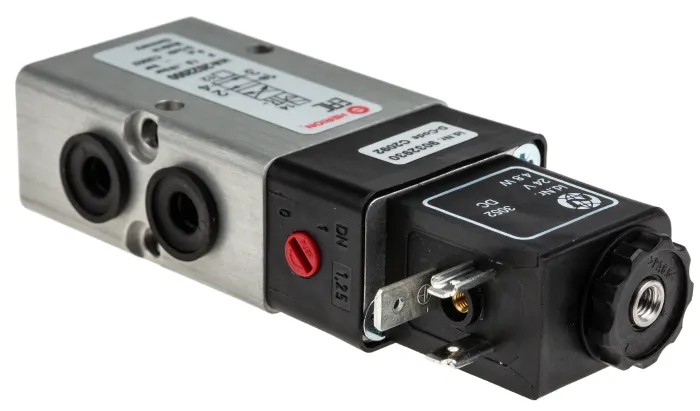

Norgren Pneumatic Solenoid Valve 4/2 Indirect Solenoid Solenoid/Spring G 1/8 24V dc 2622000305202400

Norgren 2622000305202400 Pneumatic Solenoid Valve 4/2 Indirect Solenoid is a robust industrial valve designed for precise control of airflow in pneumatically actuated equipment. Operating at 24V DC with a power consumption of 4.8W, this valve features a four-port, two-position spool design that enables directional control of compressed gases to actuators and cylinders.

The valve body is constructed from corrosion-resistant aluminium, with nitrile rubber (NBR) seals ensuring reliable airtight operation under varying pressure conditions. It supports a maximum operating pressure of 10 bar and a maximum pilot pressure of 10 bar, with a minimum pilot pressure of 1 bar. Its operational temperature range spans from -10°C to 50°C, making it suited for demanding industrial environments.

With a compact size of 112.5 mm in length, 40 mm width, and 25 mm height, it can be easily mounted inline using its fixed G 1/8 connection thread standard. The valve includes an inline solenoid type actuator and a DIN EN 175301 803 standard electrical connector for straightforward installation and integration into pneumatic control systems.

This valve is especially useful in industrial, manufacturing, and automation applications where precise pneumatic control is required, including pneumatic actuators, motors, turbines, diaphragms, and tubing. Furthermore, it holds hazardous area certifications including ATEX, IECEx, and FM, supporting safe use in potentially explosive environments.

The 26220 series valve complies with RoHS environmental standards, ensuring it meets current regulations for hazardous substances. This valve's 4-way, 2-position design allows effective control of pneumatic actuation components.

The aluminium housing and plastic pilot flange deliver strong corrosion resistance for extended service life. Nitrile rubber seals provide excellent abrasion and compression resistance, maintaining airtight seals over time.

Operating voltage of 24V DC with low power consumption makes it energy-efficient for continuous industrial use. Compact form factor favors installation in constrained spaces while maintaining performance. Certified for use in hazardous environments, ensuring operational safety and compliance.
