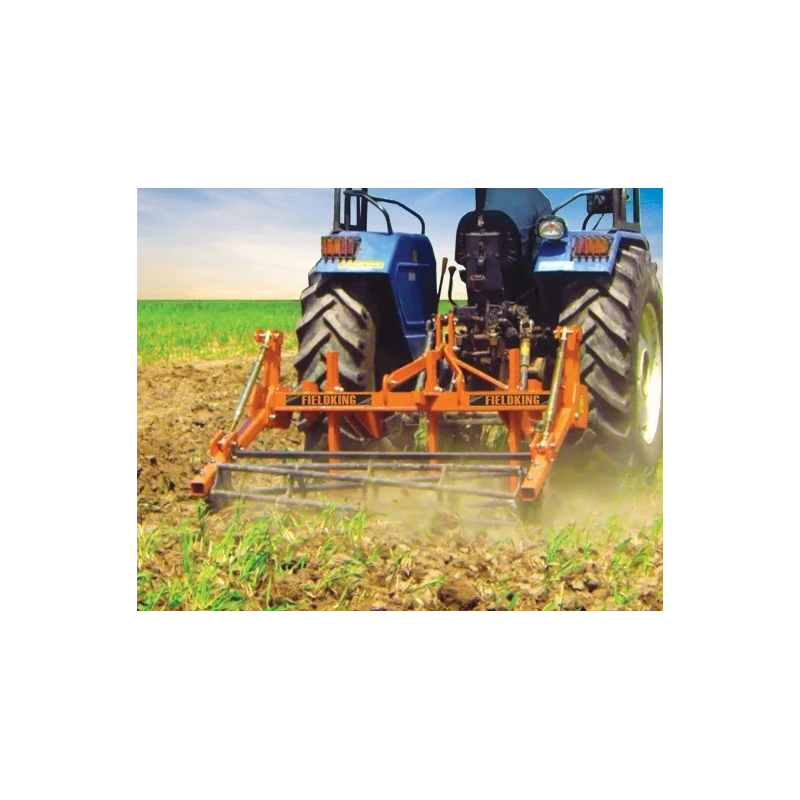

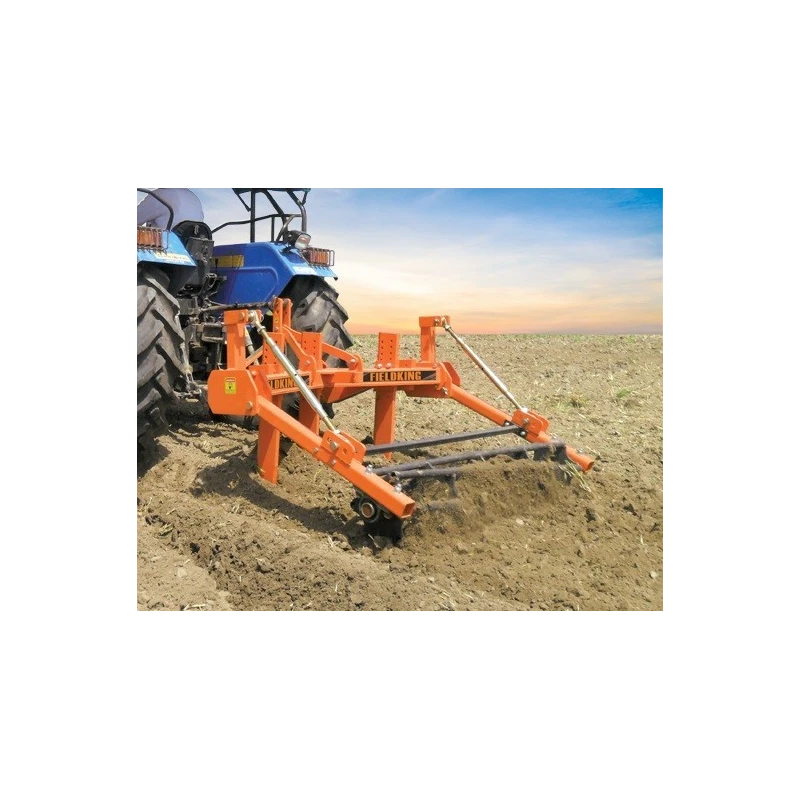

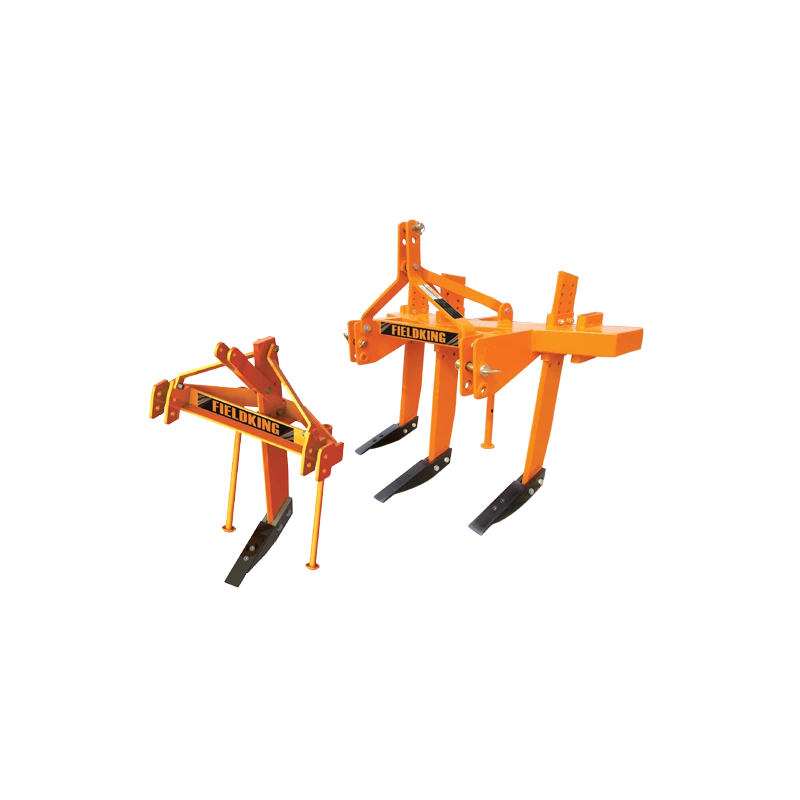

Sub Soiler 4 Tyne FKSS-5
Specifications
| Material | Mild Steel |
|---|---|
| Applications | Agriculture |
| Color | Orange |
| Model | FKSS-5 |
| Tractor Power (HP) | 100-135 & cat - III |
| Tyne (mm/inch) | 150/6 x 25 mm(T) |
| Length (mm/inch) | 1554/61 |
| Width (mm/inch) | 2510/99 |
| Tillage Width (mm/inch) | 1810/71 |
| Height (mm/inch) | 1422/56 - 1672/66 |
| No. of Tyne | 5 |
| Crumbler (mm/inch) | 50/2 x 12 mm (T) Flat |
| Crumbler Length (mm/inch) | 2510/99 |
| Tyne To Tyne Distance (mm/inch) | 550/22 |
| Working Depth(Max. mm/inch) | 550/22 |
| Weigth Without Crumbler (KG Approx.) | 570 |
| Weigth With Crumbler (KG Approx.) | 790 |
Key Features
- The sub soiler are deep tillage implements specially designed for breaking up hard pan layers and loosening the subsoil allowing better drainage, root growth and mineral osmosis.
- Optional wide range of roller/ crumbler available, which helps in breaking bigger lumps to smaller clods. Also it helps in depth control and steady run of the sub soiler.
Product Description
Sub Soiler, 5 Tyne, FKSS-5, A subsoiler is an agricultural implement used for deep tillage of the soil. It is designed to break up compacted soil layers and improve soil structure by loosening and aerating the subsoil. The subsoiler is typically used in areas where the soil has become compacted due to heavy machinery or livestock traffic, which can limit root growth and water infiltration.
- Adjustable depth & width of ploughing available for 2, 3 & 5 arm sub-soiler.
- Optional pipe layer attachment available for 1 arm sub soiler.
- Depth can be adjusted by top links.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum working depth of this model is 550 mm (22 inches).
It requires a tractor power of 100-135 HP and is compatible with category III hitch systems.
This model features 5 tynes for effective soil tillage.
The dimensions are approximately 1554 mm (61 inches) in length, 2510 mm (99 inches) in width, and it has a height range of 1422 mm (56 inches) to 1672 mm (66 inches).
This sub soiler is constructed from mild steel.
The tillage width of the FKSS-5 is 1810 mm (71 inches).
It weighs approximately 570 kg without the crumbler attachment.
An optional pipe layer attachment is available for use with the 1 arm sub soiler variant.
The crumbler has a size of 50 mm x 12 mm (T) flat.
The distance between tynes is 550 mm (22 inches).
This model is specifically designed for agricultural applications, particularly for deep tillage.
The Sub Soiler 4 Tyne FKSS-5 is colored orange.
