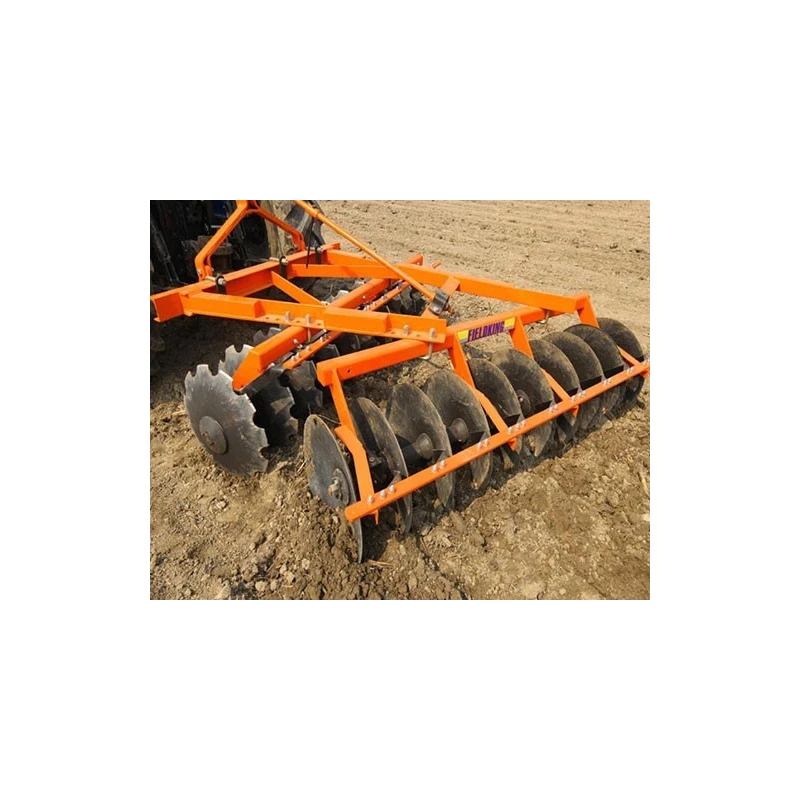

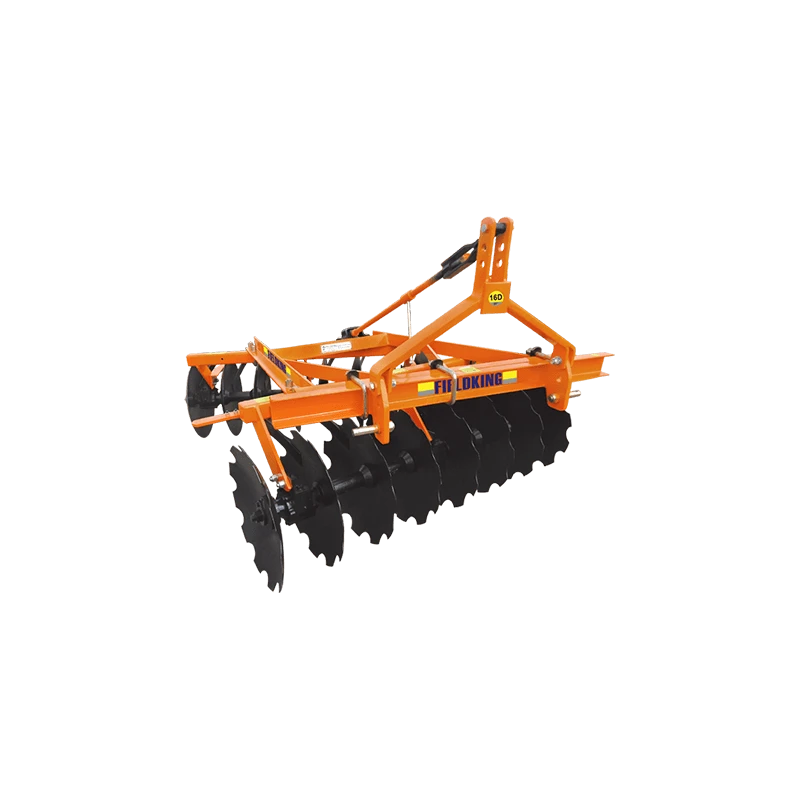

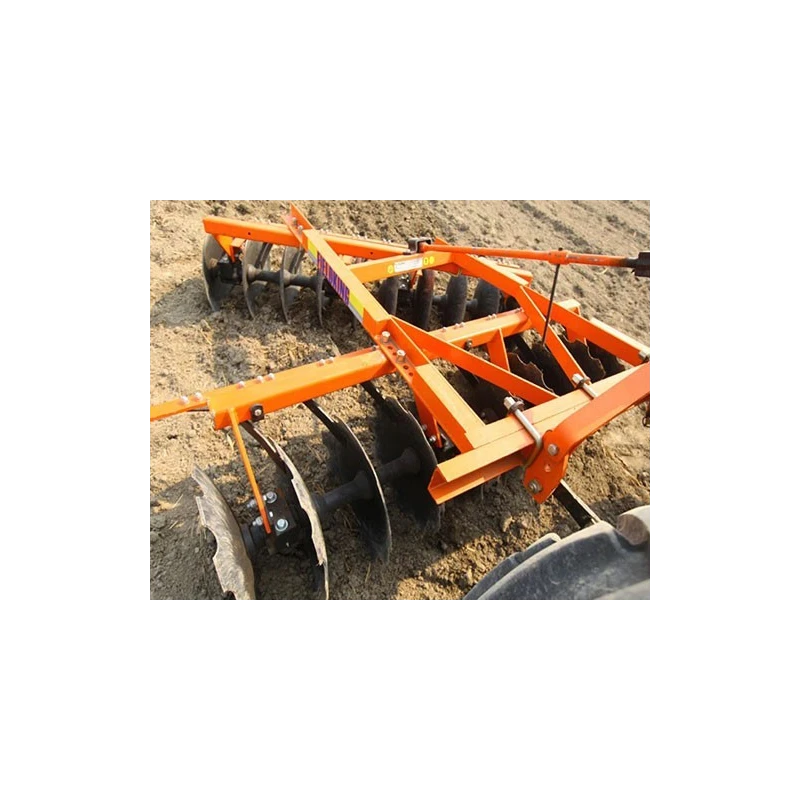

Mounted Offset Disc Harrow 24 Disc FKMODH-22-24
Specifications
| Material | Mild Steel |
|---|---|
| Applications | Agriculture |
| Color | Orange |
| Model | FKMODH-22-24 |
| Weight | 731 Kg |
| Type of disc | Notched Disc In Front Gang & Plain Disc In Rear Gang |
| Tractor Power (HP) | 90- 100 |
| No. of Disc | 24 |
| Bearing Hubs | 8 |
| Disc Diameter(mm) | 508 X 3 T (20 inch) or 560 X 4 T (22 inch) |
| Type Of Disc Harrow | Tractor Disc Harrow |
| Types of Bearing | Agri Hub |
| Distance Between Disc (mm/inch) | 228/9 |
| Tillage Width (mm/ inch approx.) | 2718 /99 |
| Gang Axle/Bolt (mm/inch) | 28/1.1 (Solid Sq. Rod) |
Key Features
- Used in open field working for the superficial ploughing, for the shattering of clods, preparation of soil for sowing, burial of organic substances & remains.
- It can be used in light and medium soil.
Product Description
Mounted Offset Disc Harrow, 24 Disc, FKMODH-22-24, Disc harrows are farming implements used to prepare the soil for planting or sowing by breaking up the clods and surface crusts, thus improving soil granulation and destroying the weeds. They consist of concave cutting blades (disks), mounted on a common shaft, that form a gang
- High quality boron steel disc with 48~52 HRC hardness.
- Tillage depth of the harrow is 127~178 mm.
- Easily transportable - as it gets easily attached and mounted.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tillage depth of the Mounted Offset Disc Harrow FKMODH-22-24 ranges from 127 mm to 178 mm.
This model features a total of 24 discs.
It uses notched discs in the front gang and plain discs in the rear gang.
The FKMODH-22-24 requires a tractor power of 90 to 100 HP.
This unit weighs 731 kg.
The tillage width of this harrow is approximately 2718 mm (99 inches).
The harrow is made from mild steel, ensuring it is suitable for agricultural applications.
The discs have a diameter of either 508 mm (20 inches) or 560 mm (22 inches).
It is easily transportable as it can be easily attached and mounted to a tractor.
The distance between the discs is 228 mm (9 inches).
This harrow is equipped with 8 Agri Hub bearing hubs.
It is designed for agricultural applications, specifically for superficial ploughing and soil preparation for sowing.
